6.

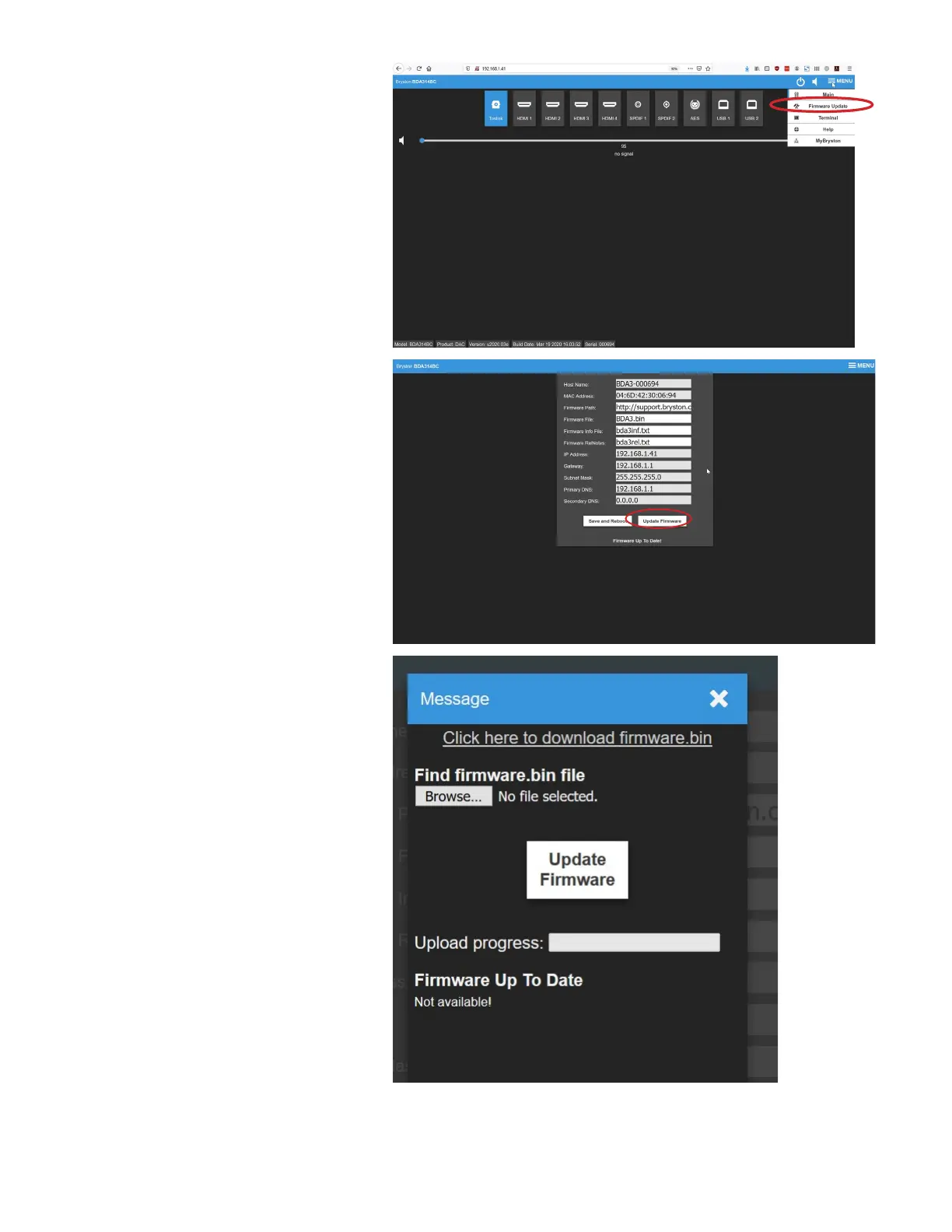

Navigate to le upload
Click the menu in the top right corner,
then Firmware Update
7.
Click Update Firmware
8.
Navigate to le upload
Click Browse or Choose File. Select
the le downloaded in step 1
BDA3_2020_06C_OldMB.bin
Then click Update Firmware.
The front power LED will blink green
while uploading, blink yellow while
programming, then go solid yellow
with all input LEDs green.
The unit will reboot itself and all input
LEDs will go green again once more
briey. When the front power LED is
green and only one input LED is lit,
you can proceed.

Other manuals for Bryston BDA-3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Bryston BDA-3 and is the answer not in the manual?

Bryston BDA-3 Specifications

General IconGeneral
Weight12 lbs
JitterBelow measurable levels
Signal to Noise Ratio>120dB
Digital Inputs2 x AES/EBU
Analog OutputsXLR, RCA
Supported FormatsPCM, DSD
HDMI AudioYes
ControlRS-232, IR
Dimensions17 x 2.75 x 11.25 inches
Frequency Response20 Hz to 20 kHz ±0.1dB
Output Impedance100 ohms
Digital to Analog ConverterAKM 4490
Output Level4V RMS (XLR), 2V RMS (RCA)
