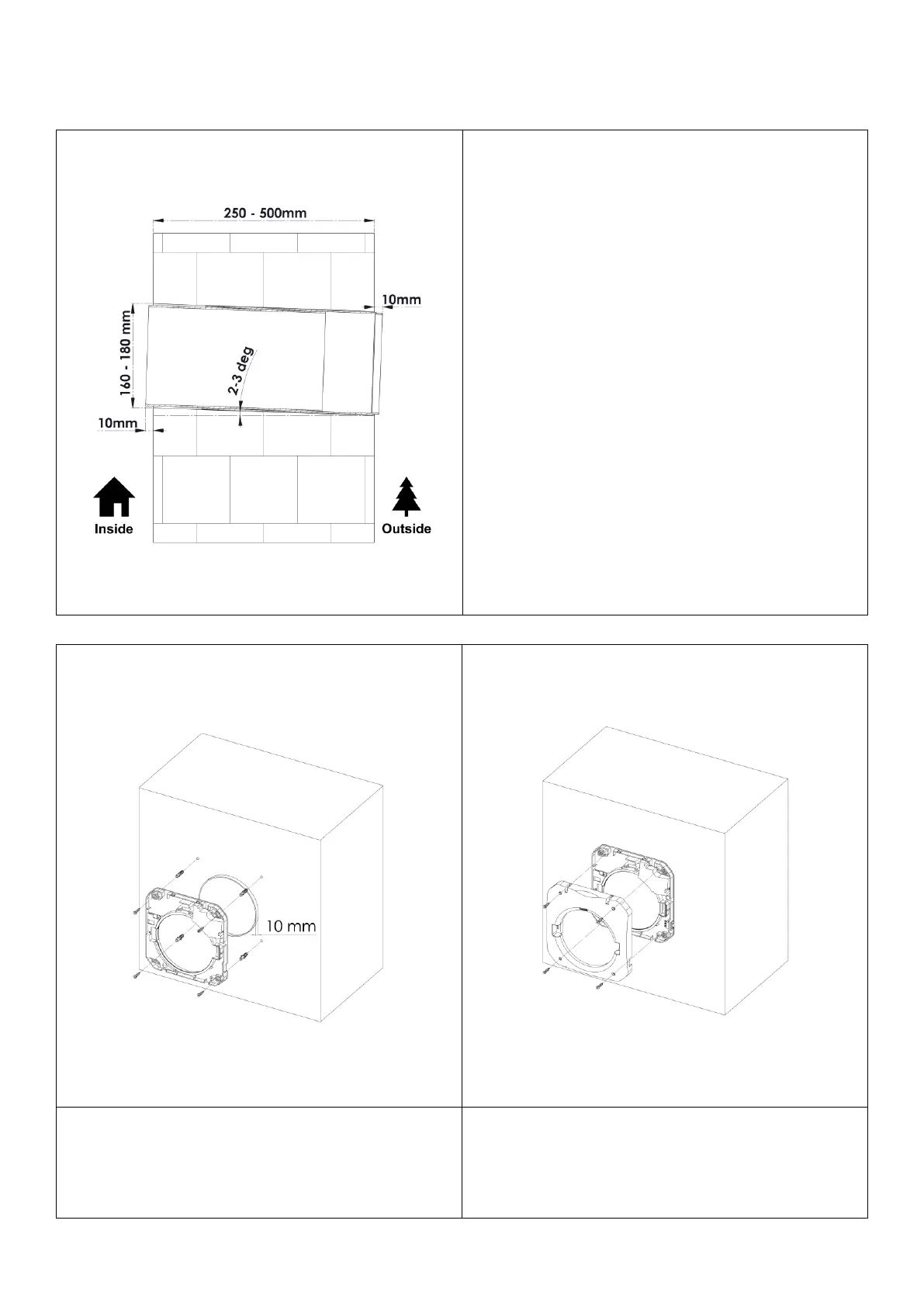

For the installation of BSK Zephyr decentralized
heat recovery device, a hole must be drilled on a
wall facing the exterior with the dimensions
indicated in the figure.
In order for the condensation water to flow
outwards, the hole must be drilled with an outward
slope of about 2-3 degrees.
After the wall is drilled, the telescopic pipe can be
placed inside. Adjust the length of the telescopic
pipe so that the ends stick out about 10mm from
the wall.
Secure the telescopic pipes using foam or cement
to fill the hole around. Make sure that the pipe is
stable and does not move after installation.
1. Align the inner wall fixture part with the 10mm
protrusion of the telescopic pipe part. Drill 4
holes then insert dovels and screw the part on
to the wall.
2. After making the electrical power connection
mount the inner cover piece on the wall fixture
part and then screw it into its place.
