DESCRIPTION

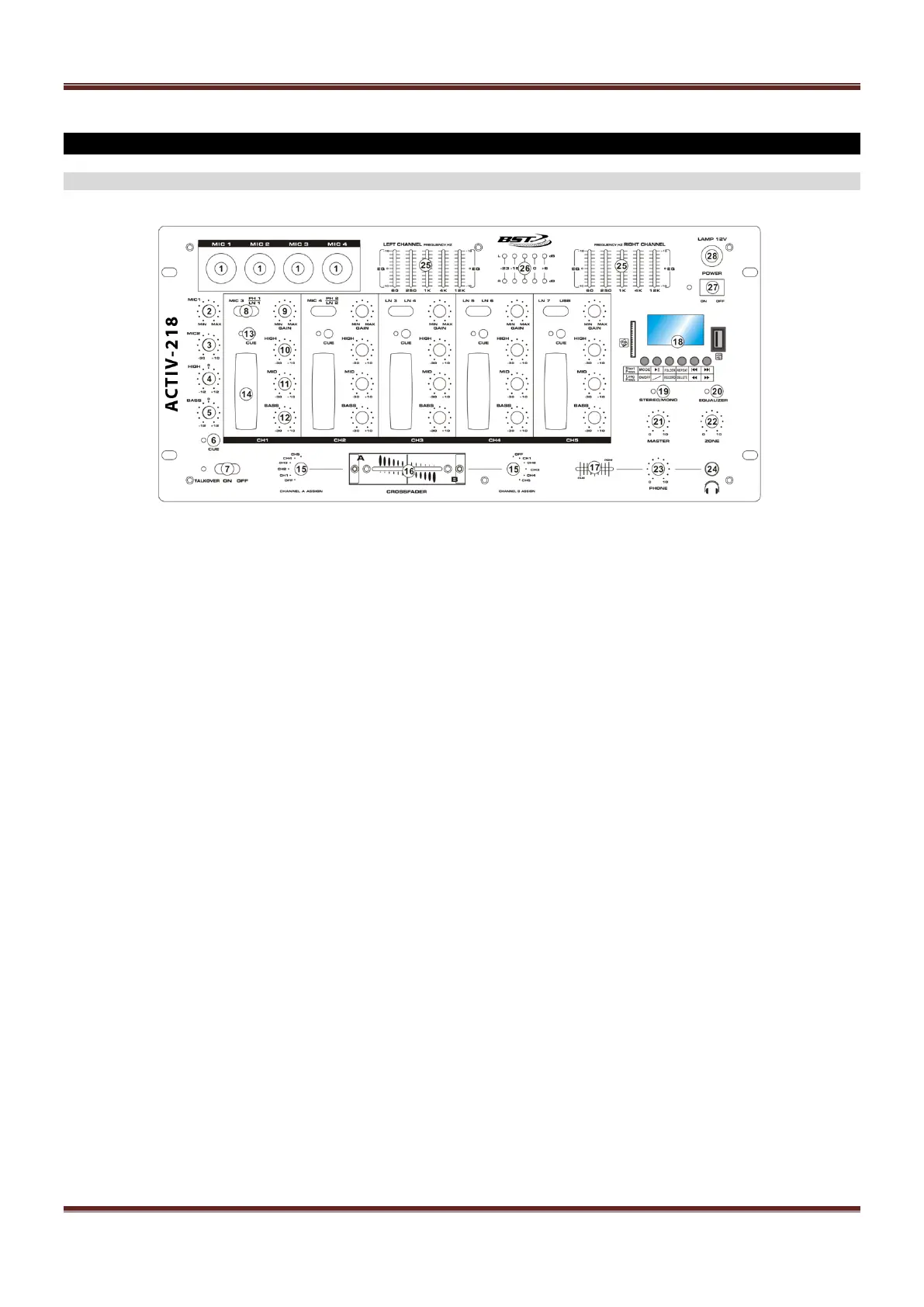

FRONT PANEL
1. MIC 1, 2, 3 AND 4 INPUTS
Connect on these sockets your microphones
2. MIC 1 LEVEL CONTROL
Correct setting of the controls for MIC 1 input GAIN is crucial for getting a good, strong signal without noise or distortion.
3. MIC 2 LEVEL CONTROL
Correct setting of the controls for MIC 2 input GAIN is crucial for getting a good, strong signal without noise or distortion.
4. MIC 1 AND 2 TREBLE TONE CONTROL
Mic 1 and 2 channel has a 2-band equalizer for tone shaping. The Treble control have fixed high frequencies and a boost/cut range of +/-
12dB
5. MIC 1 AND 2 BASS TONE CONTROL
Mic 1 and 2 channel has a 2-band equalizer for tone shaping. The low control have fixed low frequencies and a boost/cut range of +/- 12dB
6. MIC 1 AND 2 CUE SELECTOR
Allows you to choose the signal that you wish to control on the headset
7. MIC 1 ON/OFF/TALKOVER SELECTOR
This button have three positions. In OFF position, mic 1 and 2 are disable. In On position, mic 1 and 2 inputs are enable. In talkover, the
main signal is automatically reduce to listen the person who talk on mics connected in mic 1 and 2 inputs
8. CHANNEL 1, 2, 3, 4 AND 5 INPUT SELECTOR
Each channels has a selector switch. This switch lets you select which of the inputs plugged into the channel you wish to use : Mic, phono,
Line or USB player
9. CHANNEL 1, 2, 3, 4 AND 5 GAIN CONTROL
Correct setting of the controls for input GAIN for every channel is crucial for getting a good, strong signal without noise or distortion.
10. CHANNEL 1, 2, 3, 4 AND 5 TREBLE TONE CONTROL
All stereo channels have a 3-band equalizer for tone shaping. The treble controls have fixed high frequencies and a boost/cut range of –
30dB/+10dB.
11. CHANNEL 1, 2, 3, 4 AND 5 MID TONE CONTROL
All stereo channels have a 3-band equalizer for tone shaping. The mic controls have fixed middle frequencies and a boost/cut range of –
30dB/+10dB.
12. CHANNEL 1, 2, 3, 4 AND 5 BASS TONE CONTROL
All stereo channels have a 3-band equalizer for tone shaping. The low controls have fixed low frequencies and a boost/cut range of –
30dB/+10dB.
13. CHANNEL 1, 2, 3, 4 AND 5 CUE SELECTOR
Allows you to choose the signal that you wish to control on the headset
14. CHANNEL 1, 2, 3, 4 AND 5 LEVEL CONTROL
The channel level slide control can be used to adjust the individual input to obtain the desired volume of each channel.
