Web guiding system EKR 1500 EDV-No.: V3D.010.01.03 Chapter: 1.0
with analogue sensors and CCD 2004 Date: 12.04.2011 Page: 3/5

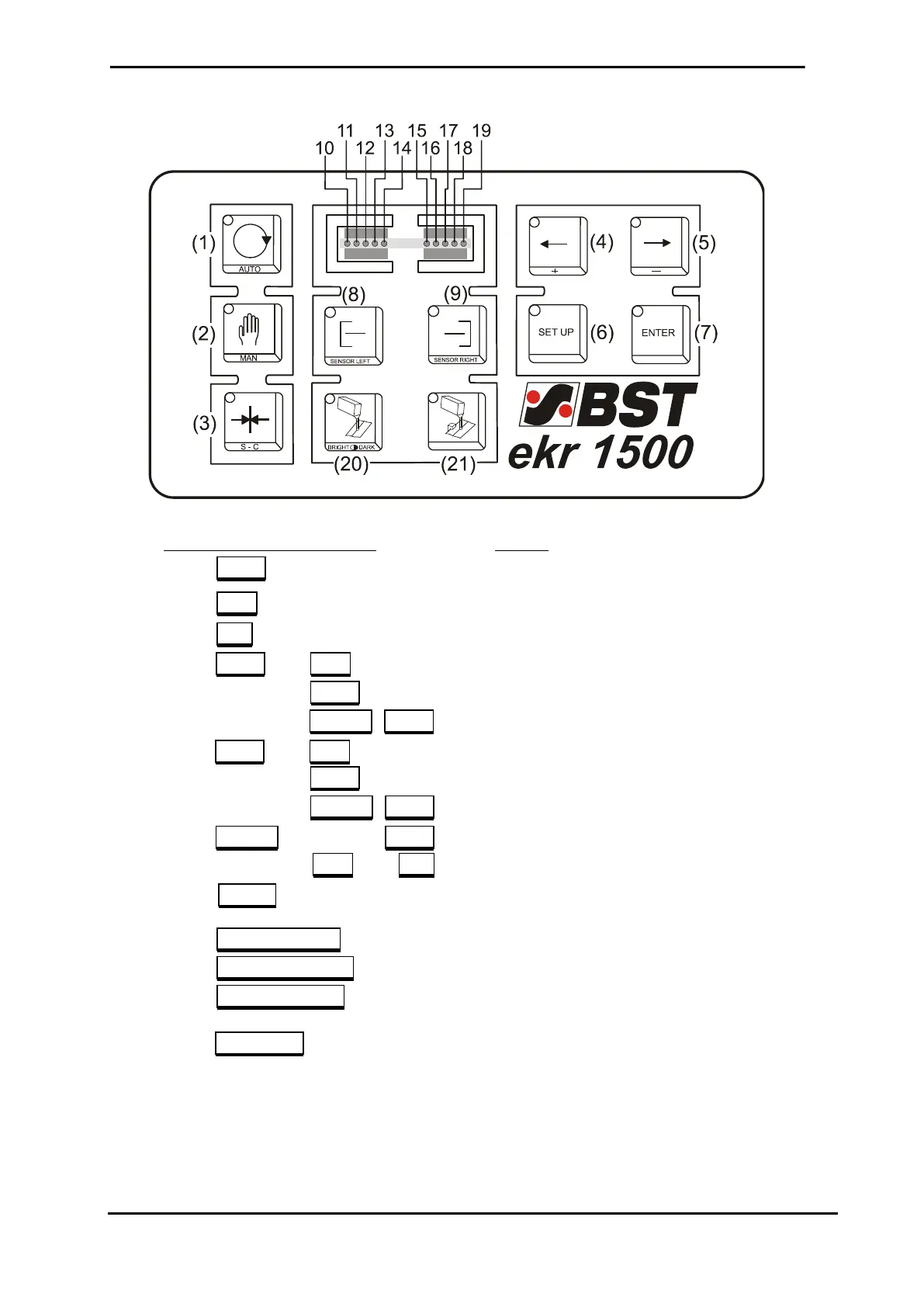

1.4 Signification of the keys on the front panel
key and/or combination of keys function
AUTO (1) = automatic guiding
MAN (2) = manual positioning
S-C (3) = servo-center of the servo component
/ + (4) + MAN = manual shifting
+ AUTO = shifting of guiding point to the left *
+ SET UP + AUTO = increase of gain
/ - (5) + MAN = manual shifting
+ AUTO = shifting of guiding point to the right *
+ SET UP + AUTO = decrease of gain
SET UP (6) AUTO = release of gain with the keys (4) and (5).
+ MAN and/or S-C = SET UP when changing the material
ENTER (7) = storing of the adjustment and end of SET UP
functions
”SENSOR LEFT” (8) = guiding to the left web edge
”SENSOR RIGHT” (9) = guiding to the right web edge
Line/Printed edge (20) = guiding to a printed line or edge (also interrupted) with
CCD 2004
Watchdog (21) = automatic change-over to edge guiding when the
printed line or edge is interrupted or has got lost.
When the printed line or edge reappears, the guiding
function is taken over automatically by CCD 2004
