BTECH GMRS-V1 - Accessory Jack

VISIT!BAOFENGTECH.COM!AND!MIKLOR.COM!FOR!DOWNLOADS!AND!HELP!
23!
!
!
Accessory!jack!
The!accessory!jack!on!the!BTECH!GMRS-V1!is!a!Kenwo o d !co mpatib le!tw o !(2)-pin!design.%

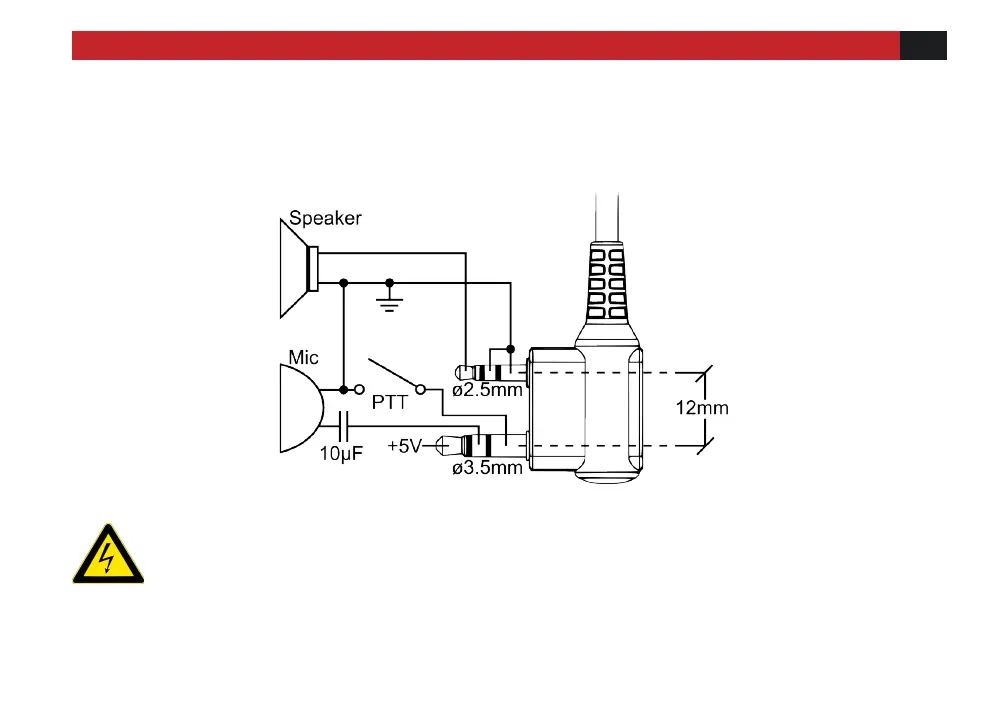

Figure!2.4.!Typical!2!pin!Kenwood!headset!configuration.!
!
!
• To%attach%accessories%such%as%headsets,%speaker-mics%or%programming%cables,%align%the%connectors%and%
push%in%fully.%
• The%fit%isn't%always%perfect%on%cheap%or%clone%cables%and%connectors%and%may%require%a%bit%of%force%to%
wiggle%them%in%completely.%
• Make%sure%the%radio%is%off%before%attaching%any%accessories.% %
