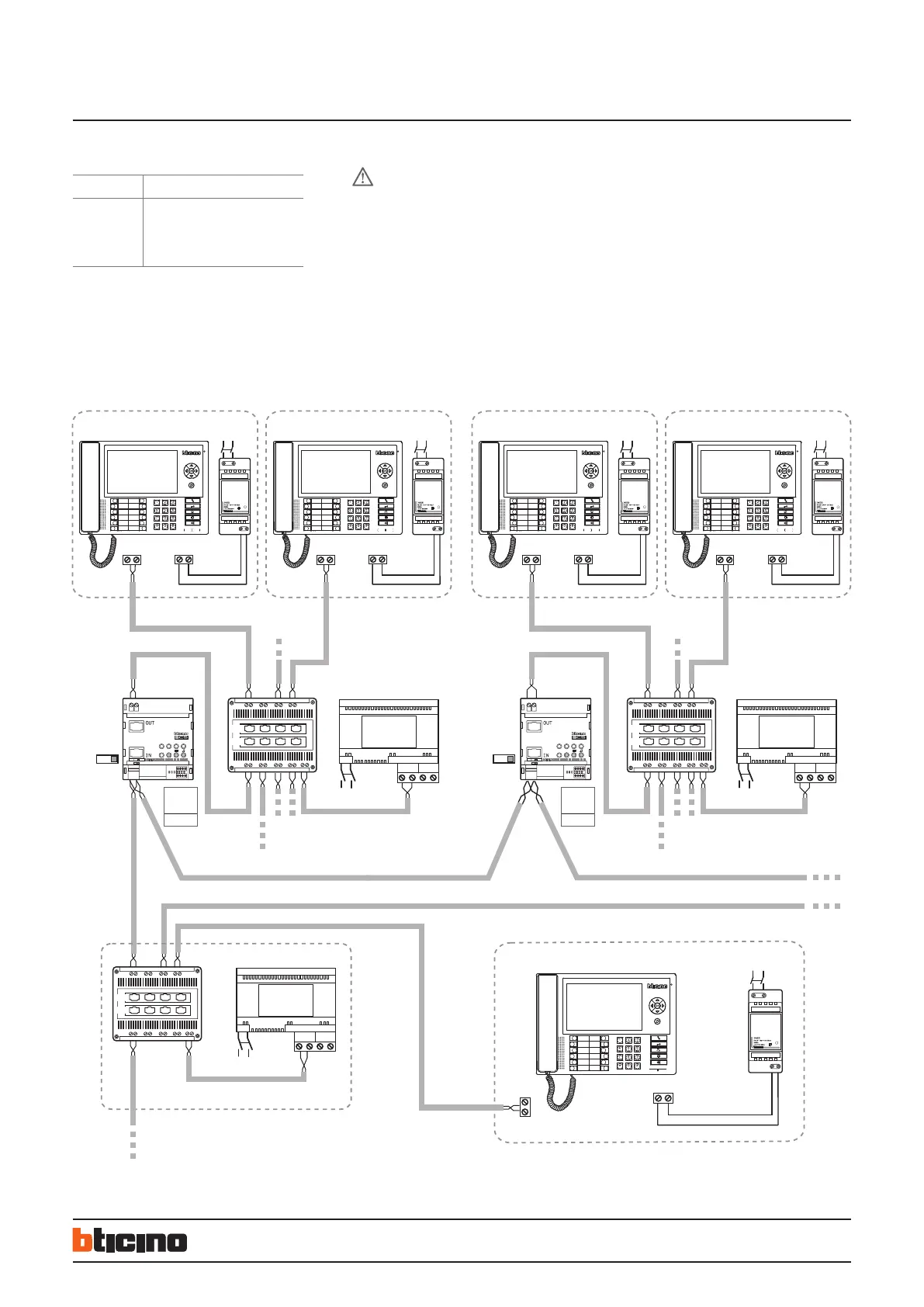

2 WIRE Switchboard
Hierarchical system with backbone SWB, riser SWB and Slave SWB on the backbone and on the riser
ITEM DESCRIPTION
346310 Switchboard
346020 Additional power supply
F441 Audio/video node
346000 Power supply
– An additional power supply with 346020 is recommended
– Refer to the documentation supplied with the product for the Switchboard configuration and its operation
– The backbone SWB do not manage the riser EP video signal
– A maximum of 16 SWB can be installed
– Use the YouDiagram software for the functional check and calculation of the current absorptions – free download from:
www.professionisti.bticino.it (for Italy) - www.bticino.com (International version).
– The slave SWB follow the day/night settings of the associated SWB
WARNING
Riser SWB = 1 Slave SWB = 9 Riser SWB = 2 Slave SWB = 10
Riser EP Riser EP
Go to the next page
Riser 1 Riser 2
Go to the next page
Main EP
(P = 1)
Backbone SWB = 0
