* • A második beltéri egységet és a 3501/1 konfigurátort külön kell
megvásárolni.
• The second internal unit and the 3501/1 configurator must be purchased separately.
•
BUS
PL S+
S-
N
= –
= –
T = –
S = –
P
= –
–
=
2
1
A
P
= –
= –
= –
M
N
= –
=
=
= –
*1
B
OFF ON
5M 12 1
BUS
1
P
= –
= –
= –
M
N
= –
=
=
= –
B
OFF ON
5M 12 1
BUS
1
–
*
Bifamiliare - Two family
Monofamiliare - One family

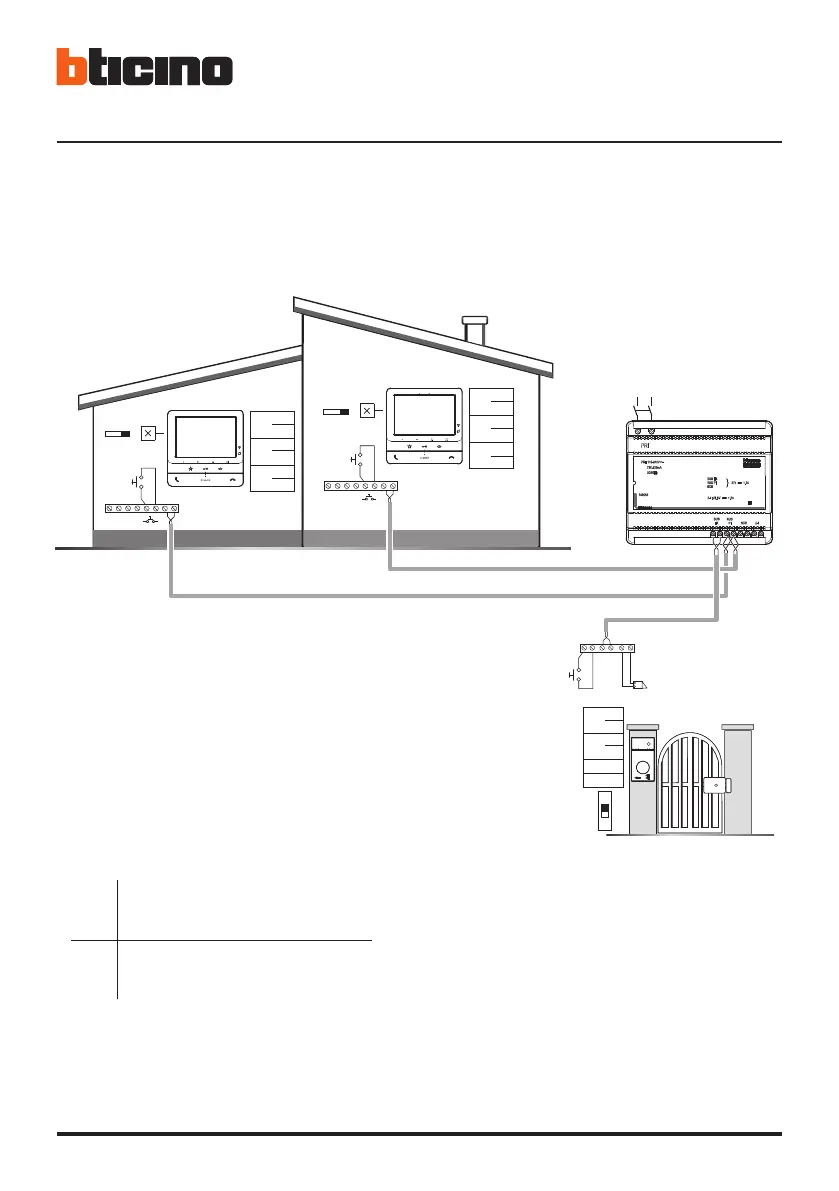

• Bekötési ábra kétlakásos családi
házhoz
• Two-family diagram
• Schéma bi-familiale
• A
B
S+ S-
Helyi ajtózár feloldó gomb.
Emelet hívása.
18V, 4 A impulzus. 250 mA tartóáram (maximum 30 Ω)
• A Door lock release local pushbutton.
B Floor call.
S+ S- 18 V; 4 A impulsive. 250 mA holding current (30 Ω max).
