Digital colour entrance panel
Distance 1 2
0 –300 m OFF OFF
300 – 700 m ON OFF
700 – 1000 m ON ON

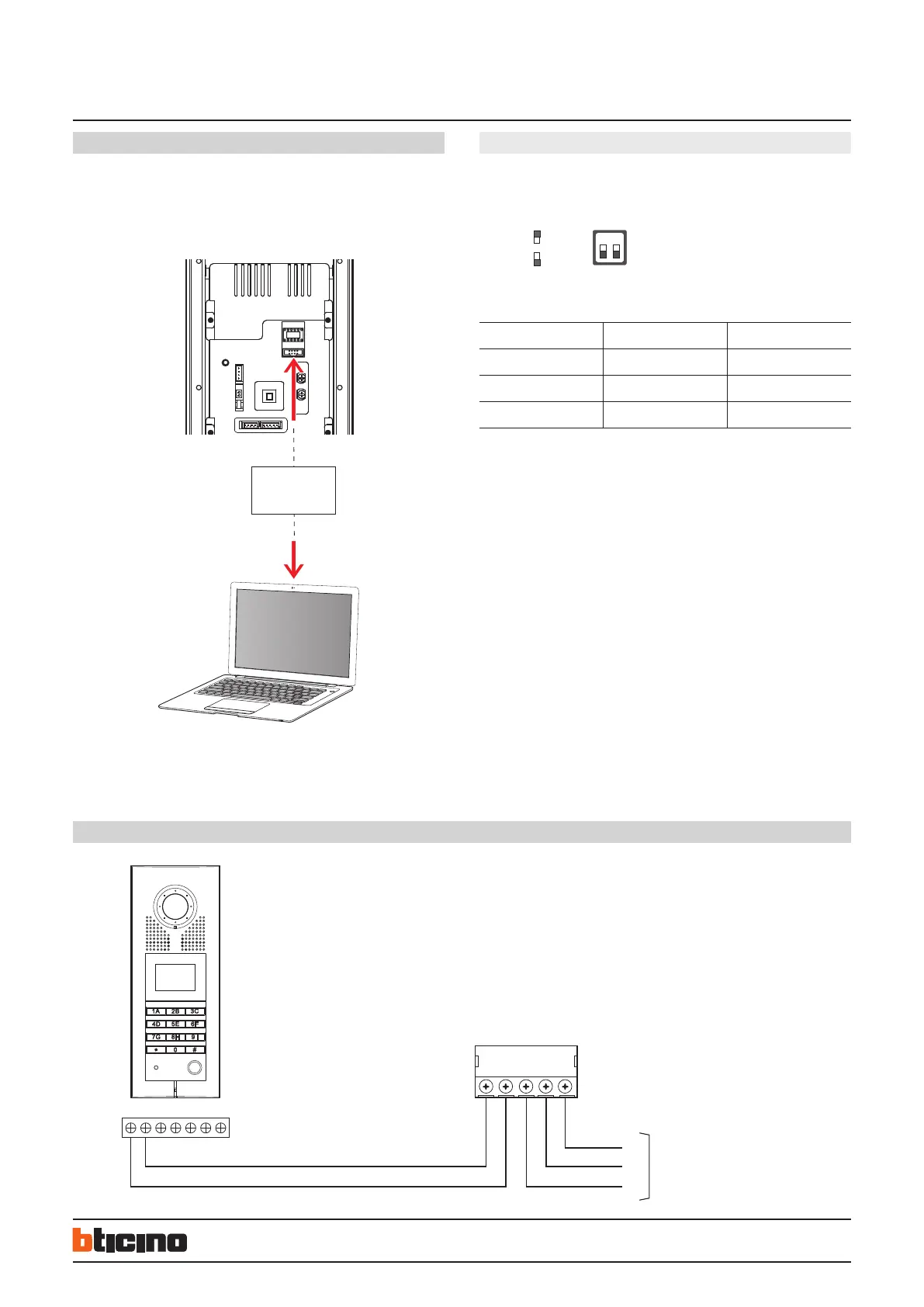

This is the enhanced way to download the device configuration to entrance panel previ-
ously created by using SF2 configuration software and a personal computer. To transfer
use the configuration hardware tool 323020 serial interface
Configuration by using SF2 Software and PC connection - WAY 3 :
WARNING : in order for the communication to take place, the EP must be powered and
not physically configured
The entrance panel has two video compensation gears. By setting different V-GAIN
gears, we can let the video signal output adapt to different transmission distance. See
followings:
DIP SWITCH SETTINGS FOR B/W. AND COLOUR SYSTEM
Configuration
Wiring diagrams - Door lock relay connection
323020
configuration
tool
Video gain setting
N.B.: Cable size 1 mm
2
and max distance 2 meters
8A cosϕ = 1 24 Vac/24 Vdc
4A cosϕ = 0.7 24 Vac
3A cosϕ = 0.4 24 Vac
