CONTENTS
Technical data sheet: S000092412EN-1 Updated: Created: 02/06/2016
Cat No(s): LN4691KNX - H4691KNX
KNX temperature control panel
1. USE
Combined with a KNX room temperature controller (with an embedded
temperature control algorithm), the KNX temperature control panel is
used to manage the heating/cooling control system (fan coil control
unit, heating/cooling valve, electrical load, etc) in the rooms where it is
installed, and can be configured for different applications as required.
The temperature control panel incorporates a user interface and a
temperature sensor.
This device is completely configurable in term of parameters, operating
modes and other features. Depending on the type of use, the backlit
display will show the following information: the current function or
mode (Heating, Cooling; Comfort, Eco, Frost/Overheat Protection), the
measured room temperature, the defined temperature setpoint, the
fan coil speed. It is a native KNX device and all the configurations and
associations must be made via ETS software (ETS versions 3, 4 and 5)
only.

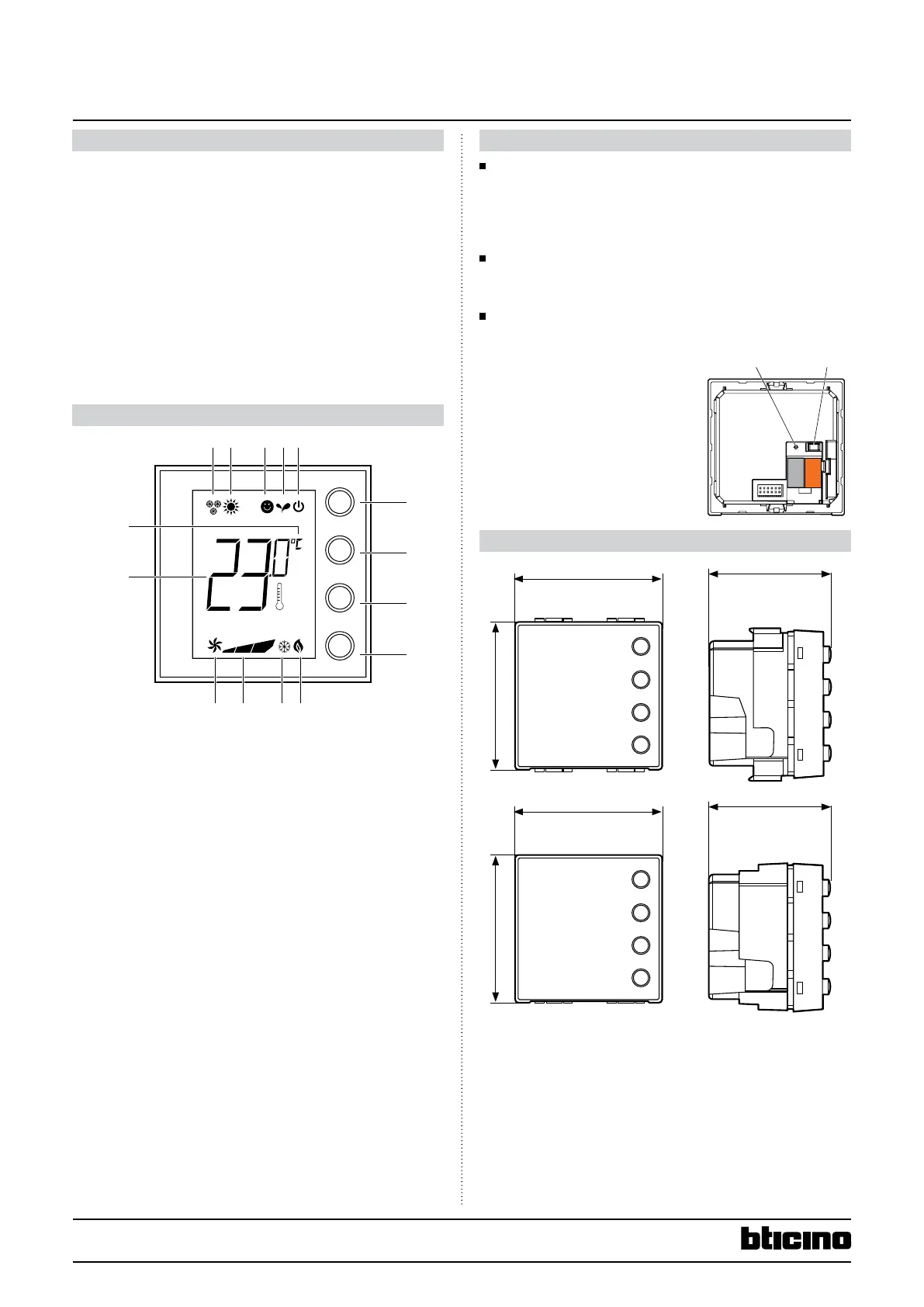

2. DESCRIPTION
12 345
6
MODE
FAN
7
8
9
13 12 11 10
14
15
+
-
1 - Heating mode.
2 - Cooling mode.
3 - Comfort mode.
4 - Eco mode.
5 - Frost/Overheat protection.
6 - MODE key: A short press changes the device operating mode;
a long press changes the function.
7 - + key: increases the set value.
8 - – key: decreases the set value.
9 - FAN key: sets the fan-coil speed to one of 3 levels + automatic.
10 - Heating On indicator.
11 - Cooling On indicator.
12 - Fan coil speed indicator, 3 levels.
13 - Fan coil in automatic mode indicator.
14 - Measured temperature (thermometer symbol On)/set temperature
(thermometer symbol Off) indicator.
15 - Unit of measurement: °C or °F.
3. TECHNICAL CHARACTERISTICS
3.1 Electrical characteristics
- KNX BUS current consumption: 6 mA (OFF) / 9 mA (Backlight min ) /
16 mA (Backlight max)
- KNX BUS power supply: 29 V =
- KNX connector (red/black): terminal capacity 4x (Ø 0.6 to 0.8 mm)
3.2 Climatic characteristics
- Environmental operating temperature: -0°C to +40°C
- Storage temperature: -25°C to +70°C
3.3 Mechanical characteristics
- Impact resistance: IK04
- Penetration by solid and liquid matter: IP20
-Weight: 40 g
LED Prog and Reset
4. DIMENSIONS
37
47
45
37
45
45
