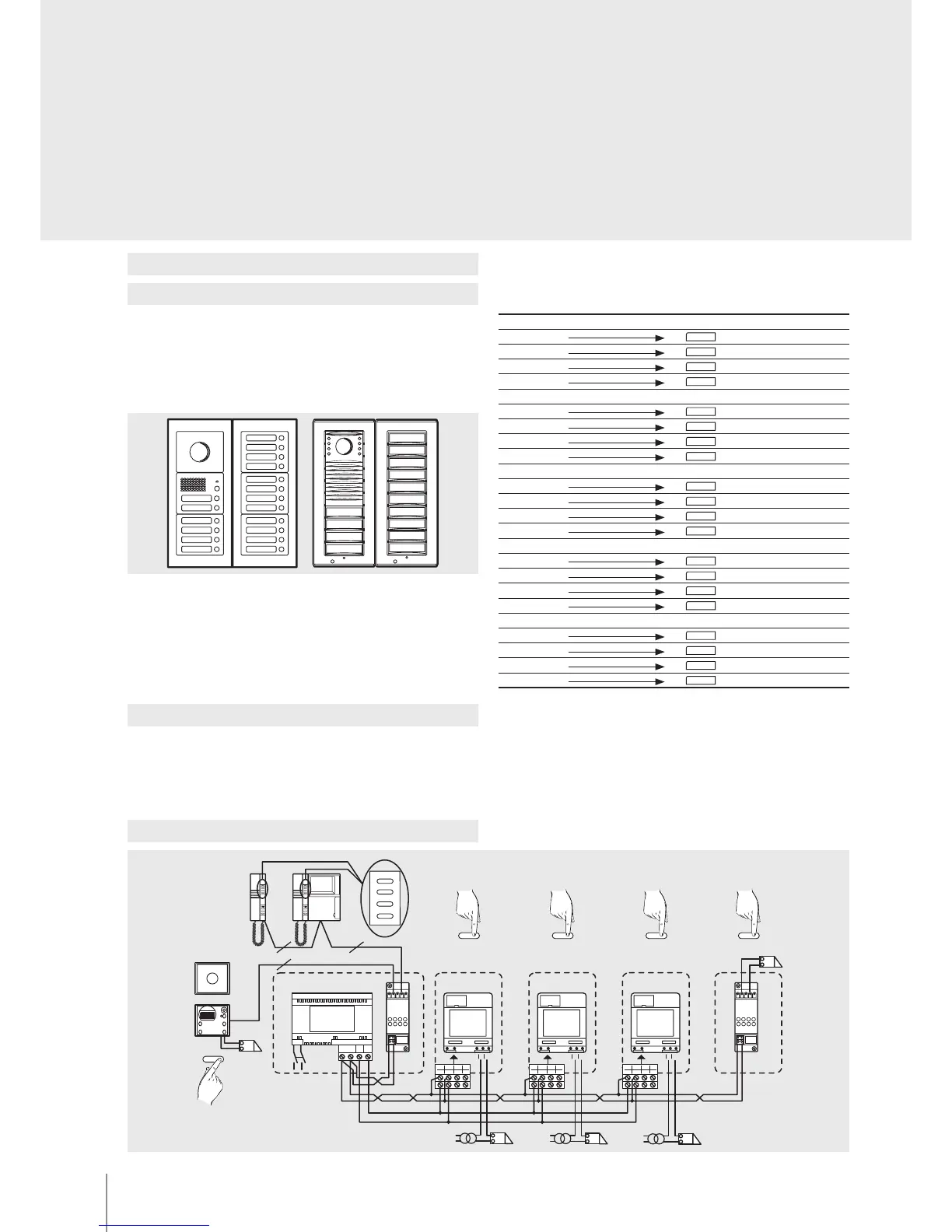

TECHNICAL SHEETS
Conguration
Example 2 - MOD = 1
Example 3 - MOD=2
Example 4 - MOD = 5
The handset keys call in succession the handsets congured from 1 to 5 in N, excluding
themselves.
Example: If the call is made from the Handset congured with N=3
- Key 1 calls the handset congured with N=1
- Key 2 calls the handset congured with N=2
- Key 3 calls the handset congured with N=4
- Key 4 calls the handset congured with N=5
In multi-family systems, the use of the accessory item 346812, appropriately
congured (MOD=1) enables intercommunication among up to 5 system users.
Inside the apartment building there may only be one group of up to 5 users that may
be able to use the intercommunicating function. For this purpose, the 5 users of the
intercommunicating function must be entered in the pushbutton panel as shown below.
In multi-family systems with apartment interface item 346850, the item accessory
346812 congured with (MOD=2) allows a maximum of 4 users to intercommunicate
among themselves (intercom external to the apartment).
The handset keys call in succession the apartments congured with N=1 – N=2-
N=3-N=4.
Activation of additional door locks
Handset with N=1 Call to the
Pushbutton 1
1
Handset 2
Pushbutton 2
2
Handset 3
Pushbutton 3
3
Handset 4
Pushbutton 4
4
Handset 5
Handset with N=2 Call to the
Pushbutton 1
1
Handset 1
Pushbutton 2
2
Handset 3
Pushbutton 3
3
Handset 4
Pushbutton 4
4
Handset 5
Handset with N=3 Call to the
Pushbutton 1
1
Handset 1
Pushbutton 2
2
Handset 2
Pushbutton 3
3
Handset 4
Pushbutton 4
4
Handset 5
Handset with N=4 Call to the
Pushbutton 1
1
Handset 1
Pushbutton 2
2
Handset 2
Pushbutton 3
3
Handset 3
Pushbutton 4
4
Handset 5
Handset with N=5 Call to the
Pushbutton 1
1
Handset 1
Pushbutton 2
2
Handset 2
Pushbutton 3
3
Handset 3
Pushbutton 4
4
Handset 4
Example:
- Key 1 calls the apartment congured with N=1
- Key 2 calls the apartment congured with N=2
- Key 3 calls the apartment congured with N=3
- Key 4 calls the apartment congured with N=4
