For assistance, call 1.800.694.0013 toll-free. Please have
your owner’s manual and model number available for
reference.
For Easiest Assembly:
1. Select an area where you will assemble this product. To
protect components, choose a smooth surface that’s free of
cracks or openings.
2. Spread out all parts.
3. Tighten all hardware connections by hand first. Then, before
completing each step, go back and fully tighten all hardware.
Be careful not to overtighten. That could damage surfaces or
strip threads.
4. For best results, complete each step in the order presented.
To complete assembly you will need:
• One bag of charcoal (not included)
Typical assembly is approximately 45 minutes.

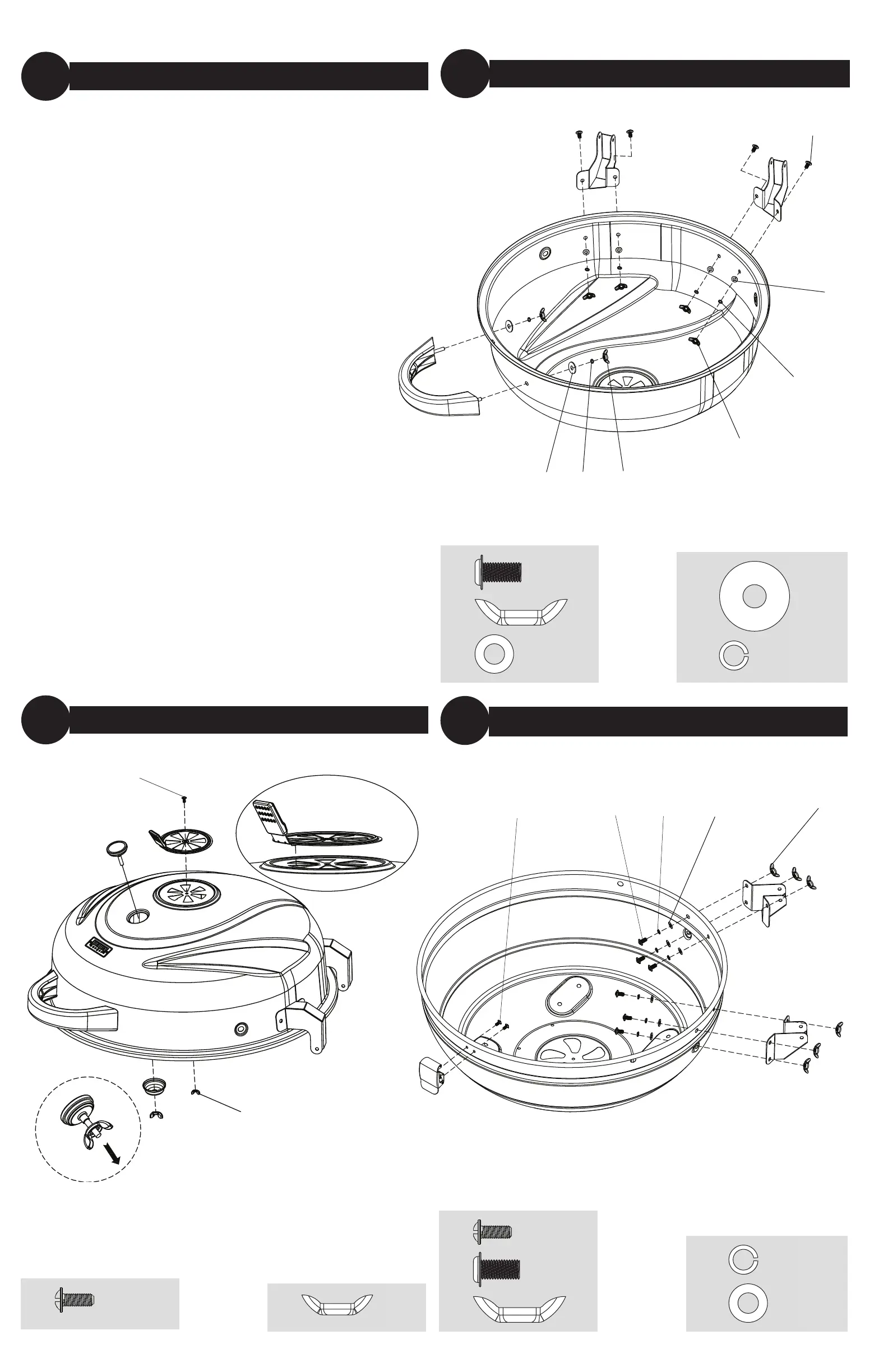

Assembly Instructions
DO NOT RETURN TO PLACE OF PURCHASE.
1
Attach Lock and Bottom Hinges
4
Attach Temperature Gauge and Lid Air Vent
3
Attach Top Hinges and Handle
2
B
F
E
E
H
G
H
B
x 4
E
x 6
F
x 4
D
A
D
x 1
A
x 1
A
B
H
F
E
H
x 6
F
x 6
A
x 2
B
x 6
E
x 6
G
x 2
H
x 6
