10 Spare parts
32
K-355 Operation Manual, Version G
16
Table 10-1: Spare parts K-355 (cont.)
Product Order number
p Drip tray 43302
4 sample tubes 300 ml 37377
Cap for 20 l tanks, large (1 piece) 43478

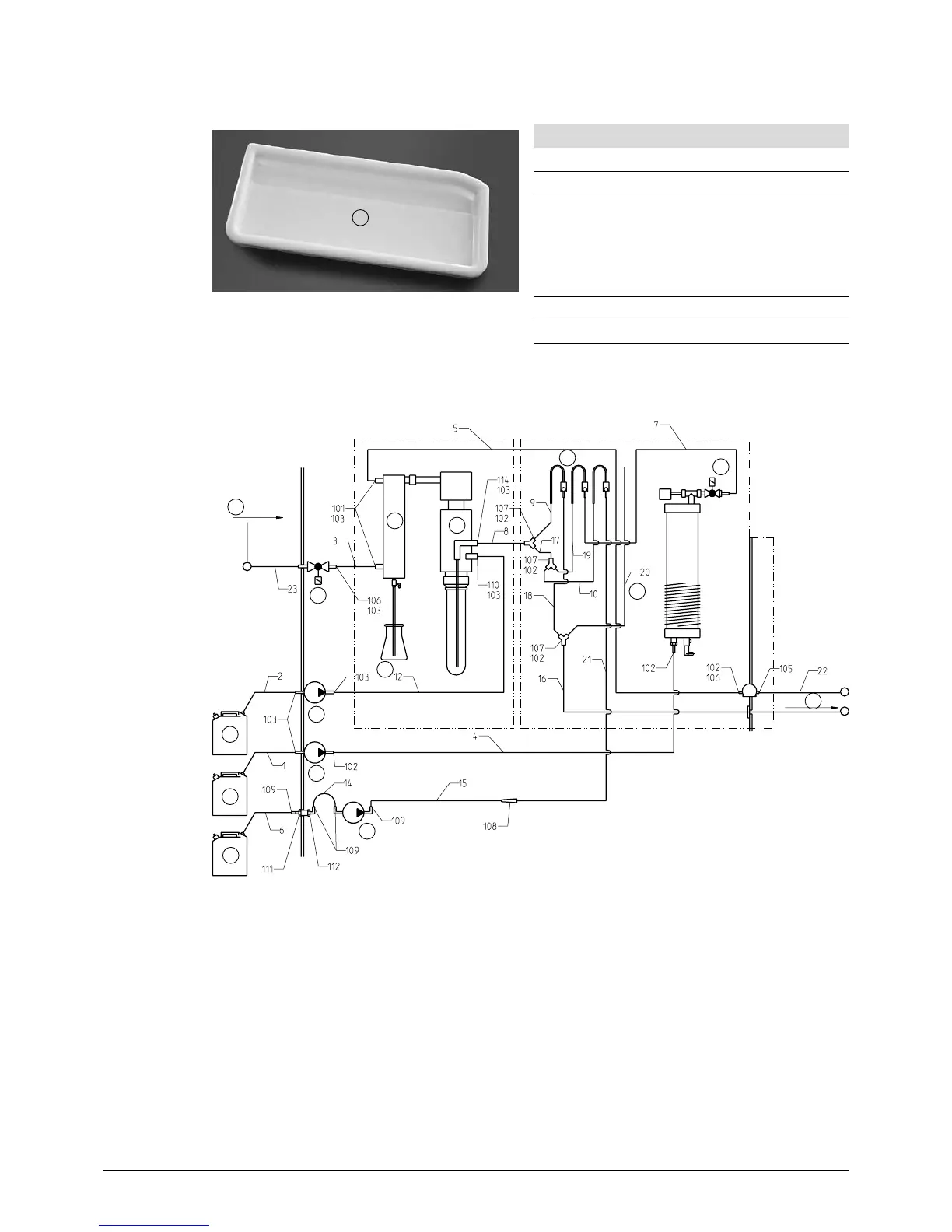

10.2 Hosing connection scheme
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
a Inlet
b NaOH tank
c H
2
O tank
d Acid tank
e Valve cooling water in
f Pump NaOH
g Pump H
2
O steam generator
h Pump special
i Cooler
j Receiving vessel
k Splash protector
l Check valve
m Ventilation
n Valve steam
o Output
Fig. 10.1: Hosing connection scheme
