Digestion Unit K-424 4 Putting into operation
4.4 Hose connections
Mount the safety shield (A) with the fitted hoses on the unit
(see photograph).
Assemble the connection to the suction module (B) and install
on the hose (C) and on the suction modules (D).
Connect the EPDM hose to the scrubber B-414 or to the
water jet pump (e.g. made from plastic) Art. No. 02913.
When working with a water jet pump unpleasant odours
may escape into the environment if the suction is not power-
ful enough.

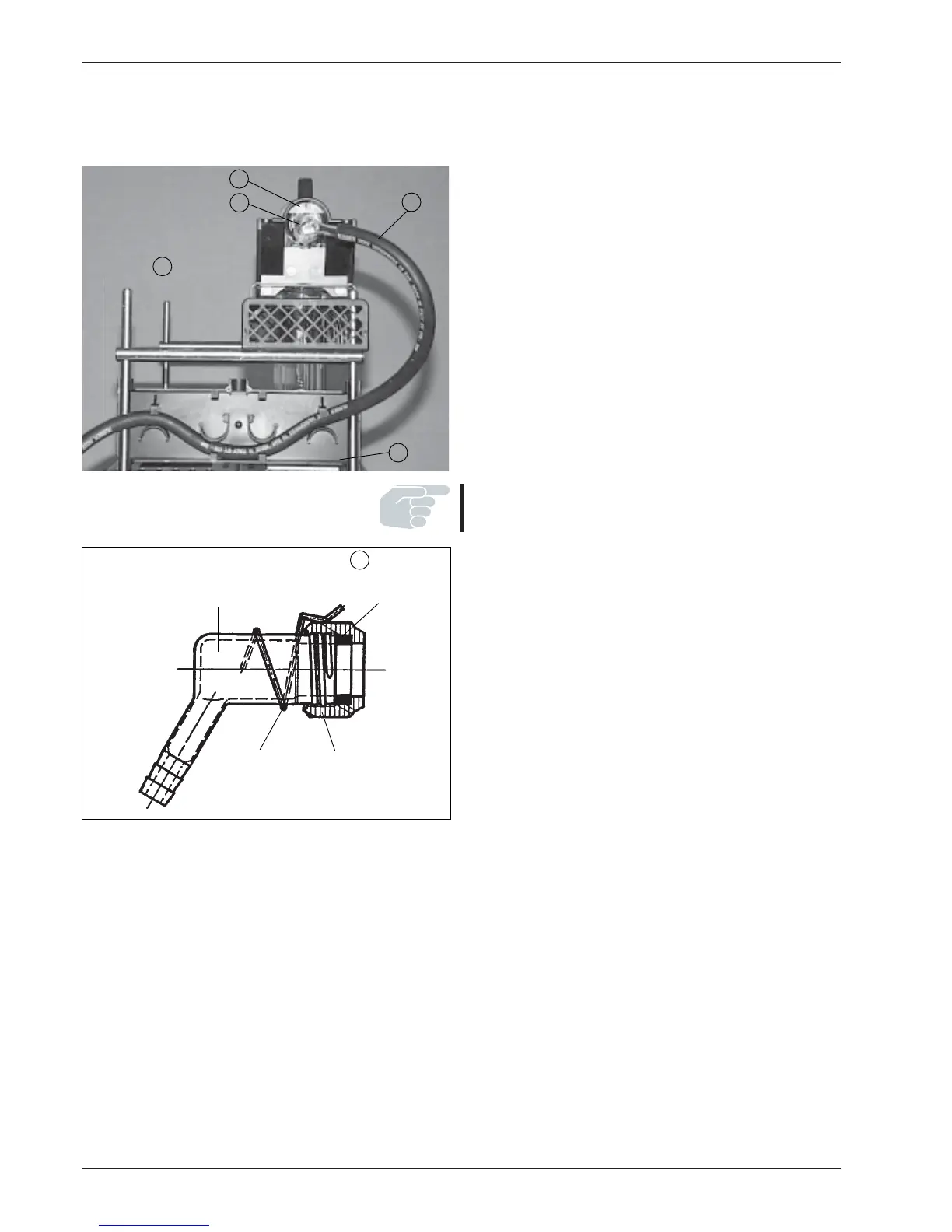

Fig. 3: Hose connections enlarged section
Fig. 4: Connection to fume exhaust
