14
DP12VL
OPERATING INSTRUCTIONS

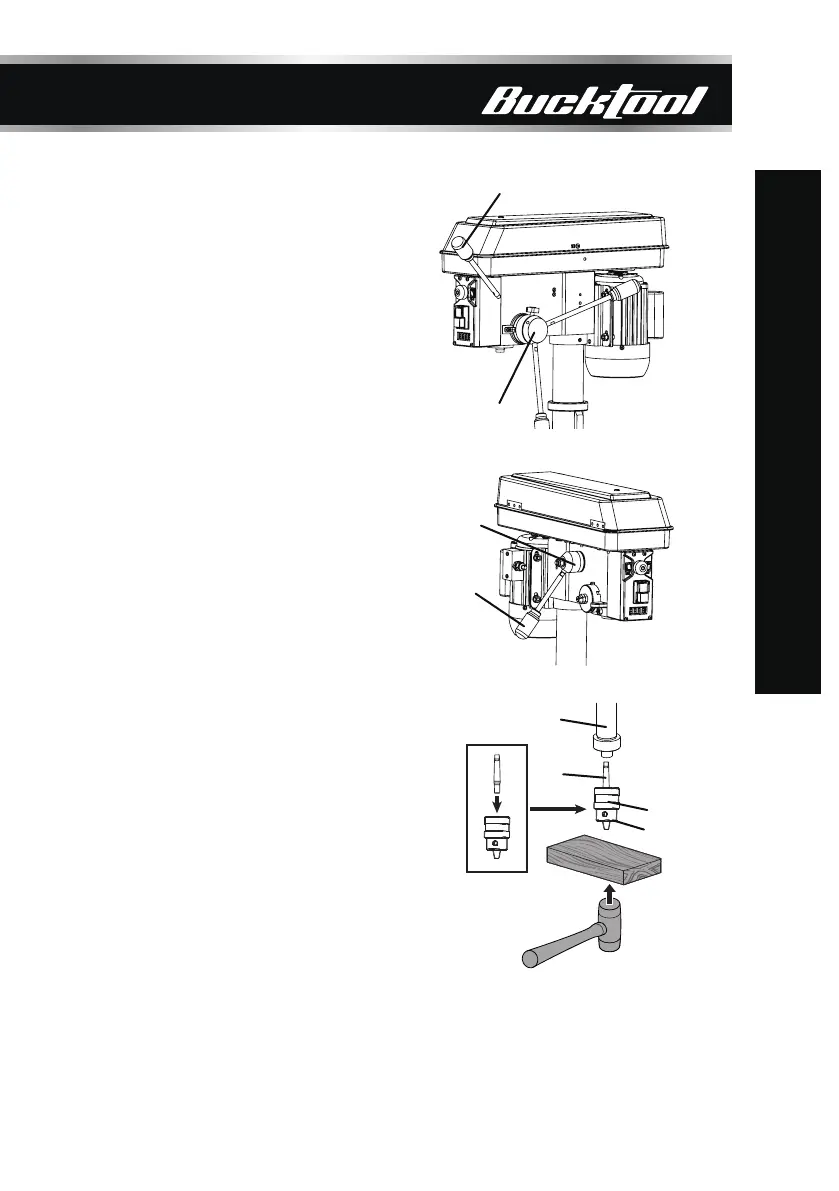

FEED HANDLES
1. Insert the three feed handles (1) into the
threaded openings on the feed hub (2).
2. Manually tighten the handles into the
openings. Use an adjustable wrench
(not included) to grip the flats on the
handles and fully tighten them.
NOTE: When using the drill press, one or
two of the feed handles may be removed
if an unusually-shaped workpiece
interferes with the handle rotation.
SPEED HANDLE
INSTALL THE CHUCK
1. Insert the speed handle (1) into the threaded
opening on the speed hub (2).
2. Manually tighten the handle into the openings.
Use an adjustable wrench (not included) to
grip the flats on the handles and fully tighten
them.
1. Inspect and clean the taper hole in the chuck
(1) and the spindle (2). Remove all grease,
coatings, and particles from the chuck and
spindle surfaces with a clean cloth.
2. Open the chuck jaws (3) by manually turning
the chuck barrel clockwise. Make sure the
jaws are completely recessed inside the chuck.
3. Insert the chuck arbor (4) into the opening at
the top of the chuck.
4. Insert the arbor into the spindle. Rotate it until
the tang of the arbor (the flats on the end) is
aligned with the slot in the spindle, and the chuck
and arbor can be pushed upwards. Seat the chuck by placing a block of wood
(not included) below the chuck and firmly tapping the wood once with a hammer.
Alternatively, firmly tap the chuck once with a rubber mallet or dead-blow hammer
(not included).
5. If the chuck or arbor fail to seat properly, they may not be clean enough. Remove
them and thoroughly clean the mating surfaces, then try again. Ensure all dust,
debris, and liquids are removed from the surfaces, and that neither surface is damaged.
1
2
2
1
2
4
1
3
