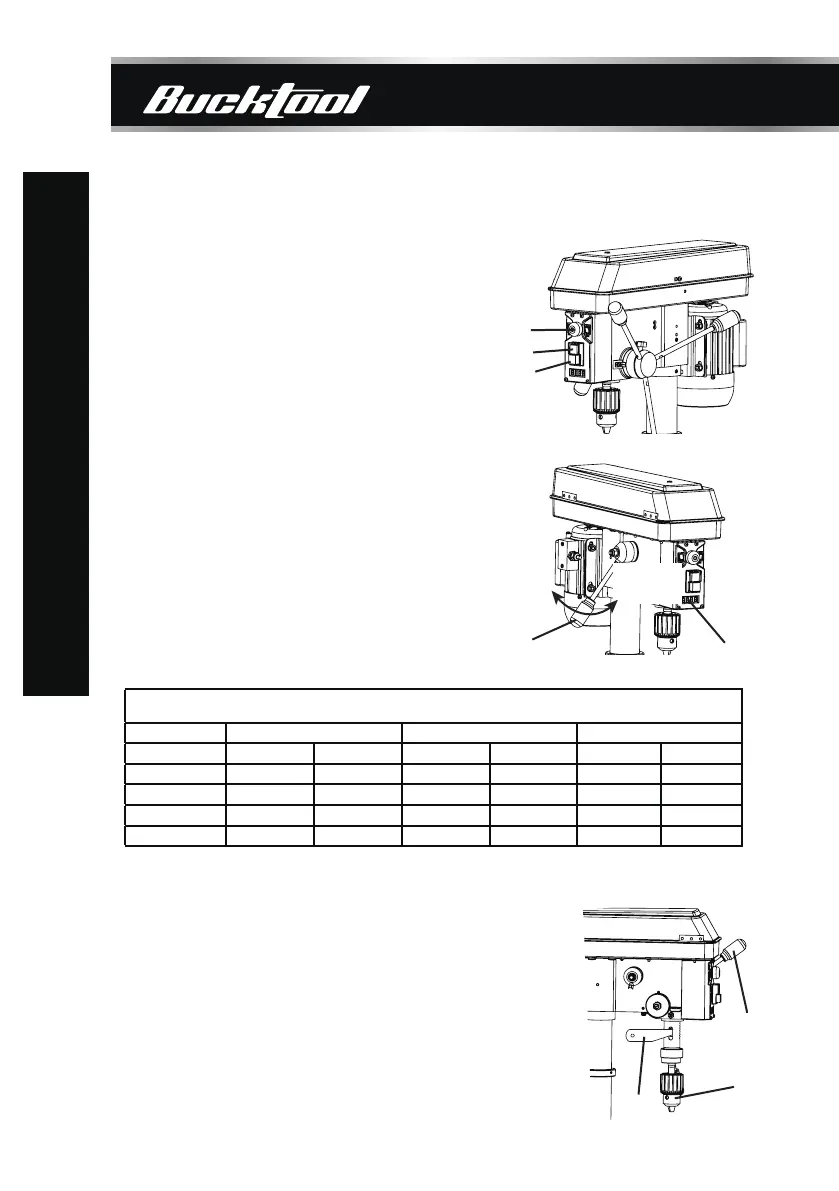

DP12VL
OPERATING INSTRUCTIONS
17
SPEED ADJUSTMENT
1. Turn the belt tension handle (1) upward to
increase the belt speed.
2. Turn the belt tension handle (1) downward
to decrease the belt speed.
3. Read the actual speed displayed on the
LED panel (2).
SWITCHING ON/OFF
1. Turn the emergency STOP button (1)
clockwise to release it, if it has already
been activated.
2. Switch the product on by pressing the
green ON button I (2) and wait until the
drill bit has reached maximum speed.
3. Switch the product off by pressing the
red Off button O (3) or pressing the
emergency STOP button (1) in an
emergency.
REMOVE THE CHUCK
1. Turn the feed handles (1) to lower the
chuck (2) to the lowest position.
2. Insert the drift key (3) into the opening in
the quill. Gently tap on the wedge using a
rubber mallet (not included). The chuck
and arbor will drop out.
NOTE: To avoid possible damage to the drill
or chuck, be prepared to catch the chuck as it falls.
1
1
1
2
3
2
3
2
High
Speed
Low
Speed
DRILL BIT SIZE RECOMMENDATIONS
RPM Wood Aluminum, Zinc, Brass Iron, Steel
2000 to 3200 3/8 in. 9.5 mm 7/32 in. 5.6 mm 3/32 in. 2.4 mm
1400 to 2000 5/8 in. 16 mm 11/32 in. 8.75 mm 5/32 in. 4 mm
1000 to 1400 7/8 in. 22 mm 15/32 in. 12 mm 1/4 in. 6.4 mm
800 to 1000 1-1/4 in. 31.75 mm 11/16 in. 17.5 mm 3/8 in. 9.5 mm
580 to 800 1-5/8 in. 41.4 mm 3/4 in. 19 mm 5/8 in. 16 mm
