INSTALLING YOUR BEVERAGE CENTER
Reversing The Door Hinge
Remove the top hinge cover.
Using a Phillips Head Screwdriver, loosen and remove the 2 screws holding the top hinge in
place.
Remove top hinge and carefully lift o� the door.
Remove the screw hole plugs from the opposite side of the cabinet and the door and insert the
plugs in the screw hole openings of the just removed screws.
Remove any loose items in the wine cellar and carefully place the wine cellar on its back.
Loosen the screws holding the lower hinge bracket to the wine cellar and remove screws and
bracket.
Remove (2) screws from the other side and insert in the previously removed screw holes.
Tighten the screws.
Remove the door pin from the lower hinge bracket by turning it counterclockwise. Turn over the
bracket, then reinsert the door pin into the threaded hole, and tighten.
Align the door with the cabinet first. Then install the lower hinge bracket to the bottom opposite
side of the cabinet. Then insert (2) remaining screws into the holes. Tighten the screws.
Align top hinge bracket with screw holes, insert screws and partially secure, check that door and
cabinet are properly aligned and then secure tightly.
Align upper hinge bracket with screw holes insert screws and partially secure, check that door
and cabinet are properly aligned and then secure tightly.
Place the unit back in an upright position. Replace the top hinge cover.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
NOTE: If the top of the door is not aligned with the cabinet, loosen the top hinge screws, adjust door
and re-tighten the screws.

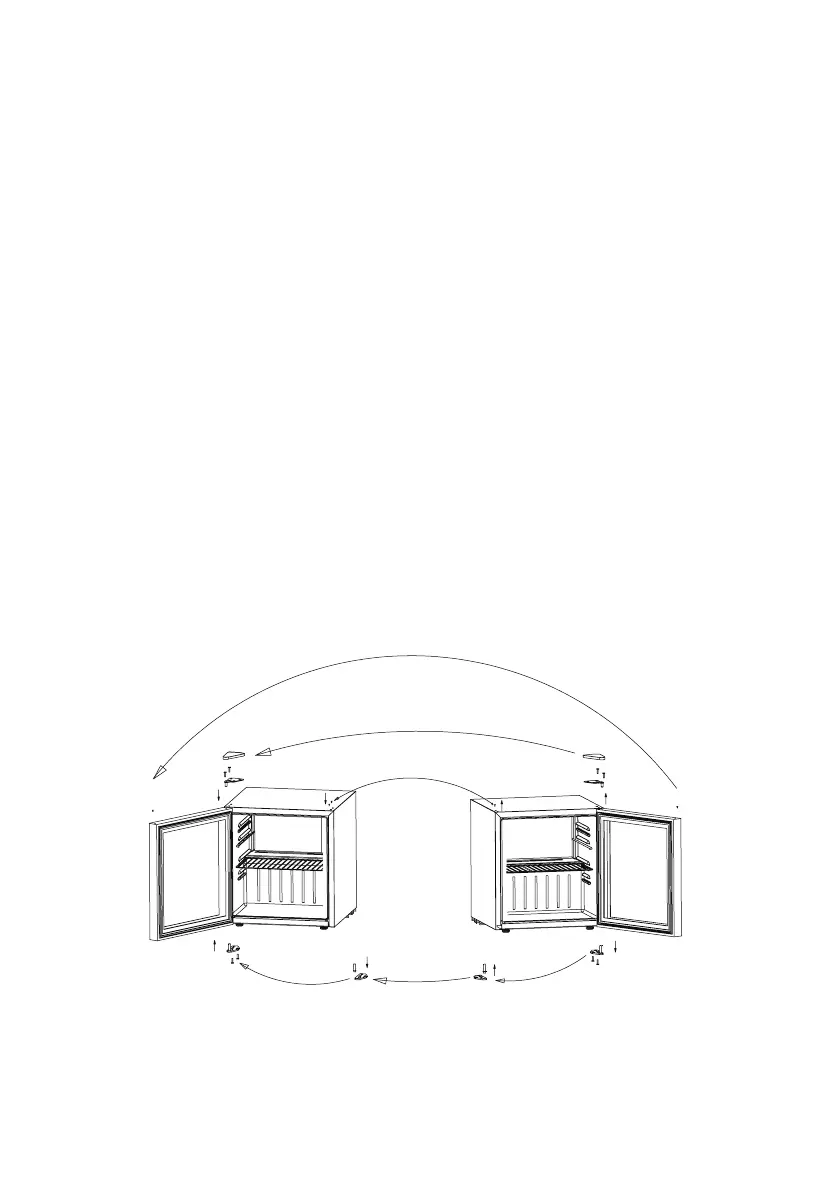

Top hinge and
hinge cover
Top hinge and
hinge cover
Door Pin Door Pin
Lower hinge bracketLower hinge bracket Turn over
Cabinet hole plug Cabinet hole plug
Door hole
plug
Door hole
plug
To Next Page
