Panel Radiator
Design Manual
Panel Radiator Design Manual | 12.2009
Technical specications are subject to change without prior notice
Panel Radiator
2⅝" from
finished
wall to
center of
tapings
2" 1³/16"
Bracket
Supply
Return
Bracket
Minimum of
4"
2½"
1⁹/₁₆"
or
2¹/₁₆"
1 2
Minimum of
4"
Finished wall
TOP VIEW
Stud

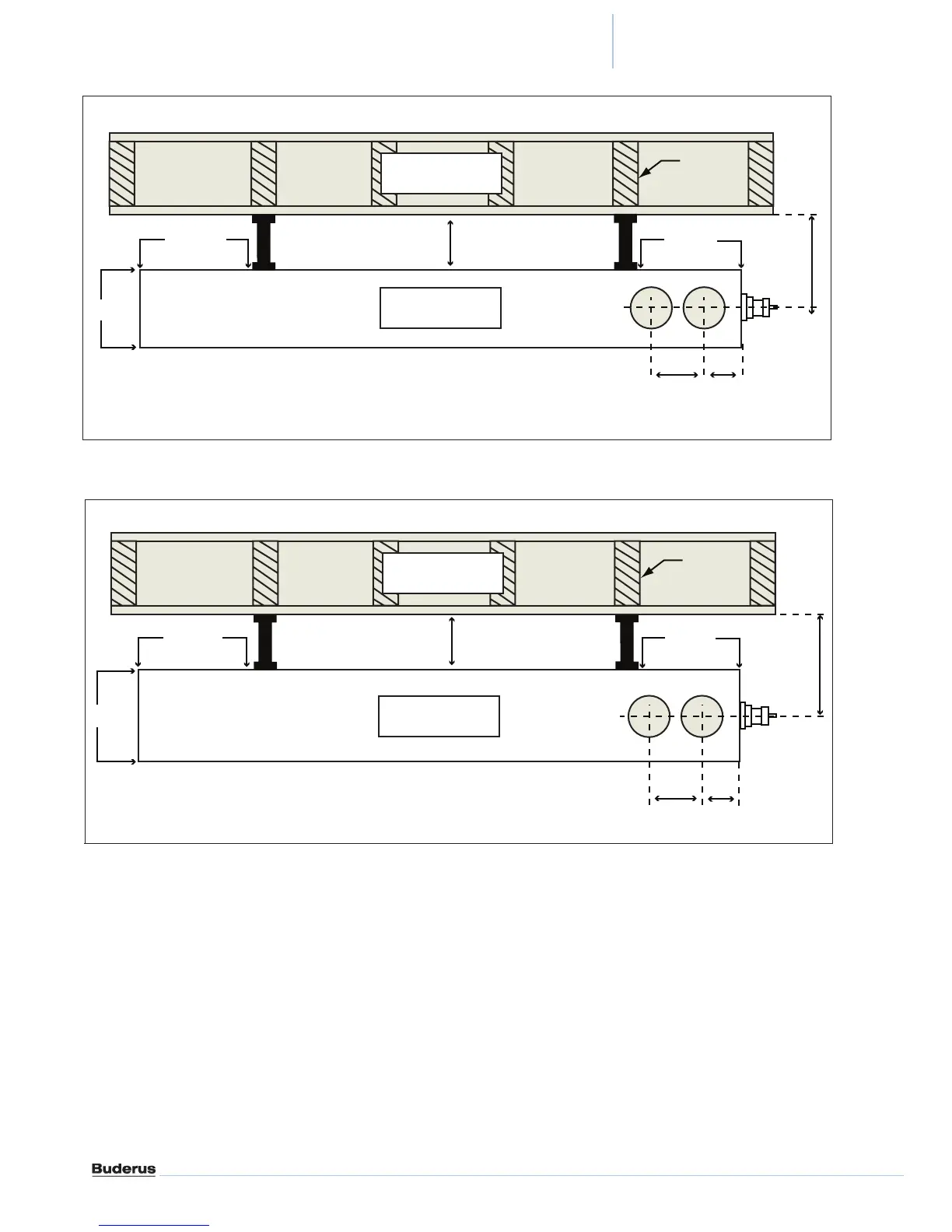

Fig. 8 Model 21 Panel Radiator Rough in Dimensions in inches for wall mounting
Panel Radiator
3⅜" from
finished
wall to
center of
tapings
2"
1³/
16"
Bracket
Supply
Return
Bracket
4"
Minimum of
4"
1 2
TOP VIEW
Finished wall
Minimum
of 4"
1⁹/₁₆"
or
2¹/₁₆"
Stud
Fig. 9 Model 22 Panel Radiator Rough in Dimensions in inches for wall mounting
