Buderus 21 - Buderus NB Style Towel Warmers; Floor Clearance

Applications manual
| 33
Panel Radiator
Design Manual
Panel Radiator Design Manual | 12.2009 Technical specications are subject to change without prior notice
Width - 24"
Bleeder
(installed)
Recommended Bracket
locations
16"
Recommended Bracket
location
Top view
½"
Taping
½"
Taping
21½"
center to center
Recommended minimum
floor clearance 6"
Recommended bracket
spacing
32" Towel Rack - 25"
47" Towel Rack - 41"
72" Towel Rack - 65"
Adjustable
from
3" to 4"
Finished
Wall
2"

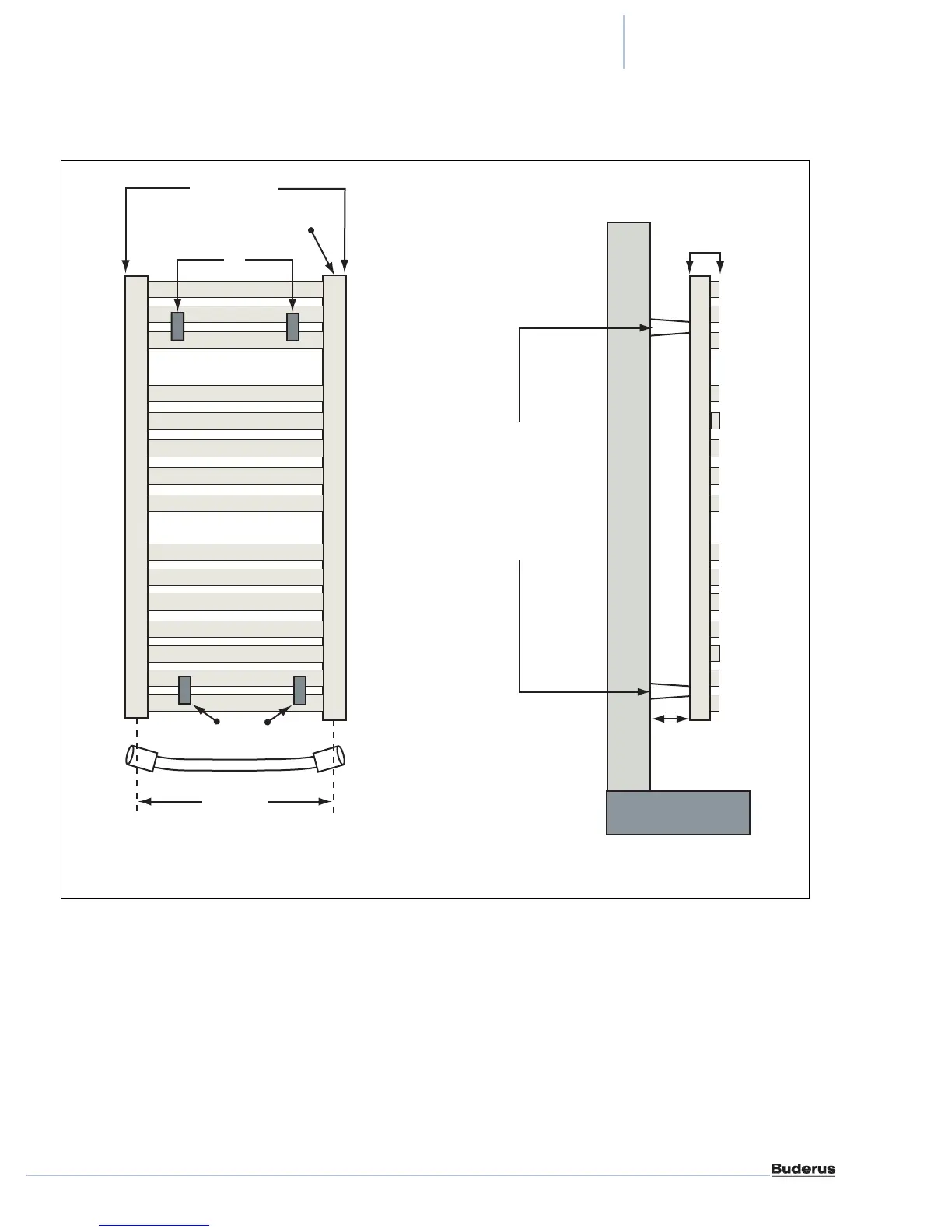

Fig. 15 Buderus NB Style Towel Warmers
- Supply and Return tapings are interchangeable.
