Buffalo B52BCQ - Spare Part List; TECHNICAL SPECIFICATIONS

Page 17GASOLINE BRUSH CUTTER / B52BCQ

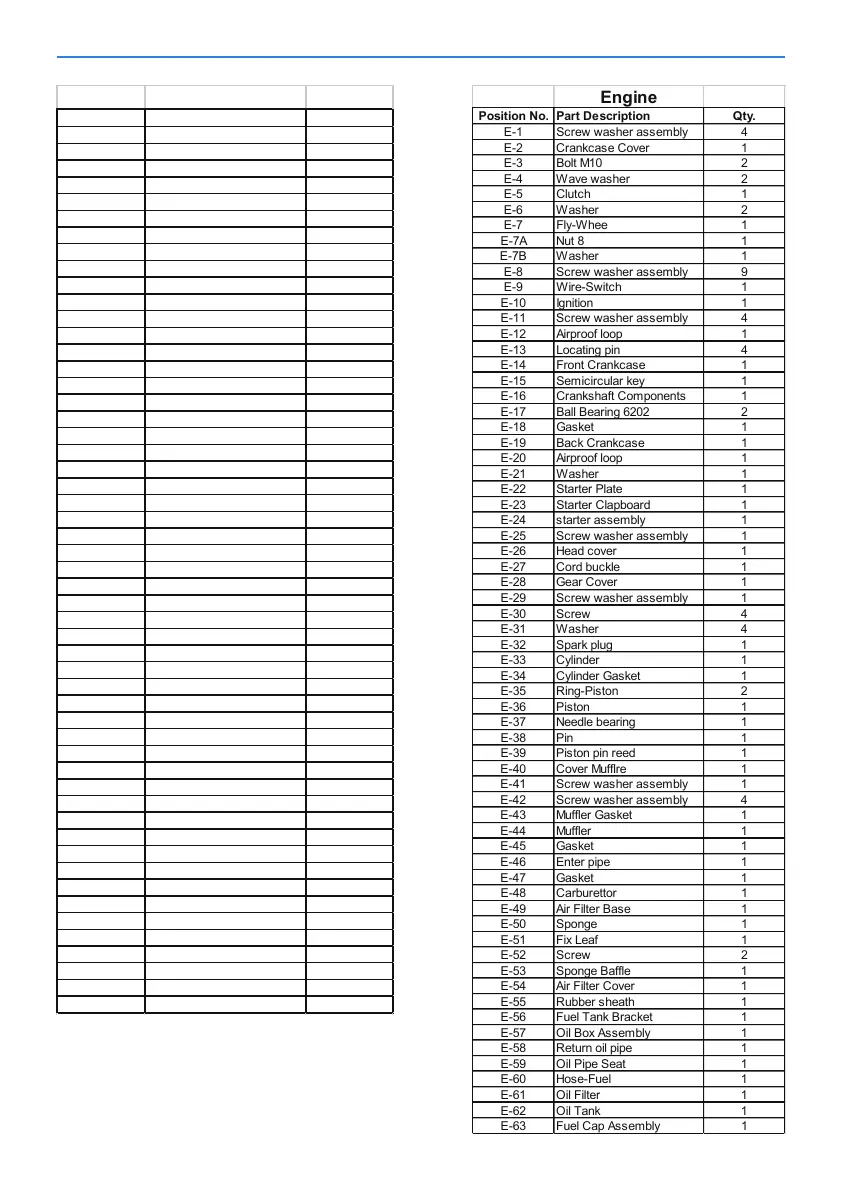

Engine
Position No. Part Description Qty.
E-1 Screw washer assembly 4
E-2 Crankcase Cover 1
E-3
Bolt M10 2
E-4 Wave washer 2
E-5
Clutch 1
E-6 Washer 2
E-7
Fly-Whee 1
E-7A Nut 8 1
E-7B Washer 1
E-8 Screw washer assembly 9
E-9
Wire-Switch 1
E-10
Ignition 1
E-11 Screw washer assembly 4
E-12
Airproof loop 1
E-13
Locating pin 4
E-14
Front Crankcase 1
E-15
Semicircular key 1
E-16
Crankshaft Components 1
E-17
Ball Bearing 6202 2
E-18
Gasket 1
E-19
Back Crankcase 1
E-20
Airproof loop 1
E-21
Washer 1
E-22
Starter Plate 1
E-23
Starter Clapboard 1
E-24 starter assembly 1
E-25 Screw washer assembly 1
E-26 Head cover 1
E-27 Cord buckle 1
E-28 Gear Cover 1
E-29 Screw washer assembly 1
E-30 Screw 4
E-31 Washer 4
E-32 Spark plug 1
E-33 Cylinder 1
E-34 Cylinder Gasket 1
E-35 Ring-Piston 2
E-36 Piston 1
E-37 Needle bearing 1
E-38 Pin 1
E-39 Piston pin reed 1
E-40 Cover Mufflre 1
E-41 Screw washer assembly 1
E-42 Screw washer assembly 4
E-43 Muffler Gasket 1
E-44 Muffler 1
E-45 Gasket 1
E-46 Enter pipe 1
E-47 Gasket 1
E-48 Carburettor 1
E-49 Air Filter Base 1
E-50 Sponge 1
E-51 Fix Leaf 1
E-52 Screw 2
E-53 Sponge Baffle 1
E-54 Air Filter Cover 1
E-55 Rubber sheath 1
E-56 Fuel Tank Bracket 1
E-57 Oil Box Assembly 1
E-58 Return oil pipe 1
E-59 Oil Pipe Seat 1
E-60 Hose-Fuel 1
E-61 Oil Filter 1
E-62 Oil Tank 1
E-63 Fuel Cap Assembly 1
Shaft
Position No. Part Description Qty.
1 Gear Case Set 1
2 Locknut 1
3 Cover 1
4
Up press board 1
5
Blade 1
6
Down press board 1
7 Screw washer assembly 3
8
Guard 1
9
Spring Ring 1
10
Ball Bearing 6202 1
11
Square Shaft 1
12
Big Gear 1
13
Ball Bearing 6000 3
14
Gear Case 1
15 Screw washer assembly 1
16 Screw washer assembly 2
17 Locknut 8
18 Screw washer assembly 1
19
Small Gear 1
20
Retaining Ring 1
21
Spring Ring 1
22
Front Aluminium Tube 1
22A
Shaft sheath 1
22B
Rear Aluminium Tube 1
23 Screw washer assembly 7
24
Base Holder 1
25
Fixing board 1
26 Transparet guard 1
27 Oil Seal Bearing 6
28 Rear Transfer shaft 1
28A Front Transfer shaft 1
29 Handle Set 1
30 Screw washer assembly 6
31 Bottom Cover 1
32 Handle Base Holder 1
33 Top Cover 1
34 Throttle Handle Set 1
35 Ring 1
36 Sheath 1
37 Spacing Ring 1
38 Screw washer assembly 1
39 Below Flange 1
40 Spring Ring 1
41 Damping Bush 1
42 Screw washer assembly 4
43 Retaining Ring 1
44 Engine Cover 1
45 Ball Bearing 6202 1
46 Spring Ring 1
47 Driven sproket ass
embly 1
48 Shoulder Strap 1
49 Petrol 1
50 Screw 1
