H. Install the top cast grates/grills
1. Remove the top cast grates from the packaging.
2. Install the top cast grates.
a. Horizontal installation: Place each cooking grate on the front support flange horizontally
while the rear part sits into the back support flange horizontally. See image below.
b. Inclined or slanted installation: Place each cooking grate over the front support flange
while the bottom groove of the rear part sits on TOP of the back support flange. See image
below.

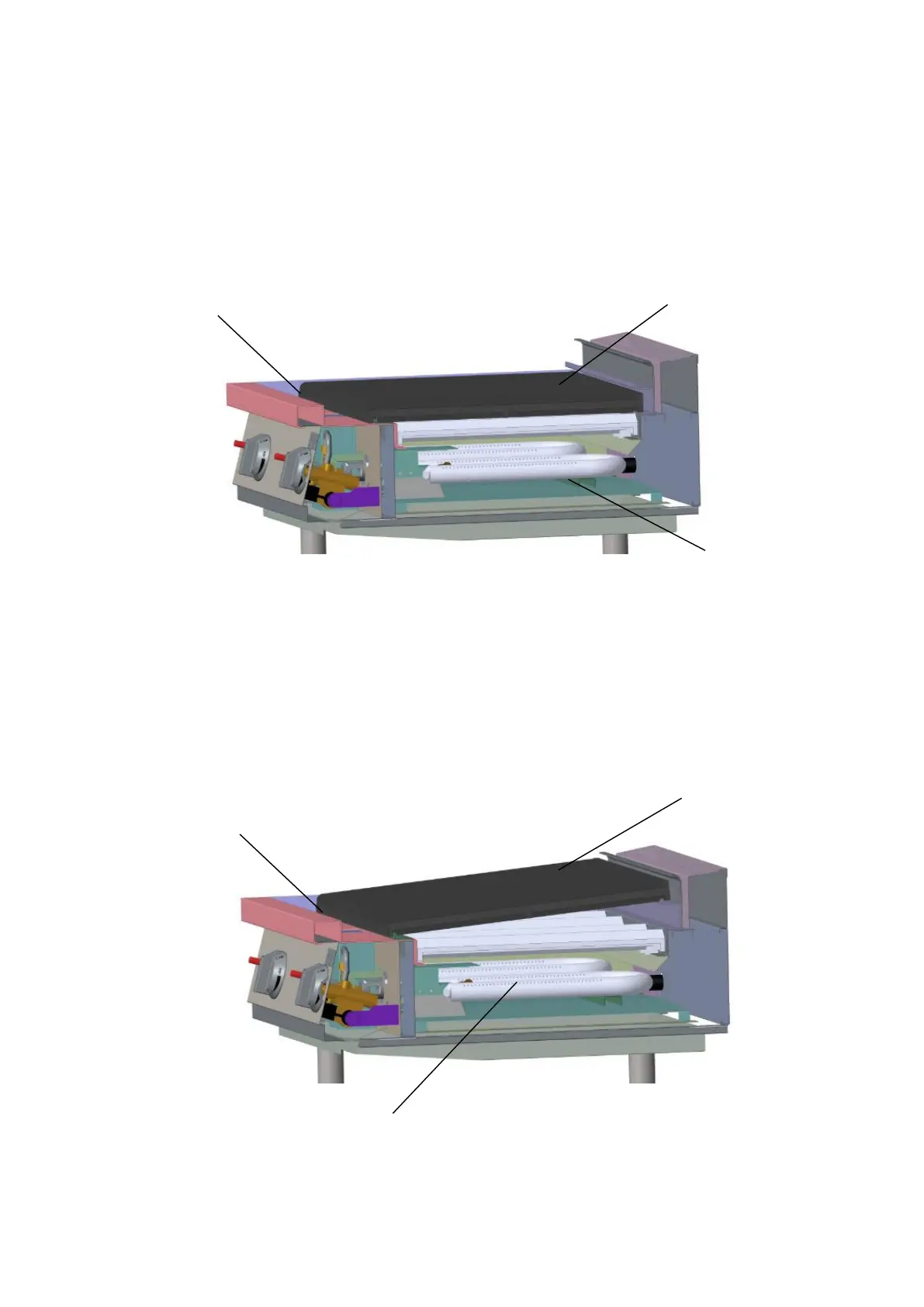

Cast Grates
(Horizontal)
Grease trough
U-Burner
Cast Grates
(Slanted)
Grease trough
U-Burner
