Rear Underseat Fuse Block

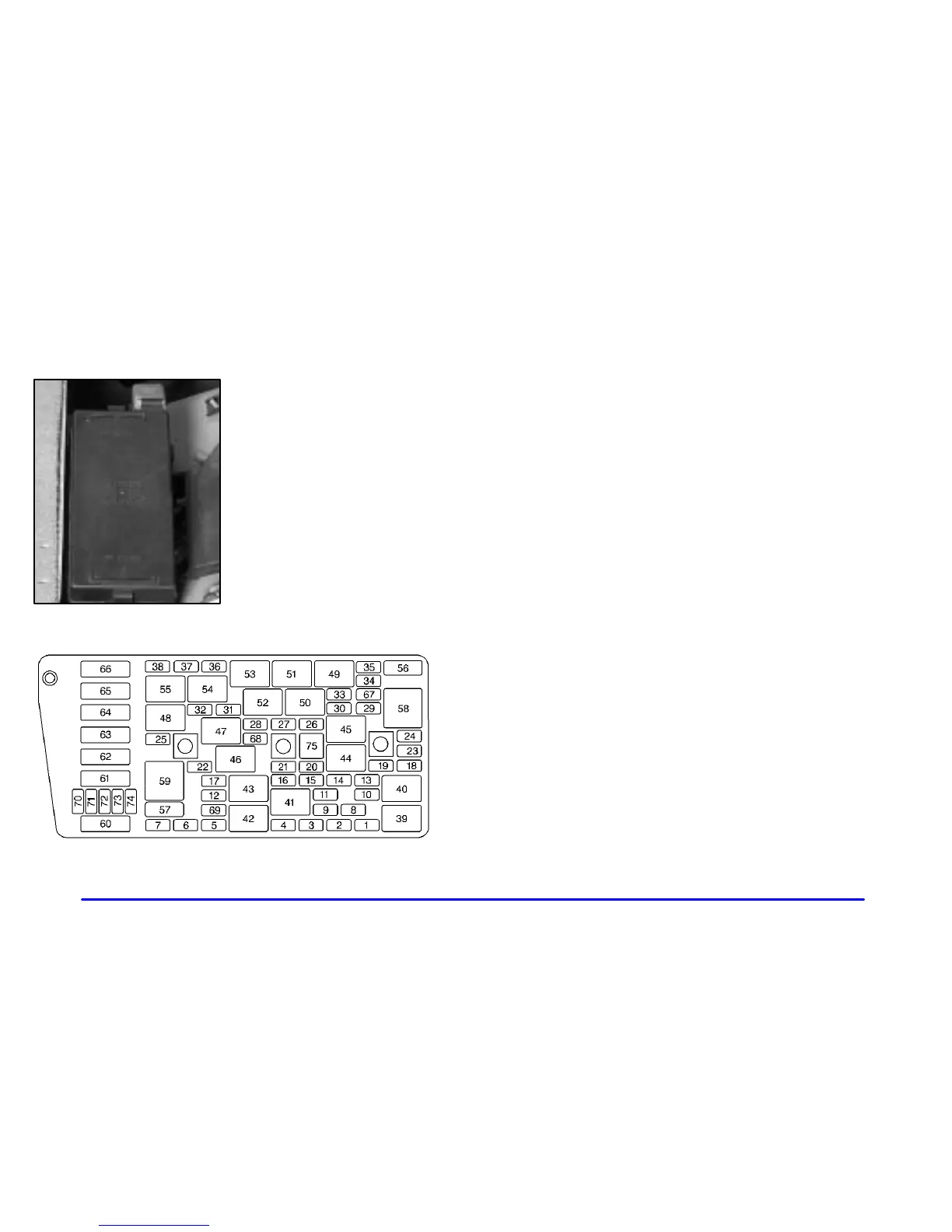

The rear fuse block is
located beneath the rear
seat on the driver’s side.
The rear seat cushion must
be removed to access the
fuse block. See “Removing
the Rear Seat Cushion” in
the Index.
Minifuses Usage
1 Fuel Pump
2 HVAC Blower
3 Memory
4 Assembly Line Diagnostic Link
5 Rear Fog Lamps
6 Compact Disc (CD)
7 Driver’s Door Module
8 Air Bag System (SIR)
9 Not Used
10 Right Parking Lamp
11 Vent Solenoid
12 Ignition 1
13 Left Parking Lamp
14 Dimmer
15 Not Used
16 Left Front Heated Seat
17 Not Used
To Next Page
