6-40
Front Turn Signal
Once the headlamp assembly has been removed from
the vehicle, the front turn signal bulbs can be accessed.
1. Reach down into the space provided by the removal
of the headlamp assembly and, while pushing in the
tab on the bulb assembly, turn the assembly
counterclockwise and remove it.
2. Remove the old bulb by pulling it straight out of
the retainer.
3. Install the new bulb and turn the bulb assembly
back into place.

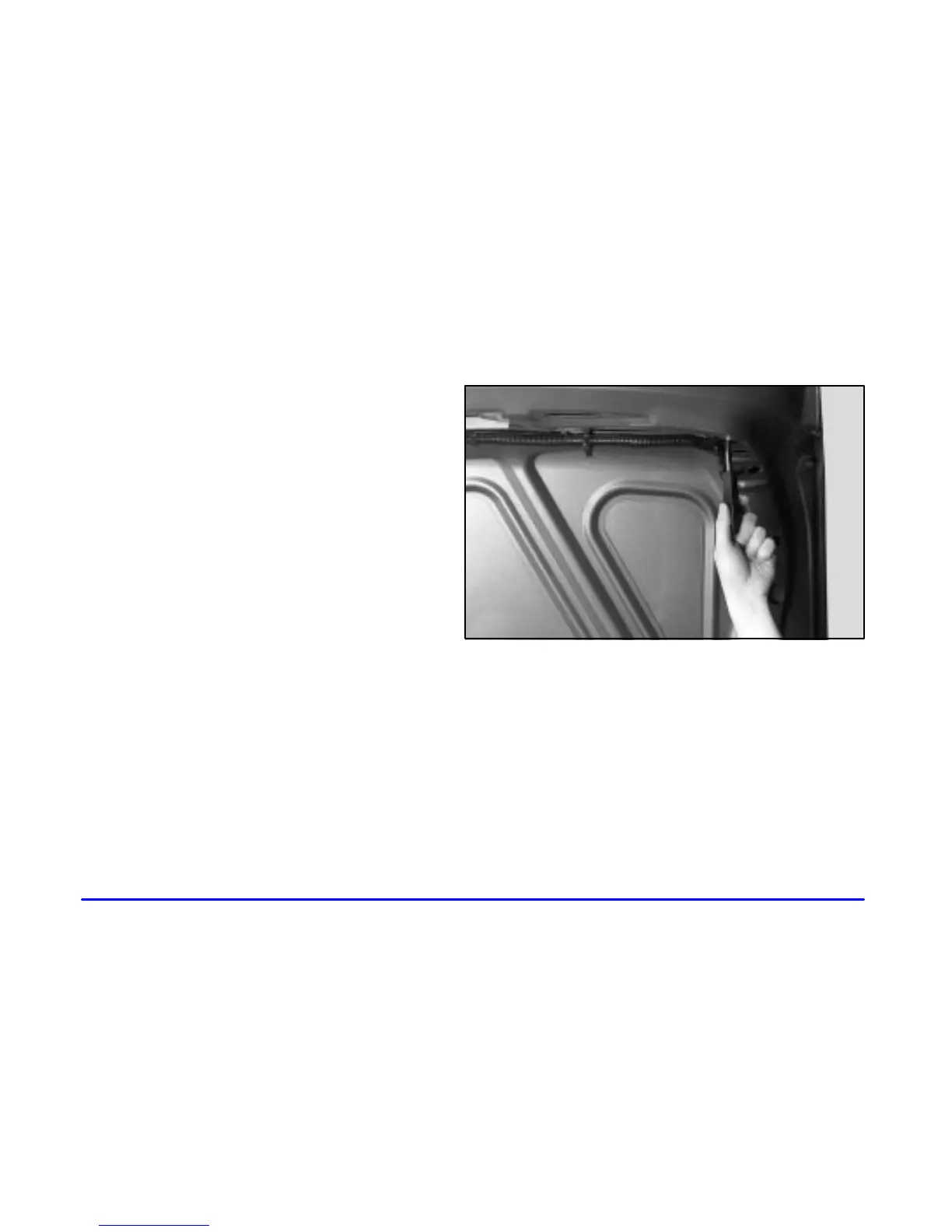

Trunk-Mounted Back-Up and Taillamps
1. Loosen and remove the seven fasteners that hold
the assembly in place. The assembly for both sides
is one piece. The entire piece must be removed to
replace any bulbs.
