Taillamps, Turn Signal, and
Stoplamps
1. Open the trunk. Turn the screws located just inside
of the trunk counterclockwise and remove them.
2. Remove the plastic trim piece from the trunk.
3. Pull the carpet away from the rear area to access
the turn signal bulb assembly.
4. Loosen and remove the bolts that hold the assembly
in place.
5. Pull out the bulb assembly.

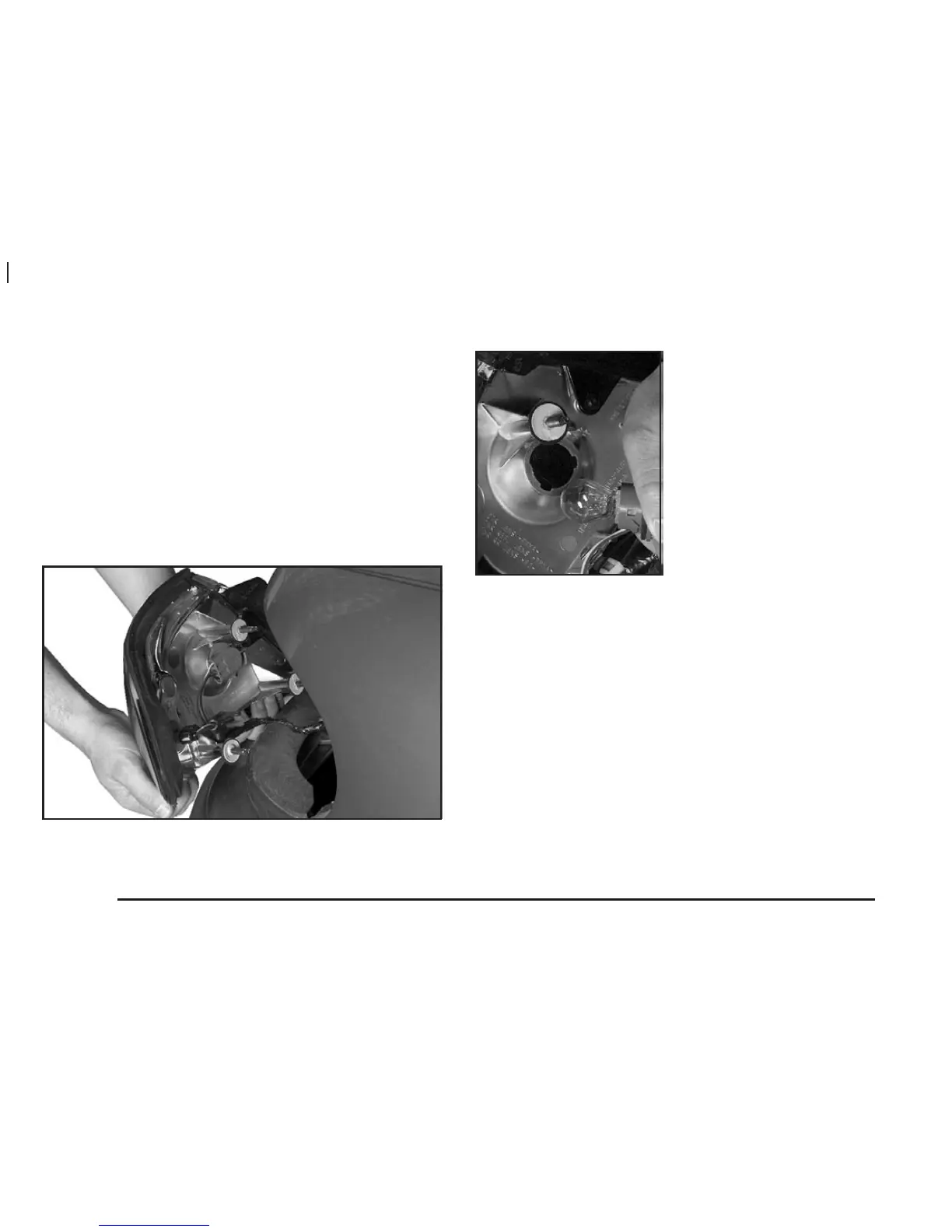

6. Turn the bulb socket
one-quarter turn
counterclockwise, while
pressing it firmly.
7. Pull the bulb socket straight out of the assembly.
8. Remove the old bulb by pulling it straight out.
9. Replace with a new bulb by pushing the bulb
straight into the socket until the bulb clicks into
place.
10. Turn the bulb socket one-quarter turn into the
assembly to lock it back into place.
11. Reverse Steps 1 through 5 to reinstall the bulb
assembly.
5-54
