Front Turn Signal Lamps

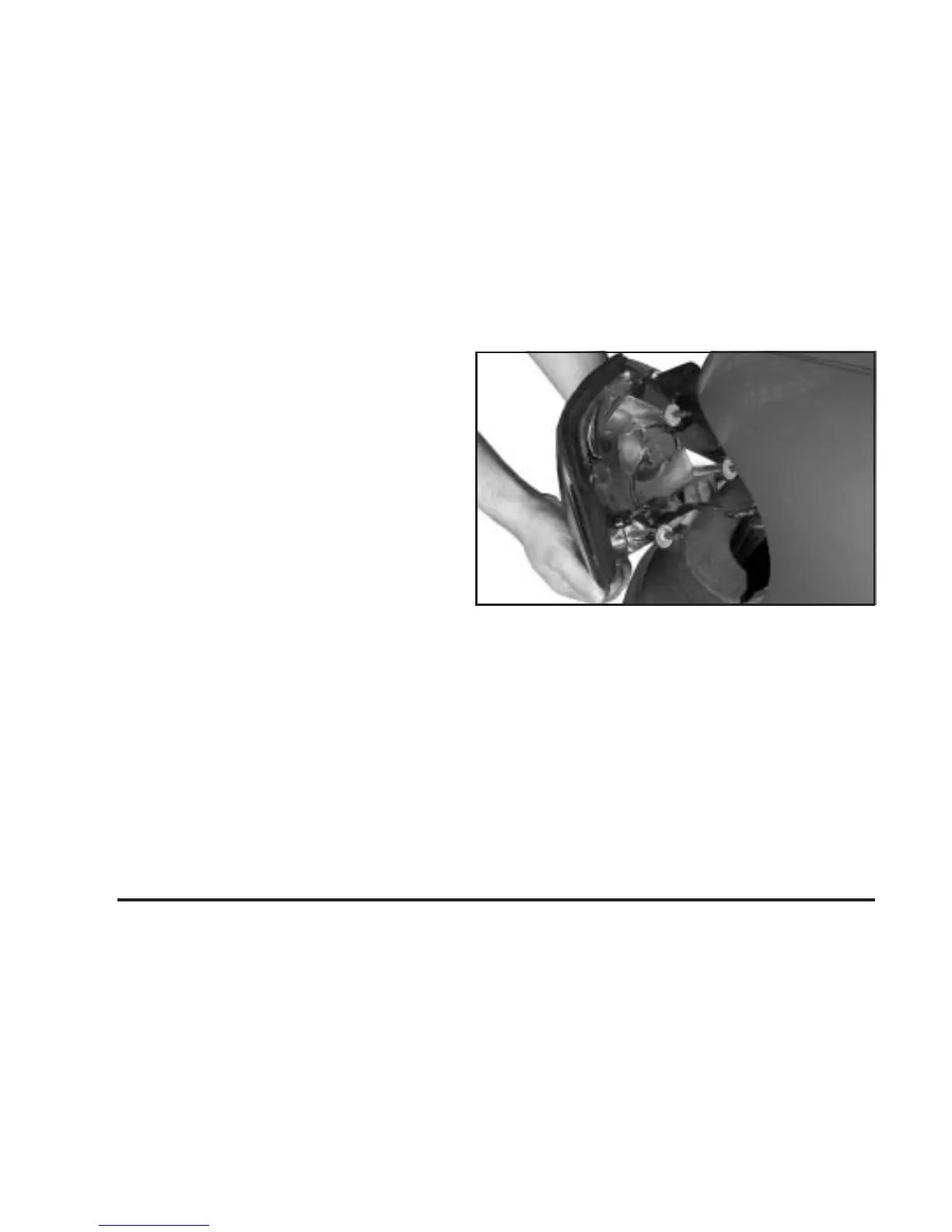

1. Follow Steps 1 through 3 under Headlamps on
page 5-49 to remove the headlamp assembly
2. Reach down into the space provided by the
removal of the headlamp assembly and, while
pushing in the tab on the bulb assembly, turn the
assembly counterclockwise and remove it.
3. Remove the old bulb by pulling it straight out of
the retainer.
4. Install the new bulb and turn the bulb assembly
back into place.
Taillamps, Turn Signal, and
Stoplamps
1. Open the trunk. See Trunk on page 2-14 for
more information.
2. Turn the screws located just inside of the trunk
counterclockwise and remove them.
3. Remove the plastic trim piece from the trunk.
4. Pull the carpet away from the rear area to access
the turn signal bulb assembly.
5. Loosen and remove the bolts that hold the lamp
assembly in place.
6. Pull out the lamp assembly.
5-50
