Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and in the fuse block wiring itself. This greatly reduces
the chance of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Make sure a
bad fuse is replaced with a new one of the identical
size and rating.

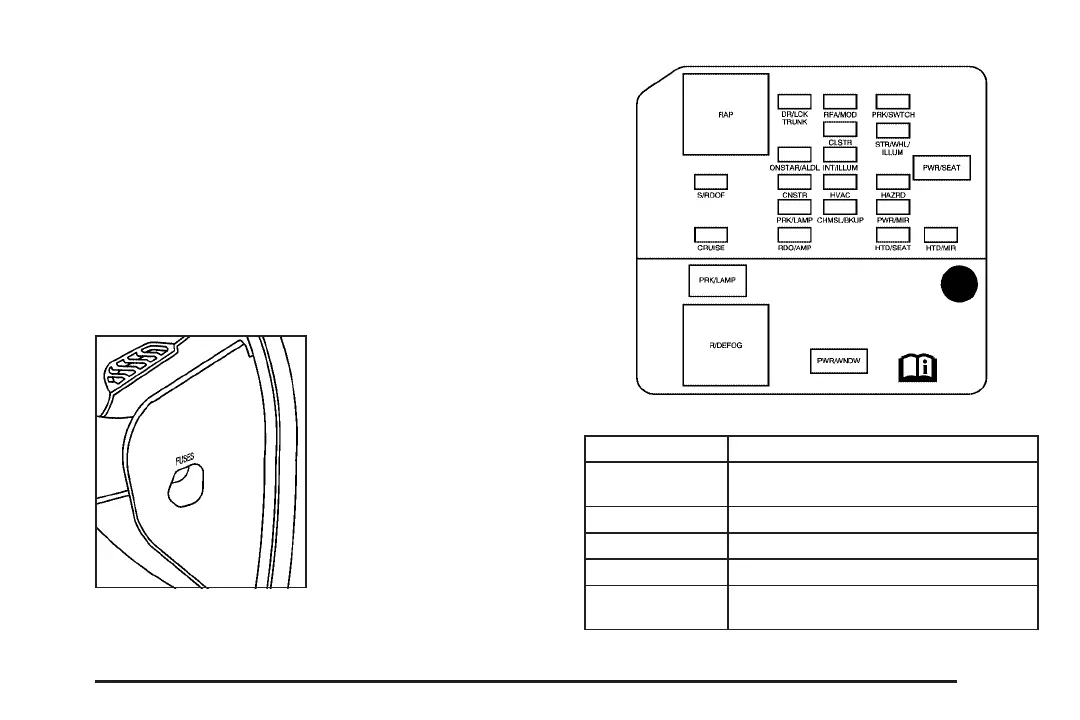

Instrument Panel Fuse Block
The instrument panel
fuse block is located on
the passenger side
of the instrument panel.
Pull off the cover labeled
FUSES to expose the
fuse block.
Fuses Usage
DR/LCK
TRUNK
Door Locks, Trunk
RFA/MOD Remote Keyless Entry
PRK/SWTCH Ignition Key Lock
CLSTR Cluster
STR/WHL/
ILLUM
Steering Wheel Controls Illumination
