Vehicle Care 10-41
Mini Fuses Usage
60 Heated Mirror
62 Canister Vent
64 AFL Battery
65 Theft Deterrent Horn
67
Fuel System Control
Module
69
Regulated Voltage
Control Sensor
70
Ultrasonic Park
Assist/Side
Blind Zone
Mini Relays Usage
7
Engine Control
Module
9 Cooling Fan
13 Cooling Fan
15 Run / Crank
17
Rear Window
Defogger
Micro
Relays
Usage
2 Starter
4 Wiper Speed
5 Wiper Control
10 Cooling Fan
14
Headlamp
Low Beam

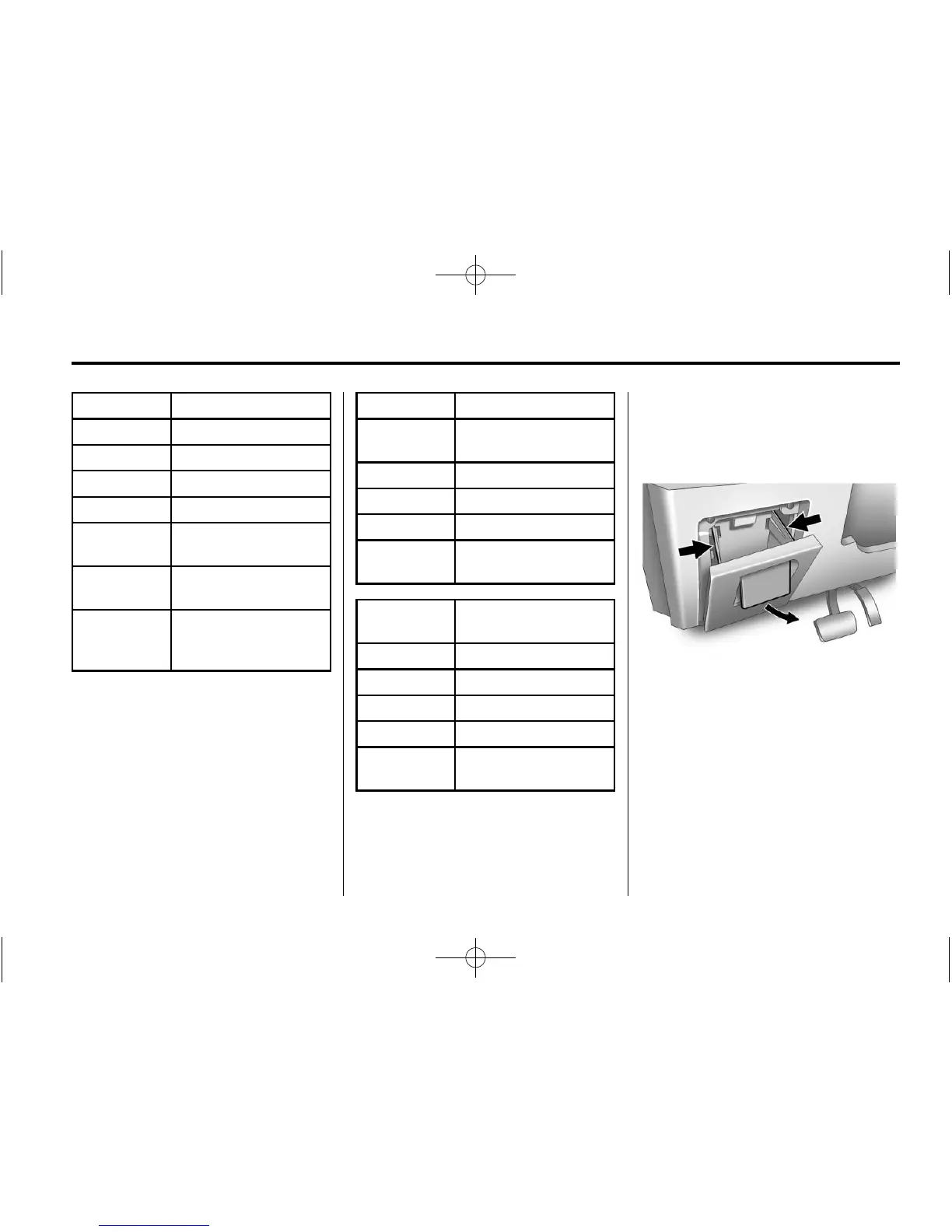

Instrument Panel Fuse
Block
The instrument panel fuse block is
located in the instrument panel,
on the driver side of the vehicle.
To access the fuses, open the fuse
panel door by pulling down at
the top.
Press in on the sides of the door to
release it from the instrument panel.
