284 Vehicle Care

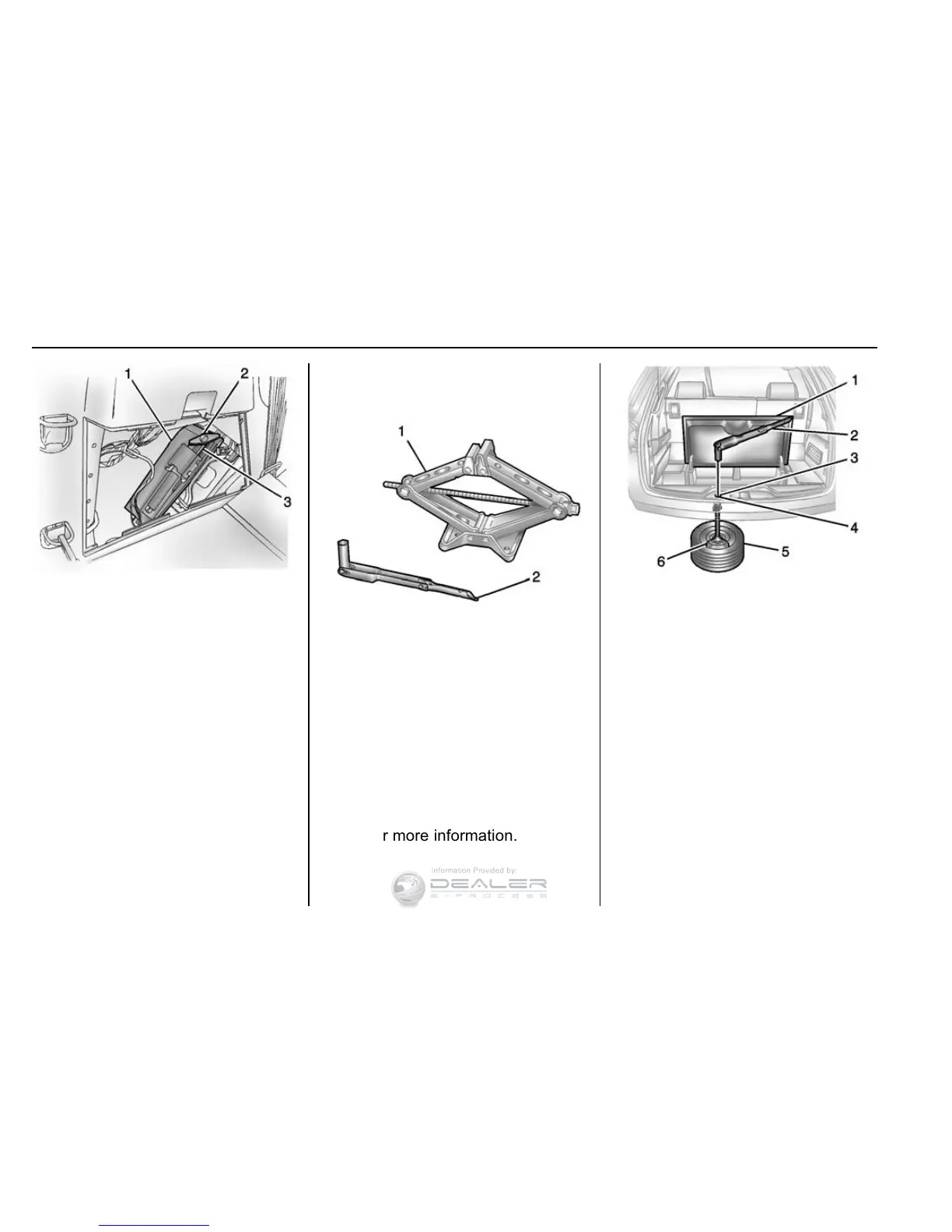

1. Tool Bag
2. Wing Bolt
3. Jack
1. Open the jack storage
compartment by pulling on the
latch tab, located toward the
rear of the vehicle, and pulling
the cover off.
2. Remove the wing bolt (2) by
turning it counterclockwise.
3. Push the jack (3) up out of the
holding bracket and remove
the tool bag (1).
4. Turn the jack on its side, with
the bottom facing toward you.
5. Pull the jack straight out,
bottom first.
1. Jack
2. Wrench (Three-Piece
Shown, One-Piece Similar)
The tools you will be using include
the jack (1) and wrench (2).
Removing the Spare Tire
The compact spare tire is located
under the vehicle, in front of the rear
bumper. See Compact Spare Tire
0 291 for more information.
1. Rear Convenience Center
2. Wrench (Three-Piece
Shown, One-Piece Similar)
3. Carpet Cutout
4. Hoist Shaft
5. Compact Spare Tire
6. Retainer
1. Open the storage compartment
door of the convenience
center (1) that is nearest the
liftgate.
2. Open the carpet cutout (3) that
is located through the hole of
the storage compartment.
3. Attach the wrench (2) into the
hoist shaft (4).
To Next Page
