10-34 Vehicle Care
Headlamps, Front Turn
Signal and Parking
Lamps
Base Headlamp Assembly
The base model vehicle has a
halogen high-beam headlamp,
a low-beam/Daytime Running
Lamp (DRL) headlamp, and a
turn signal/parking lamp on the
headlamp assembly.
To replace one of these bulbs:
1. Open the hood. See Hood on
page 10‑5.

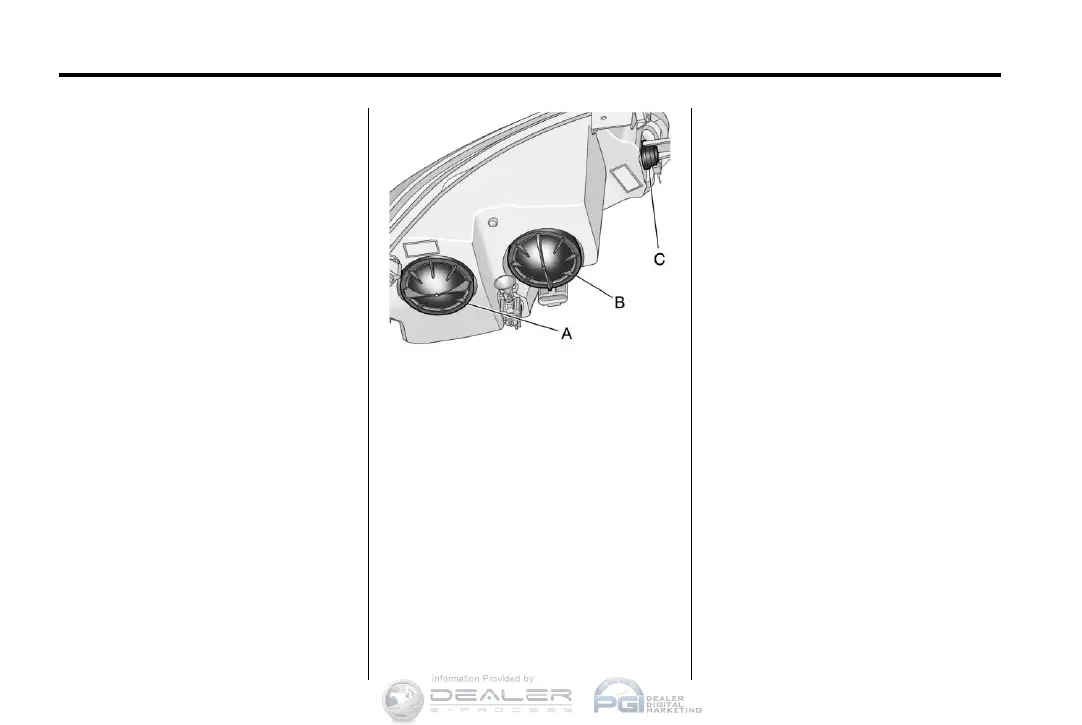

A. Low-Beam Headlamp/DRL
B. High-Beam Headlamp
C. Parking/Turn Signal Lamp
2. If replacing a headlamp bulb,
remove the dust cover from the
back of the headlamp housing
by turning counterclockwise
one‐quarter turn.
3. Remove the bulb socket
from the headlamp by
turning counterclockwise
one‐quarter turn.
4. Remove the bulb from the
socket. If replacing the
high/low‐beam bulb, pry the
two clips on either end of the
bulb and pull straight out.
5. Install the new bulb in the
socket.
