Vehicle Care 257
J-Case
Fuses
Amps Usage
20 30A Rear power
window
21 40A Rear
electrical
center
23 – Empty
27 50A Spare
28 – Empty
29 30A Electric
parking brake
30 60A Antilock
brake
system pump
42 40A Engine
cooling fan
(RPO LEA)
43 30A Front wipers
44 – Empty
45 30A Engine
cooling fan
(RPO LEA)
48 60A Engine
cooling fan
Relays Usage
1 Empty
2 Starter
3 Engine control
powertrain
4 Rear window
defogger
5 Empty
6 High-beam
headlamps
7 Spare
8 Empty
9 Spare
10 EGR/Coolant pump/
AIR solenoid valve
11 Engine cooling fan
(RPO LEA)
12 Engine cooling fan
(RPO LEA)
13 Engine cooling fan
(RPO LEA)
14 Run/Crank

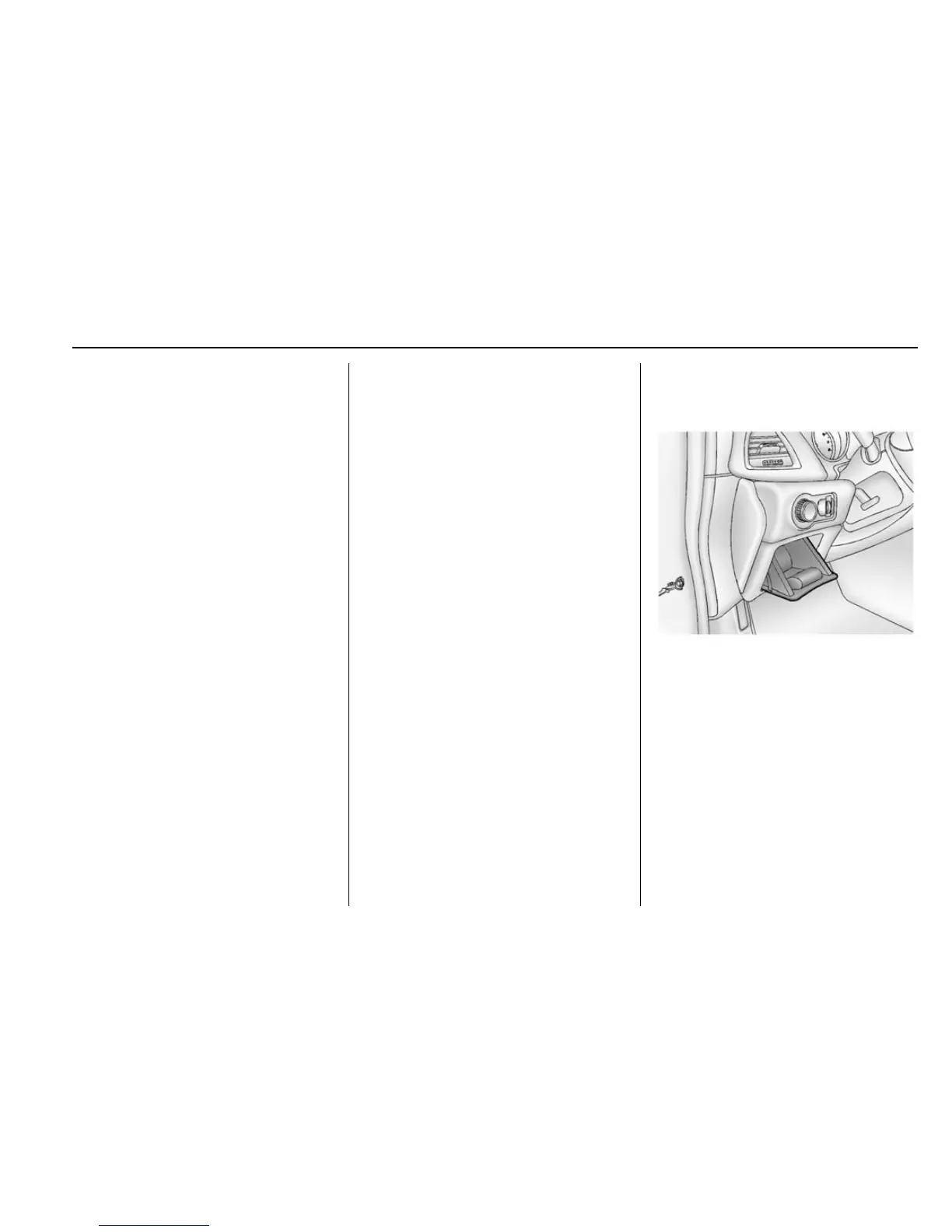

Instrument Panel Fuse
Block
The instrument panel fuse block is
on the driver side of the instrument
panel. To access the fuses:
1. Access the fuse block by
opening the storage
compartment.
2. Pull straight down and out to
remove the storage
compartment.
3. Remove the cover.
To reinstall the cover, line up the
retainers and push into place.
