BuildMark 3255BM 1/2 HP - Repair Parts; Rail Assembly Parts; Installation Parts

1
3
4
5
6
2
33

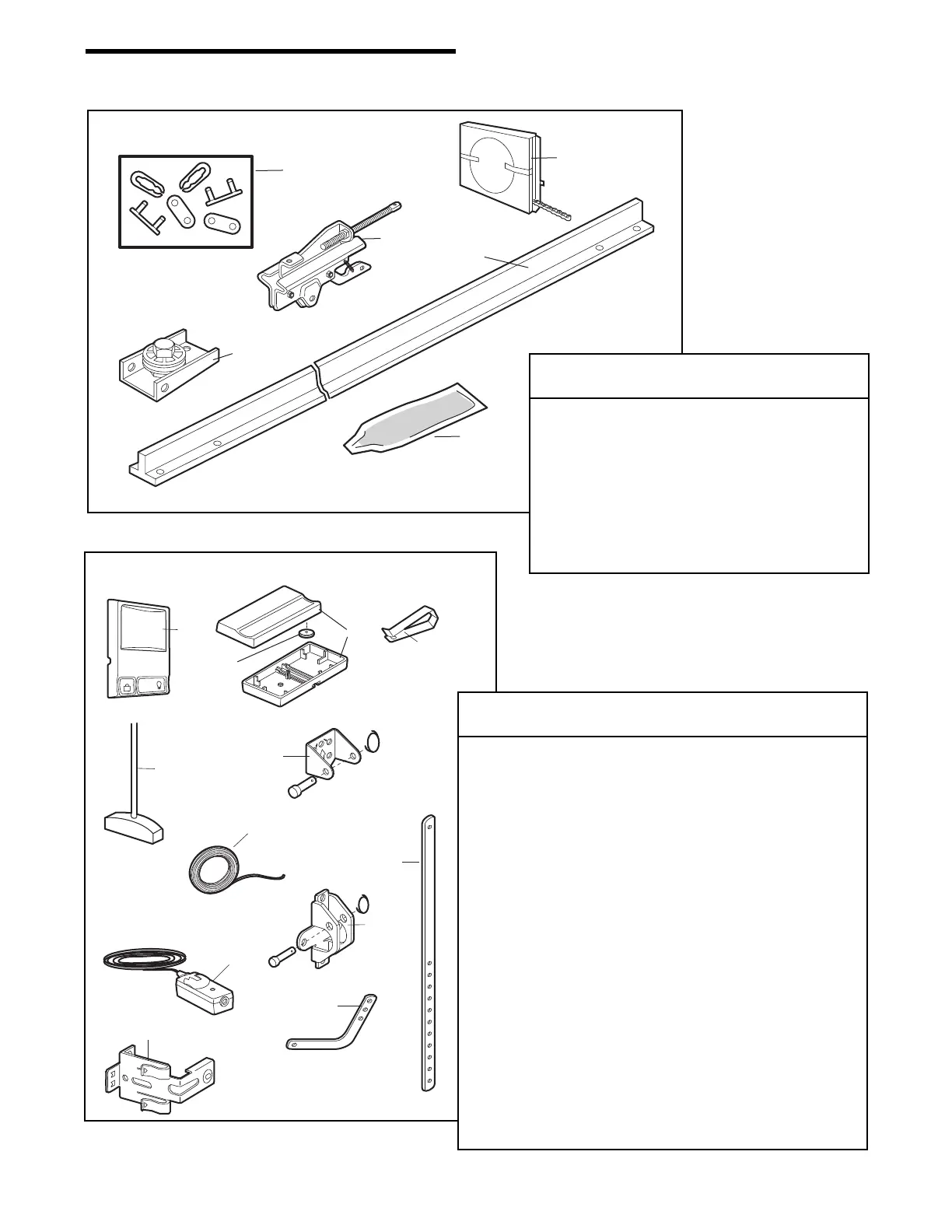

REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41A4813 Chain pulley bracket
3 41A3489 Complete trolley assembly
4 1707LM One-piece rail 7' (2m)
1708LM One-piece rail 8' (2.4m)
1710LM One-piece rail 10' (3m)
5 41D3484 Full chain assembly
6 83A11-2 Rail grease
7
UP
CEILING MOUNT ONLY
9
10
NOTICE
5
6
8
4
11
12
1
LOCK
LIGHT
3
2
Installation Parts
KEY PART
NO. NO. DESCRIPTION
1 78LM Multi-function door control panel
2 371BM 1 Button remote control
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope & handle
assembly
6 41B4494-1 2-Conductor bell wire, white & white/red
7 41A4353 Header bracket w/clevis pin & fastener
8 41A5047 Door bracket w/clevis pin & fastener
9 178B35 Curved door arm section
10 178B34 Straight door arm section
11 41A5034 Safety sensor kit (receiving and
sending eyes) with 3' (.9 m)
2-conductor bell wire
12 41A5266-1 Safety sensor brackets (2)
NOT SHOWN
41A2770-6 Installation hardware bag
(includes hardware listed on page 5).
114A3668 Owner’s manual
114A3668SP Owner’s Manual - Spanish
