BulbHead BLU TIGER - Assembly Instructions; Step-by-Step Assembly Process

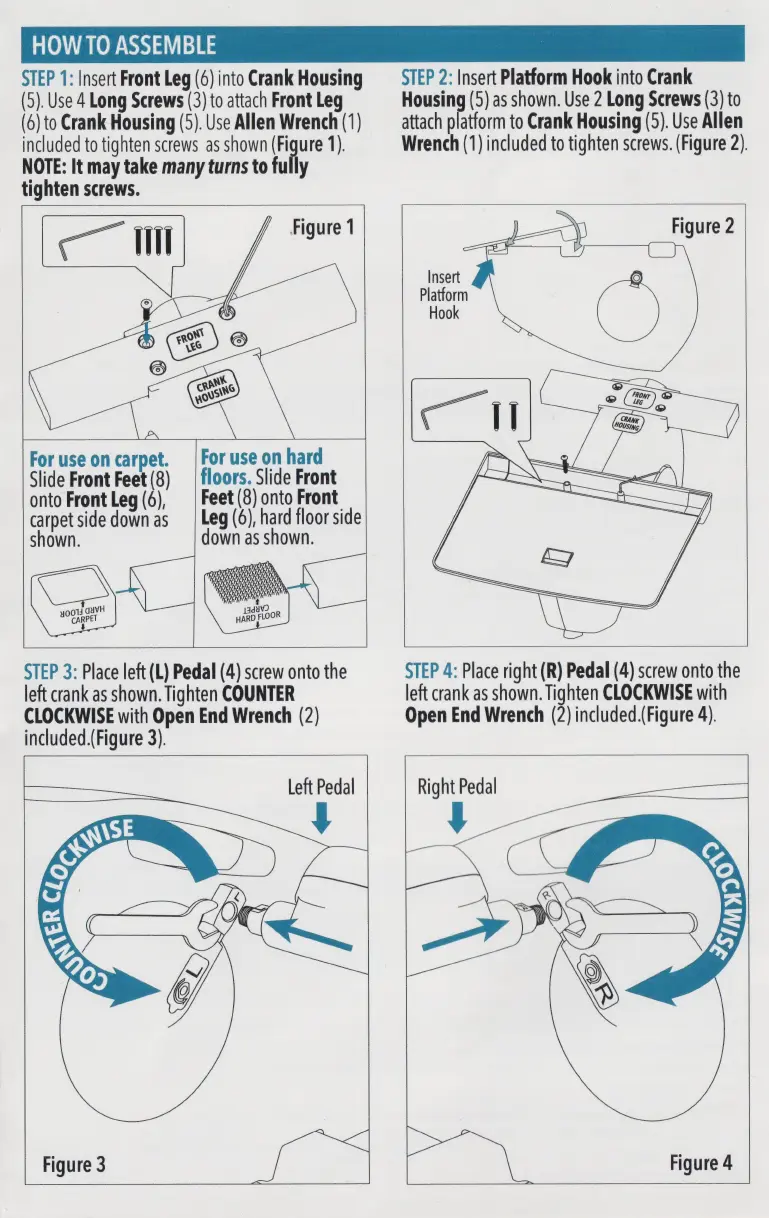

HOW TO ASSEMBLE
STEP 1: Insert Front Leg (6) into Crank Housing
(5). Use 4 Long Screws (3) to attach Front Leg
(6) to Crank Housing (5). Use Allen Wrench (1)
included to tighten screws as shown eave 1).
NOTE: It may take many turns to fully
tighten screws.
Figure 1
For use on hard
floors. Slide Front
Feet (8) onto Front
Leg (6), hard floor side
down as shown.
t
q4 GUVH add
aooi RPET HARD FLOOR
STEP 3: Place left (L) Pedal (4) screw onto the
left crank as shown. Tighten COUNTER
CLOCKWISE with Open End Wrench (2)
included.(Figure 3).
Left Pedal
o ZOT
A
Figure 3
STEP 2: Insert Platform Hook into Crank
Housing (5) as shown. Use 2 Long Screws (3) to
attach platform to Crank Housing (5). Use Allen
Wrench (1) included to tighten screws. (Figure 2).
Figure 2
o=
STEP 4: Place right (R) Pedal (4) screw onto the
left crank as shown. Tighten CLOCKWISE with
Open End Wrench (2) included.(Figure 4).
Right Pedal
Figure 4
