ELECTRICAL REQUIREMENTS
Refer to Data Plate on the Grinder, and local/national electrical codes to determine circuit requirements.
This grinder has an attached cordset and requires 2-wire, grounded service rated:
120 volts ac, 15 amp, single phase, 60 Hz, for domestic grinders.
220-240 volts ac, 10 amp, single phase, 50 Hz, for most international grinders.
100 volts ac, 15 amp, single phase, for some international grinders.
OPERATING CONTROLS

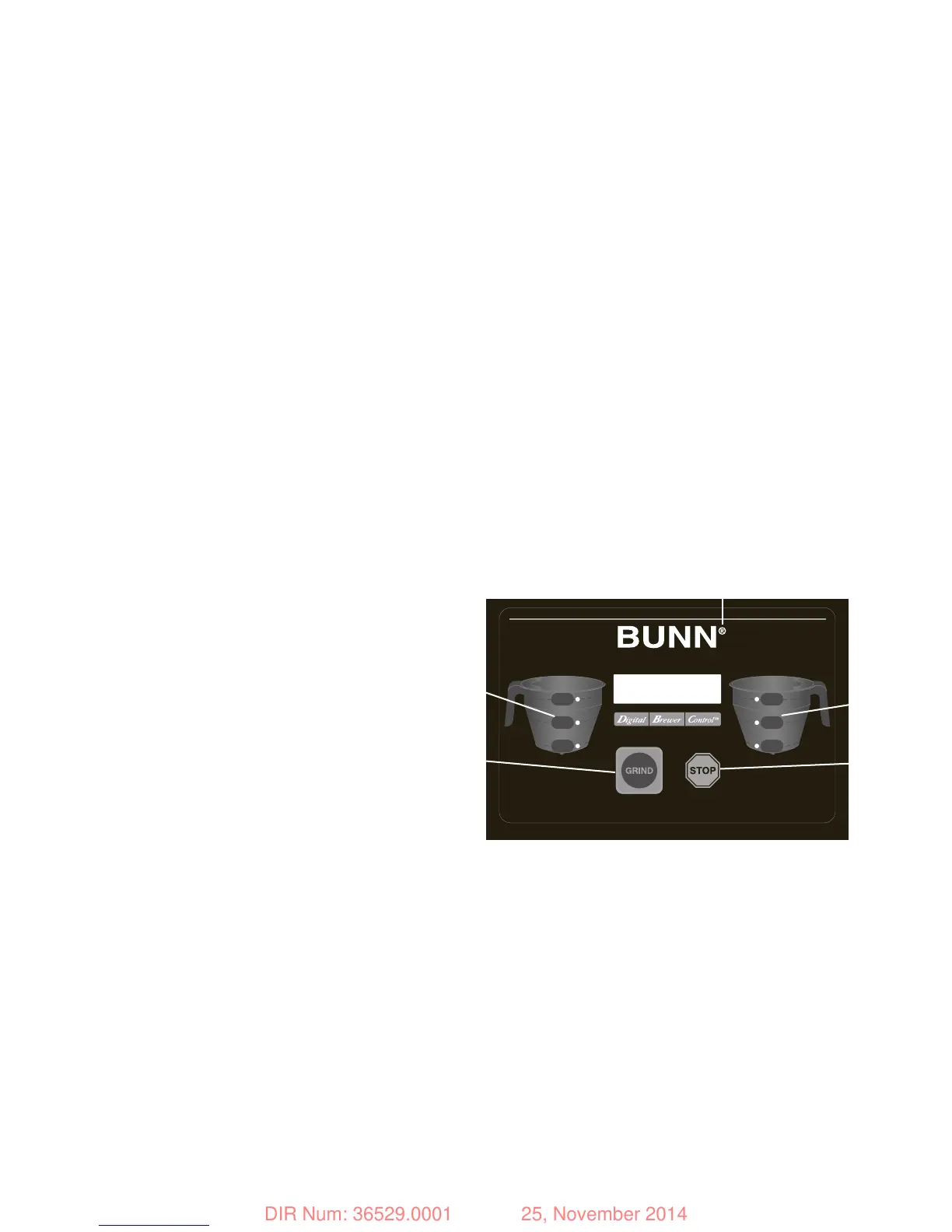

Hopper/Batch Selector Pads (d)
These pads are located on the funnel depictions on each side of the grinder with a total of 6 pads. Selecting one
of these pads will select the amount of grind and side from which to grind.
Example: Selecting the lower pad on the left side will grind enough beans from the left hopper of the grinder to
brew the amount programmed into grinder.
Control Board
The control board determines the amount of beans that will leave the hopper in a grind cycle. The timer portion
can be adjusted to dispense a different amount from each hopper and each batch size. The scale is from 0.4 to
99.9 seconds. Refer to the Adjustments section for timer setting chart (page 9).
36529.1 101514
CE REQUIREMENTS
• This appliance must be installed in locations where it can be overseen by trained personnel.
• For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C.
• Appliance shall not be tilted more than 10° for safe operation.
• An electrician must provide electrical service as specified in conformance with all local and national codes.
• This appliance must not be cleaned by water jet.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given instructions concerning use of
this appliance by a person responsible for its safety.
• Children should be supervised to ensure they do not play with the appliance.
• If the power cord is ever damaged, it must be replaced by the manufacturer or authorized service personnel with
a special cord available from the manufacturer or its authorized service personnel in order to avoid a hazard.
• Machine must not be immersed for cleaning.
Grind Pad (a)
Pressing initiates a timed grind cycle.
Stop Pad (b)
Pressing ends the operation of the grinder.
® PAD (c)
Pressing the ® pad allows programming access
(see page 8).
RELEASED FOR PRODUCTION
DIR Num: 36529.0001 25, November 2014
