Page 16

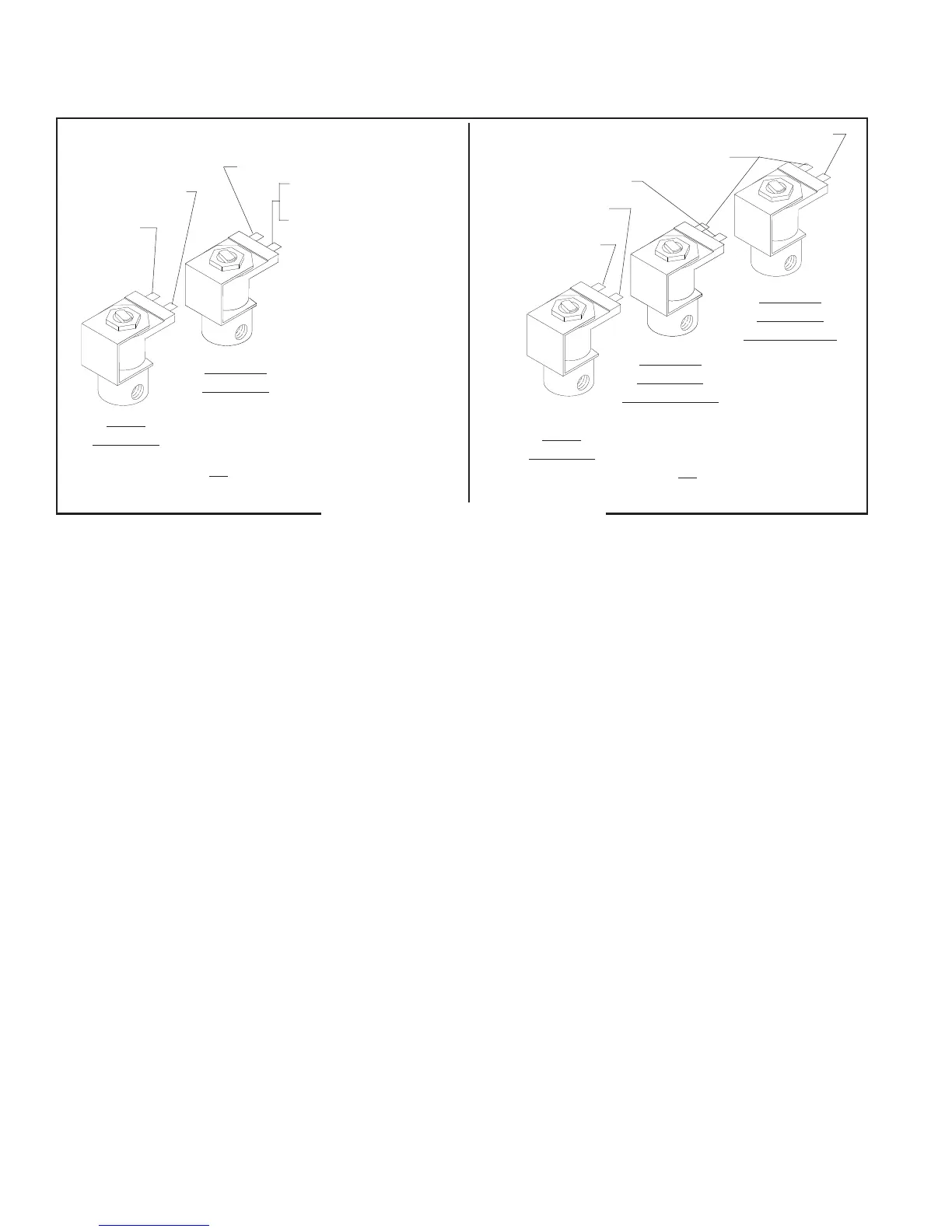

FIG.3 SOLENOID VALVE TERMINALS
P1834
SERVICE (cont.)
BREW
SOLENOID
BREW
SOLENOID
DILUTION
SOLENOID
RT RESERVOIR
DILUTION
SOLENOID
LT RESERVOIR
DILUTION
SOLENOID
WHI/BLU to Dilution Timer TL4
BRN/BLK to Selector Switch
YEL to Selector Switch
WHI/GRN to Brew
Timer TL4
WHI/VIO to Brew
Timer TL1
T6
WHI/BLU to Dilution Timer TL4
WHI/VIO to Brew Solenoid
WHI/VIO to Brew Timer TL1
WHI/GRN to BREW
Timer TL4
WHI/VIO to
Dilution
Solenoid
T3
BREW SOLENOID VALVE (cont.)
10145 072600
15
17
Table of Contents
Table of Contents
2
Introduction
2
Warranty
2
User Notices
3
Electrical Requirements
4
Plumbing Requirements
4
Initial Set-Up
5
Adjusting Brew Volumes
6
Operating Controls
6
Cleaning
7
Tea Brewing
7
Troubleshooting
8
Service
14
Brew Solenoid Valve
15
Brew Timer (Early Models)
17
Digital Brew Timer (Late Models)
18
Control Thermostat
20
Dilution Solenoid Valve
21
Dilution Timer
22
Limit Thermostat
23
ON/OFF Switch & Selector Switch
24
Start Switch
26
Tank Heater
27
Wiring Diagrams
28
Wiring Diagrams
30
