Page 19
SERVICE (cont.)
BREW/DILUTION TIMER (TB3 & TB6) (cont.)
Triacs:
TH-1/MV-1 Brew solenoid
TH-2/MV-2 Dilution solenoid

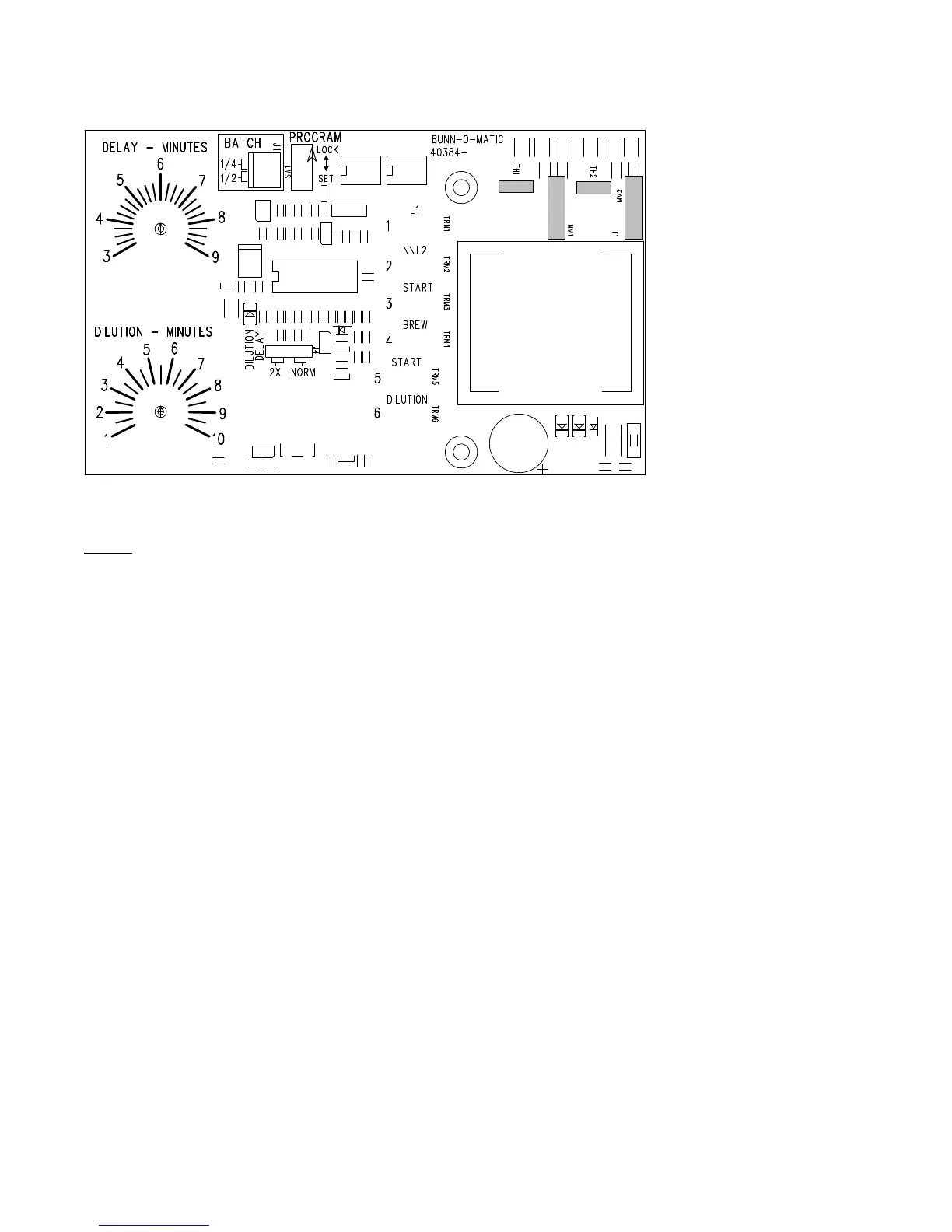

FIG. 19-1 BREW/DILUTION TIMER TRIACS
41722 070209
