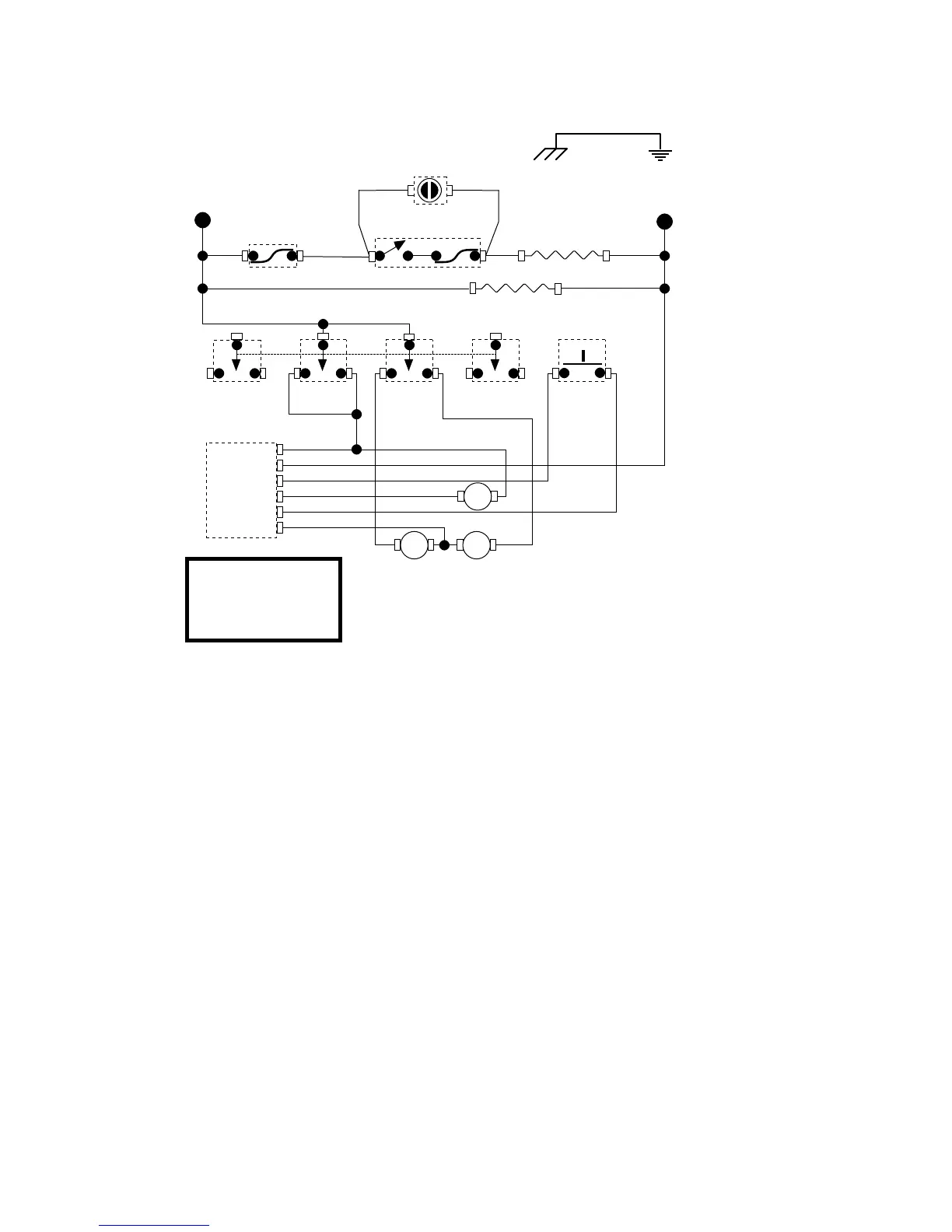

SCHEMATIC WIRING DIAGRAM TB6
WHI/ORN
BRN/BLK
LEFT/OFF/RIGHT SWITCH
SW1B
SW1DSW1CSW1A
TANK HEATER
BLK BLU/BLK
L1
WHI
BLK
BLK
WHI
SW. &
THERMOSTAT
WHI
120 VOLTS A C
2 WIRE
SINGLE PHASE
"KEEP WARM" HEATER
LIMIT
THERMOSTAT
WHI/VIO
WHI/YEL
WHI/BLU
TIMER
5
6
4
3
2
1
WHI/GRN
WHI
N
WHI
41974.0000A 03/09 © 2009 BUNN-O-MATIC CORPORATION
OPTIONAL
READY INDICATOR
BLU BLK
START SWITCH
DILUTION
LEFT RIGHT
BREW
YEL
YEL
SW2A
SOL
SOL SOL
GRN
Chassis Ground Earth Ground
41722 070209
