Page 28
SERVICE (cont.)
SOLENOID
6. Remove the tank inlet tube grommet and dis-
card.
7. Install new tank inlet tube grommet.
8. Install new solenoid assembly.
9. Install liquid level board, shield and secure solenoid
assembly and shield to the component bracket
with a #10-32 screw and flat washer..
10. Install water inlet tube to connector on the sole-
noid.
11. Turn on the water supply to the brewer.
12. Refer to Fig. 23 and reconnect the wires.
BLU from Liquid Level
Board #1
WHI from Main Harness
(120/208V, 120/240V, 380V
and 440V Models)
RED from Main Harness
(208V and 240V Models)
BLK from Main Har-
ness
BLU from Liquid
Level Board #1
EARLY 230V - CE MODELS

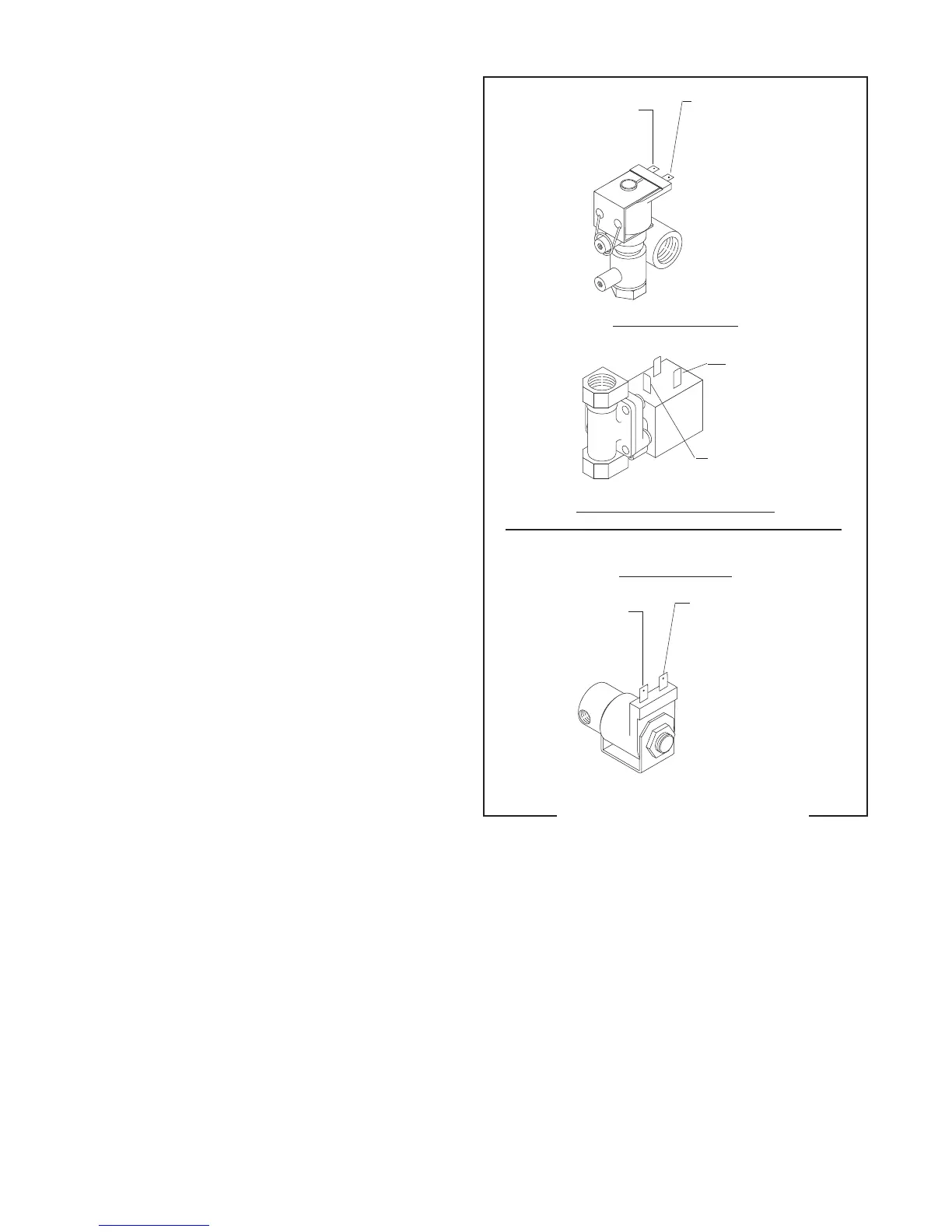

FIG. 23 SOLENOID TERMINALS
P1741
10060 081106
BLU from Liquid Level
Board #1
WHI from Main Harness
(120/208V, 120/240V, 380V
and 440V Models)
RED from Main Harness
(208V and 240V Models)
EARLY MODELS
LATE MODELS
