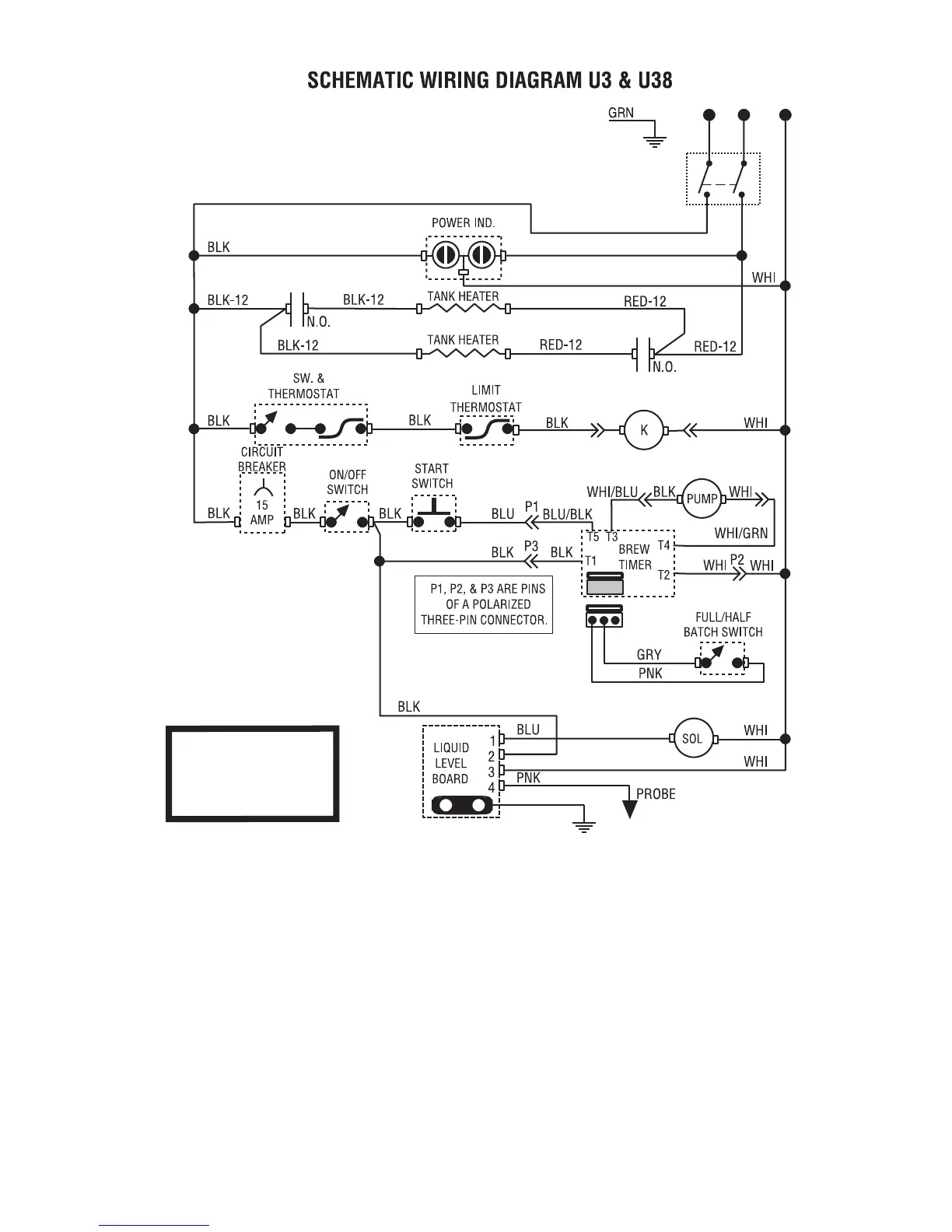

Bunn U3 - Schematic Wiring Diagrams

Page 37
N
L1
L2
WHI
BLK
RED
MAIN ON/OFF SWITCH
(Late Models only)
RED
BLK
10492.0000E 03/07 © 1990 BUNN-O-MATIC CORPORATION
120/208 VOLTS AC
120/240 VOLTS AC
3 WIRE + GND
SINGLE PHASE
10060 011708
