Page 5
ELECTRICAL REQUIREMENTS
CAUTION - The brewer must be disconnected from the power source until specified in Initial Set-Up.
The 120V brewer has an attached cordset and requires 2-wire grounded service rated 120 volts ac, 15 amp,
single phase, 60 Hz.
46720 080415
"A" models require 2-wire, grounded service rated 220 - 240 volts ac, 15
amp, single phase, 50/60 Hz. An all pole disconnect means must be incorporated
in the fixed wiring according to local wiring regulations. Proceed as follows:
Electrical Hook-Up (Model "B" Only)
CAUTION – Improper electrical installation will damage electronic components.
1. An electrician must provide electrical service as specified.
2. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.
3. Place the heater switch, located on the left front of the control panel on "B" Models, in the "OFF" (lower)
position.
4. Remove the front panel beneath the sprayhead.

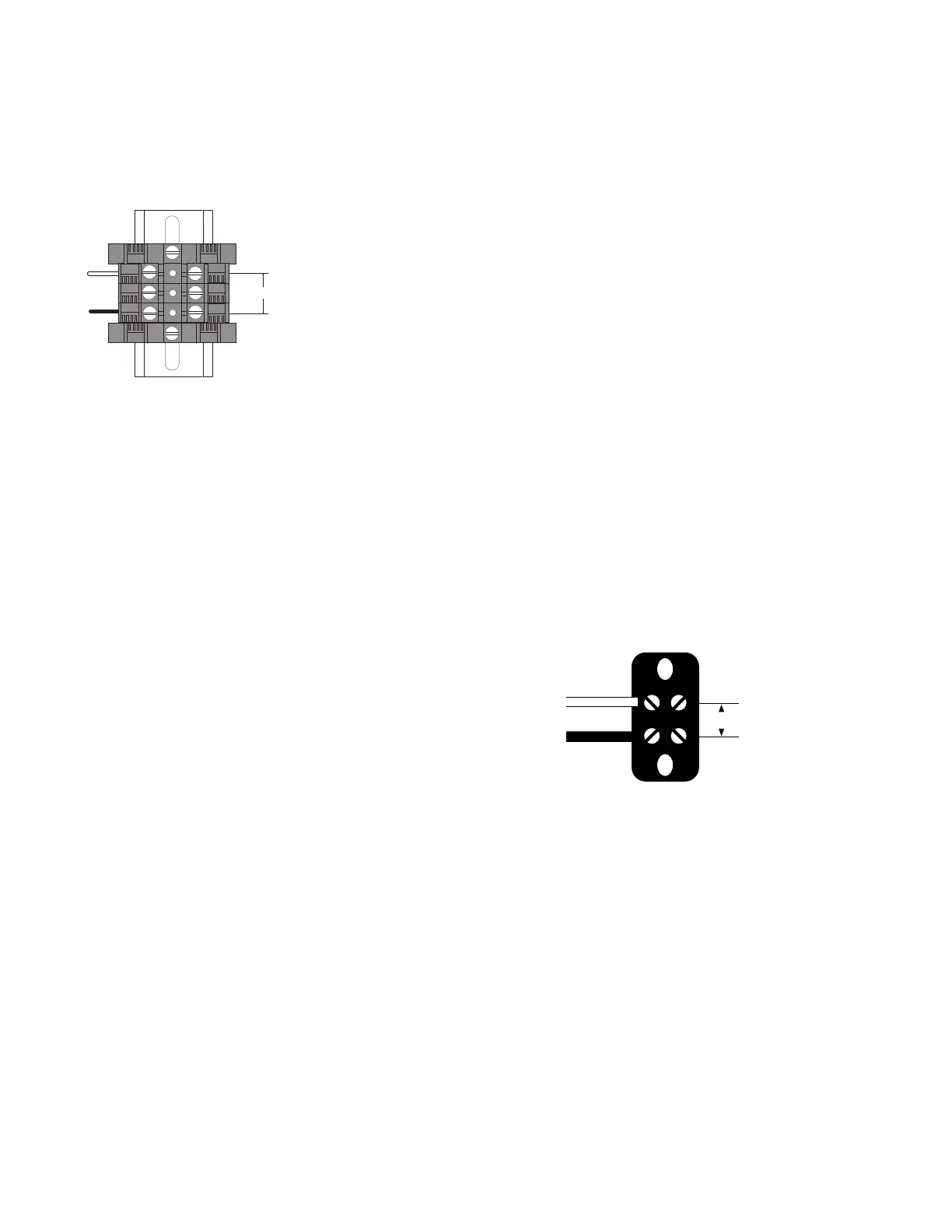

5. Feed the cord through the strain relief and connect it to the terminal block.
6. Connect the brewer to the power source and verify the voltage at the terminal block before proceeding. Re-
place the front panel.
"B" models require 2-wire,
grounded service rated 100 volts
ac, 20 amp, single phase, 50 Hz.
Proceed as follows:
100V.A.C.
WHITE
NEUTRAL
L1 BLACK
P2185
220-240V A.C.
L2 RED
N WHI
L1 BLK
To Next Page
