OPERATION

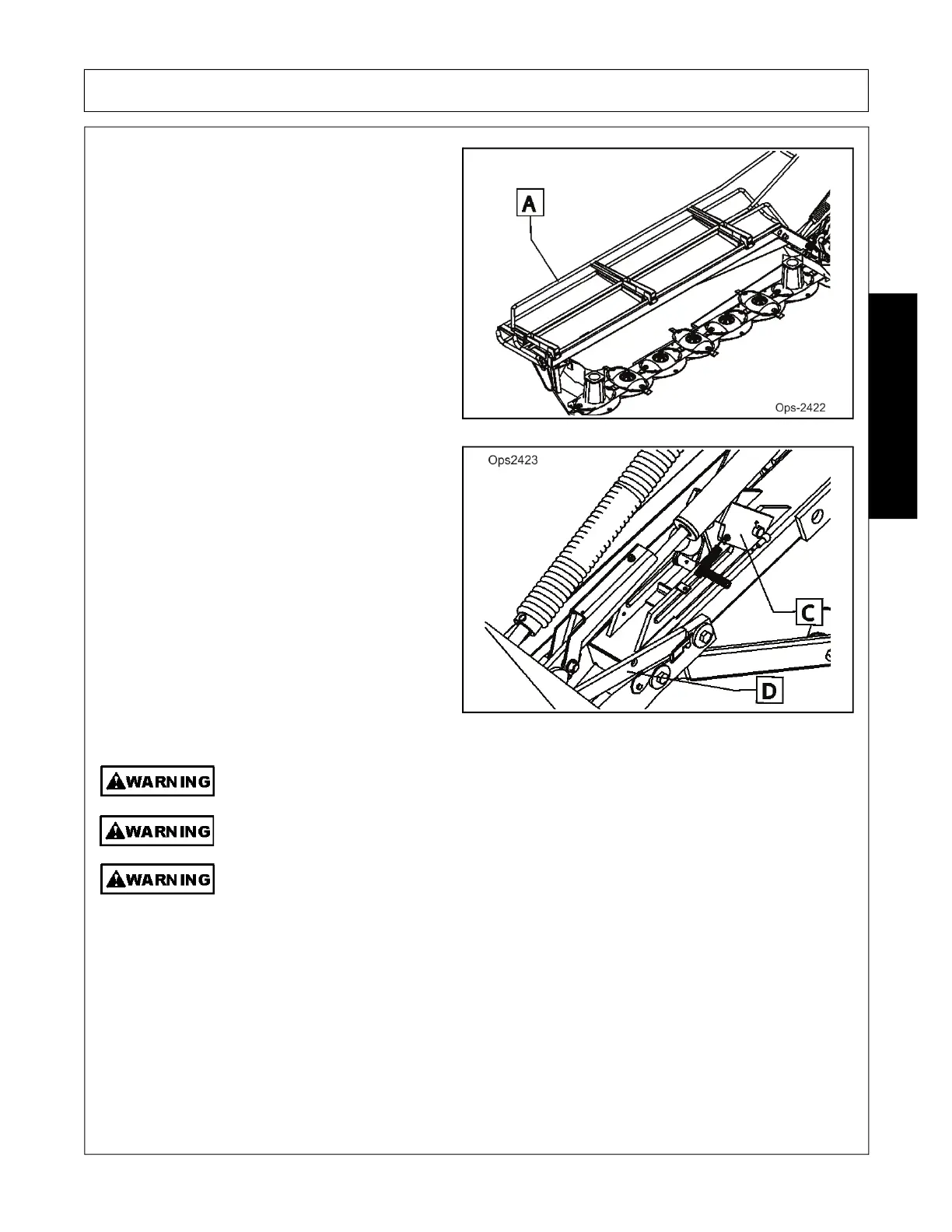

1. With the machine in the work position, detach
the tractor power takeoff and wait until all
moving components have come to a full stop.
2. Flip back the front deflector A.
3. Pull the cord of hook C to free the lifting brace
D. If the lifting brace D is not free in the socket,
lower the tractor’s hydraulic lift until the lifting
brace D is free and then pull the cord of hook C.
4. Raise the machine completely with the tractor
hydraulic lift.
5. Slowly raise the mower bar vertically actuating
the machine’s hydraulic cylinder. Release the
tension of the cord of hook C while raising the
mower bar vertically. This will hook
automatically with the locking hook C.
Pull the cord of hook C (Ops-2453) every time you want to raise the mower bar into the
vertical position. While raising it vertically, release the tension on the cord.
Secure transport lock before transporting mower, otherwise mower head lift cylinder may
leak down resulting in possible injury or death to bystanders.
The total transport height of the machine measured from the ground, must not exceed the
maximum height authorized by highway regulations.
