Bush Hog LOADER 3045 - Page 39

1-20C-15
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

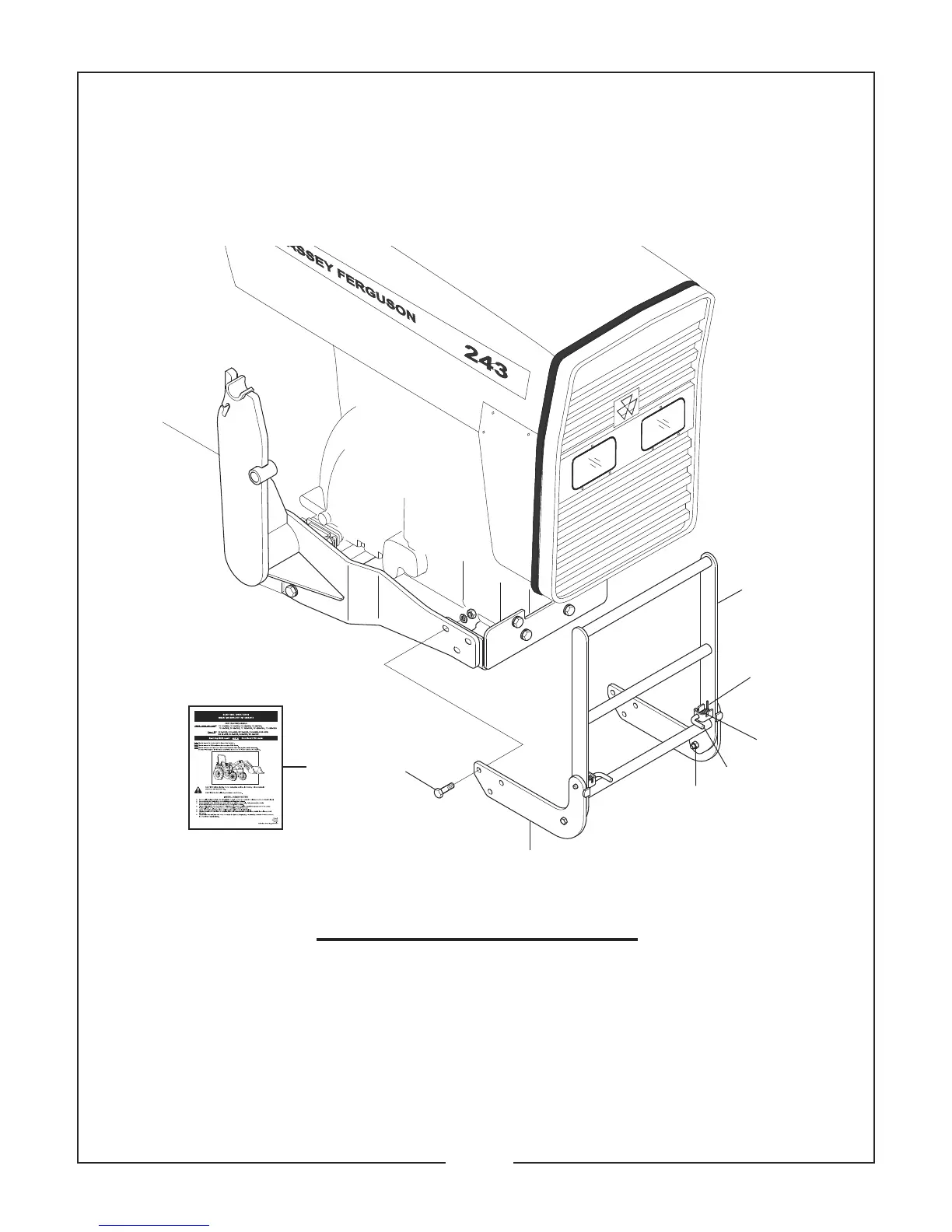

50061712 GRILL GUARD KIT
For 3045 Loader
Tractors Used On: Massey Ferguson 231, 231S, 240, 243, 250, 253, 263
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50061713 1 Grill Guard Weldment
2 50061756 2 Mounting Plate
3 –––– 2 Capscrew 1/2” x 1-3/4”
4 50020921 2 Locknut 1/2”
5 50032700 2 Latch Pin
6 50034114 2 Spring
7 44078 2 Roll Pin 3/16” x 2”
8 –––– 6 Capscrew 5/8” x 2-3/4”
9 50061716 1 Instruction Sheet
8
3, 4
2
1
5
7
6
9
JUNE, 2008
