Bush Hog LOADER 3045 - Page 4

1-20A-2
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

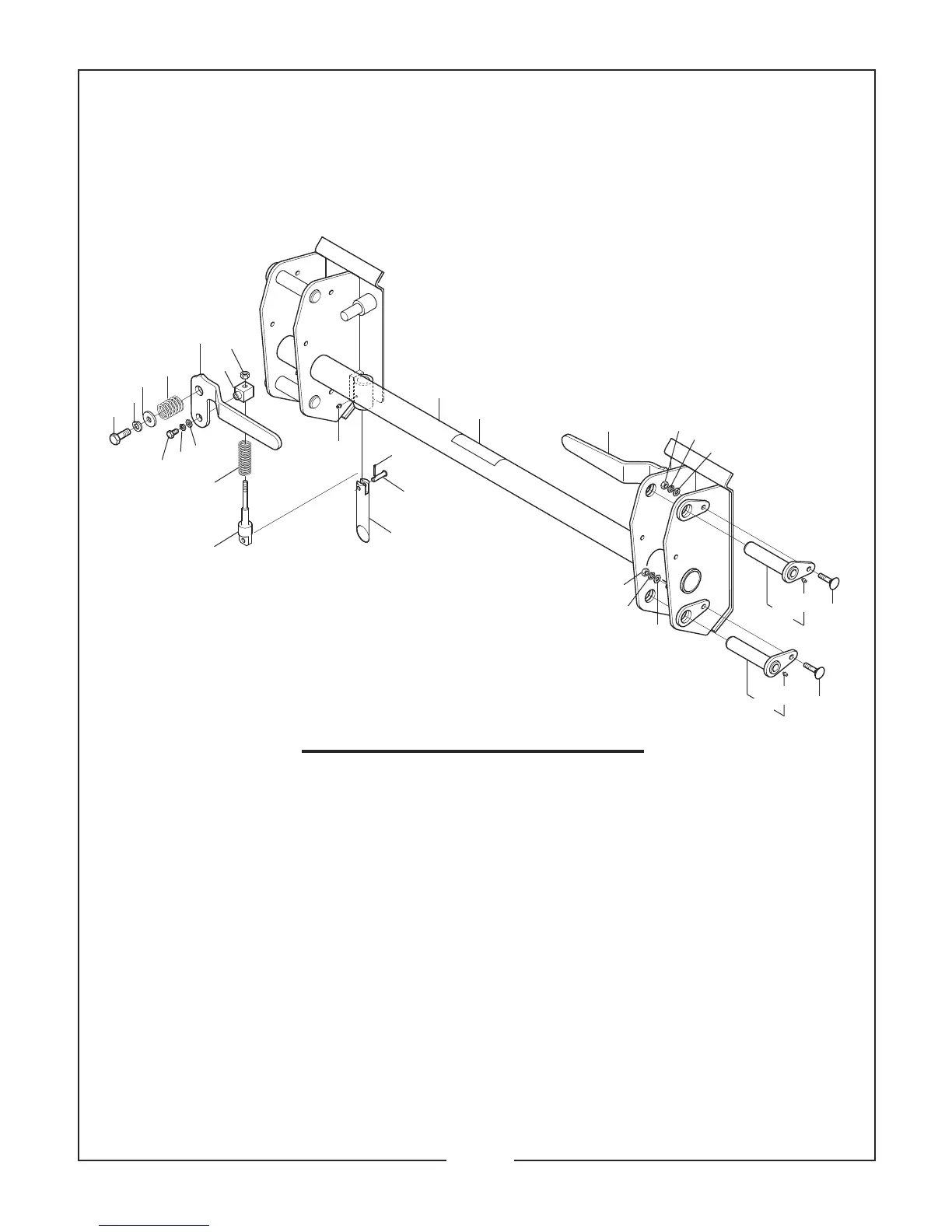

50050980 QUICK ATTACH ASSEMBLY
Used On: 3045 Loader
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50050979 1 Quick Attach Weldment
2 50050999 1 R.H. Handle
3 50050993 2 Spring
4 50050983 2 Pivot Lug
5 50050992 2 Latch Pin
6 50050990 2 Pivot Rod
7 50050994 2 Spring
8 50050998 1 L.H. Handle
9 50050986 2 Flat Washer
10 –––– 2 Lock Washer
11 –––– 2 Cap Screw 1/2” x 1-1/2”
12 –––– 6 Flat Washer 3/8”
13 –––– 6 Lock Washer 3/8”
14 –––– 2 Cap Screw 3/8” x 3/4”
15 50045286 2 Clevis Pin 3/8” x 1-1/2”
16 21020406 2 Cotter Pin 1/8” x 3/4”
17 449 6 Grease Fitting
18 50100907 1 Warning Decal
19 44601 2 Hex Nut 3/8”, Nylon Insert
20 50048425 4 Pin w/Grease Fitting 1.25” x 5.375”
21 44286 4 Carriage Bolt 3/8” x 1-1/2”
22 –––– 4 Hex Nut 3/8”
