Bush Hog LOADER 3045 - Page 63

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50029341 1 Series Valve Decal (50028958 Walvoil Series Valve)
2 50056035 1 Valve Mount
3 50040216 1 Mount Plate, R.H.
4 50040217 1 Mount Plate, L.H.
5 –––– 4 Lockwasher 5/16”
6 –––– 4 Lockwasher 3/8”
7 –––– 2 Lockwasher 1/2”
8 –––– 4 Capscrew 5/16” x 1”
9 –––– 4 Capscrew 3/8” x 1”
10 –––– 1 Capscrew 1/2” x 2-1/4”
11 –––– 1 Capscrew 1/2” x 2-1/2”
12 –––– 4 Hex Nut 3/8”
13 –––– 2 Hex Nut 1/2”
14 –––– 4 Flatwasher 5/16”
15 –––– 1 Flatwasher 3/8”
16 –––– 2 Flatwasher 1/2”
17 50056036 1 Valve Mount Extension
18 50047459 1 Valve Stand Assembly (Mount Plates, Fasteners)
19 50041007 1 Valve Mount Assembly (Valve, Mount, Fasteners)
20 50028958 1 Series Hydraulic Valve (See separate parts list)
21 50043004 1 Decal, Color Code

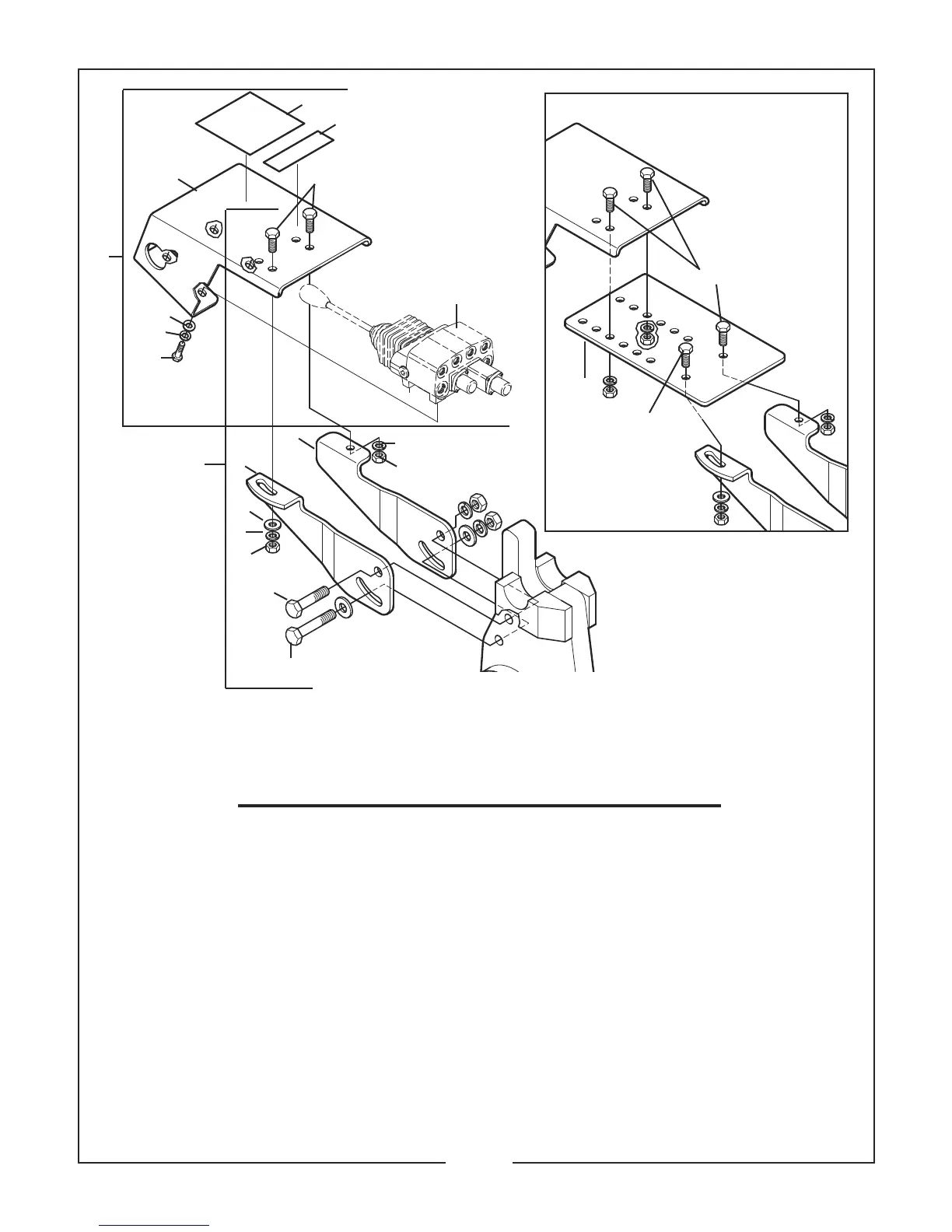

50040210 SERIES VALVE KIT STAND & MOUNT ASSEMBLY
Used on Model 3045 Loader
with Kubota M4700 – M6800 Tractors
9,15,6,12
10,7,13
11,16,16,7,13
9,6,12
17
14
15
12
1
2
3
4
5
6
12
6
8
9
21
19
18
20
VALVE STAND EXTENSION
ASSEMBLY
(OPTIONAL)
1-20G-5
JULY, 2007
