BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20H-1
01-06-06
867-06
Instruction Sheet No. 50049466
R
P.O. Box 1039 Selma, AL 36702-1039 (334) 874-2700
101 Bush Hog Boulevard Telford, TN 37690-2421 (423) 788-7100
• CAUTION: Before leaving tractor seat, stop engine, lock brake, relieve hydraulic pressure, and remove key.
Do
Not allow bystanders in work area.
WARNING
THE LOADER CAN FALL FROM HYDRAULIC
SYSTEM FAILURE. TO AVOID SERIOUS
INJURY OR DEATH, SECURELY SUPPORT
LOADER BEFORE WORKING UNDERNEATH.
CAUTION
USE A PIECE OF CARDBOARD OR WOOD RATHER
THAN HANDS AND WEAR EYE PROTECTION WHEN
SEARCHING FOR HYDRAULIC LEAKS. ESCAPING
HYDRAULIC OIL UNDER PRESSURE CAN PENETRATE
SKIN. IF OIL IS INJECTED INTO SKIN, IT MUST BE
SURGICALLY REMOVED WITHIN A FEW HOURS BY A
DOCTOR OR GANGRENE MAY RESULT.
8
1
2
3
3
4
6
7
7
6
5
REF. PART
NO. NO.
QTY. DESCRIPTION

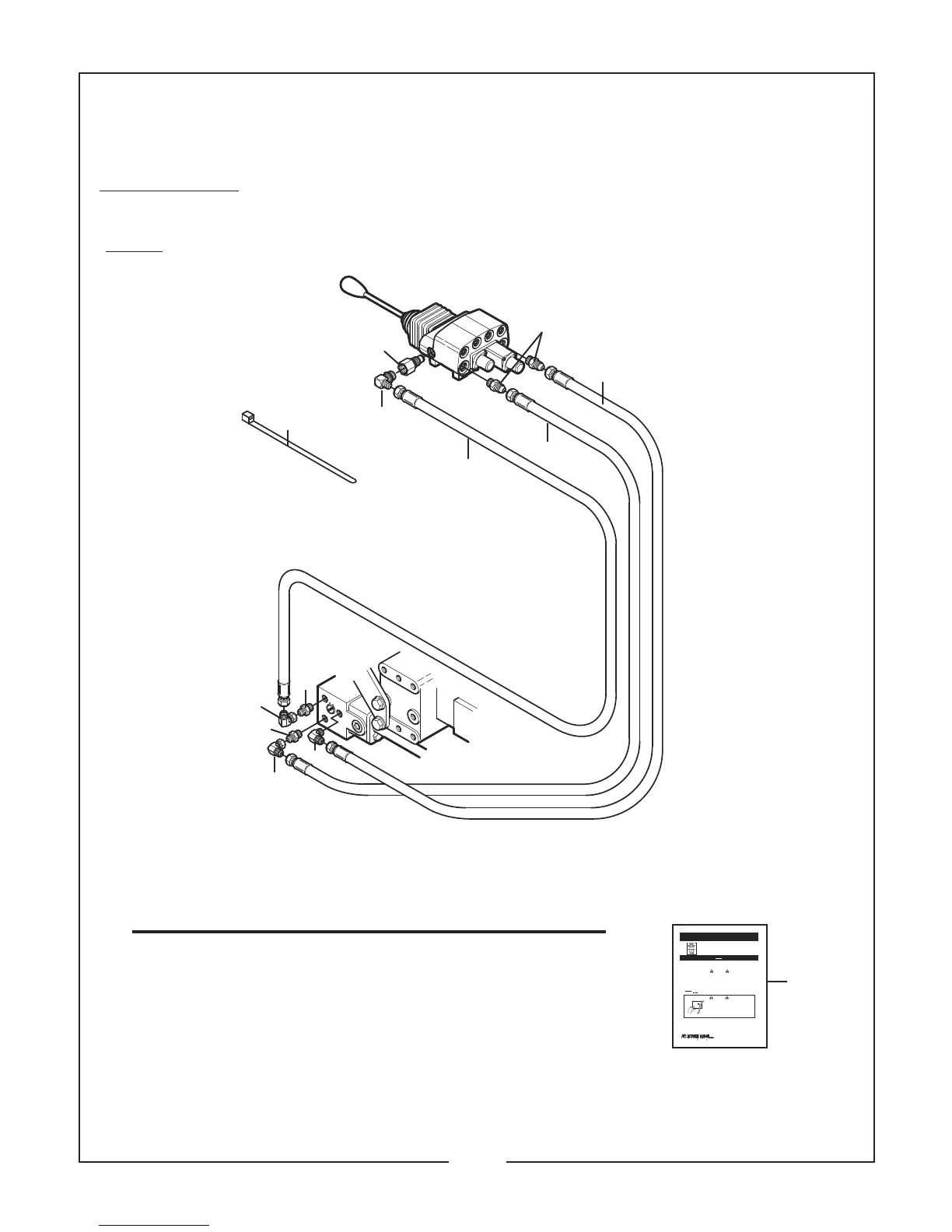

1 52161 4 Cable Tie
2 53338 1 Str. Thread 90° Elbow (9/16” OMR - 9/16” JICMR)
3 6050122 2 Hydraulic Hose 48” (9/16” JICFS - 9/16” JICFS)
4 50006622 1 Hydraulic Hose 47” (9/16” JICFS - 3/4” JICFS)
5 80418 1 Male 90° Elbow (3/8” PMR - 9/16” JICMR)
6 25H43318 2 Male Adaptor (3/8” PMR - 9/16” JICMR)
7 63453 2 Str. Thread 90° Elbow (9/16” JICMR - 9/16” JICFS)
8 50035973 1 Instruction Sheet
50035972 HYDRAULIC ADAPTOR KIT
Used on Model 3045 Loader
Tractor Models:
For
d/New Holland TC35, TC35A, TC35D, TC35DA, TC40, TC40A, TC40D, TC40DA, TC45, TC45A, TC45D,
TC45DA, TC48DA, TC 55DA, T2310, T2320, T2330, T2410, T2420,
Boomer 3040, Boomer 3045, Boomer 3050, Boomer 4055 & Boomer 4060;
Cas
e/IH D35, DX35, D40, DX40, D45, DX45, DX48 Farmall, DX55 Farmall, Farmall 40, Farmall 45 & Farmall 50
Note: Power Beyond Plug is shipped
in the Control Valve package.
Note: Adaptors are shipped with the Control Valve package.
(See valve mount instructions for proper assembly)
