Bush Hog LOADER 3045 - Page 7

1-20B-3
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

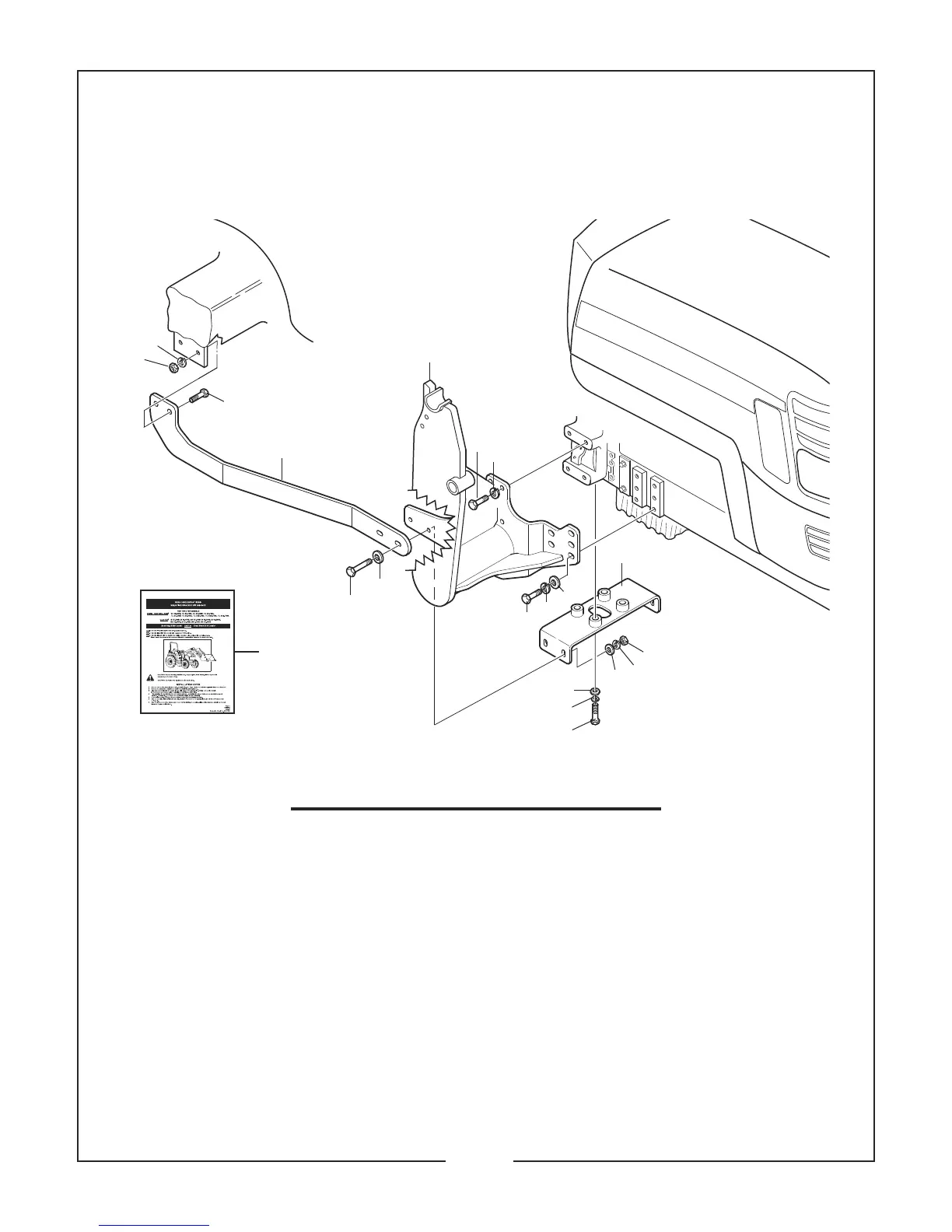

50051154 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON: KUBOTA MX5000-2WD, MX5000-FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50057454 1 R.H. Rear Brace
50057455 1 L.H. Rear Brace
2 50051156 1 R.H. Mounting Bracket
50051157 1 L.H. Mounting Bracket
3 50057442 1 Center Support Weldment
4 –––– 4 Hex Nut 1/2” CP
5 –––– 4 Hex Nut 5/8” CP
6 50020926 12 Flatwasher 1/2” SAE HRD ZP
7 44814 10 Flatwasher 5/8” SAE HRD ZP
8 –––– 4 Lockwasher 1/2” CP
9 –––– 14 Lockwasher 5/8” CP
10 44200 4 Lockwasher M12 ZP
11 44233 8 Lockwasher M14 ZP
12 –––– 4 Capscrew 1/2” x 2 1/2” G5 ZP
13 –––– 4 Capscrew 5/8” x 2” G5 ZP
14 44781 4 Capscrew M12 x 1.25 x 50 G8.8 ZP
15 44396 8 Capscrew M14 x 1.5 x 40 G8.8 ZP
16 44048 10 Capscrew M16 x 1.5 x 40 G8.8 ZP
17 50051155 1 Instruction Sheet
17
9
13
12
6
1
2
15
11
16
9
7
3
4
6
10
14
8
6
5
JULY, 2007
