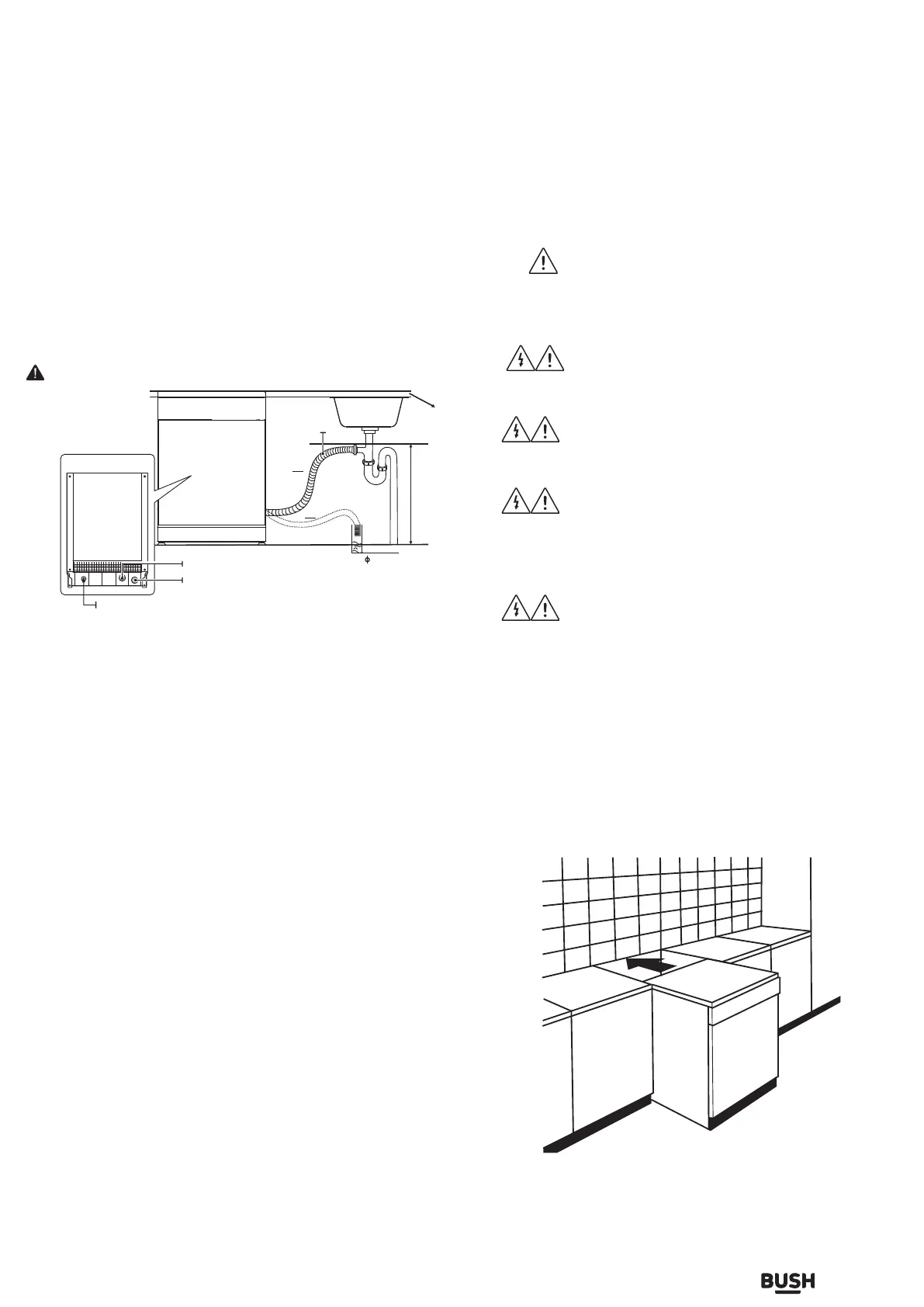

Insert the drain hose into a drain pipe with a minimum
diameter of 4 cm, or let it run into the sink, making sure to avoid
bending or crimping it. The height of drain pipe must
be less than 1000 mm. The free end of the hose must not
be immersed in water to avoid the back flow of it.
Please securely fix the drain hose in either position A or position B.
B
A
MAX 1000 mm
Counter
Drain hose
Back of dishwasher
Water Inlet
Drain Pipe
Mains Cable
40 mm
Drain Pipe
If you need a drain hose extension, make sure to use a similar
drain hose. It must not be longer than 4 meters, otherwise the
cleaning effect of the dishwasher could be reduced.
Syphon connection
The waste connection must be at a height less than 1000
mm(maximum) from the bottom of the dishwasher.
How to drain excess water from hoses
If the connection to the drain pipe is positioned higher than
1000 mm, excess water may remain in the drain hose. It will be
necessary to drain excess water from the hose into a bowl or
suitable container that is held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly
fitted to avoid water leaks. Ensure that the water drain hose
is not kinked or squashed.
Extension hose
3.4 Connection Of Drain Hoses
The earthed plug of the machine must be
connected to an earthed outlet supplied by
suitable voltage and current.
In the absence of earthing installation, an
authorised electrician should carry out an earthing
installation. In the case of use without earthing
installed, we will not be responsible for any loss of
use that may occur.
The plug on this appliance incorporates a 13A fuse.
Installing your Dishwasher
Bringing it all together
17
Installing your Dishwasher
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
WARNING: Your machine is set to operate
at 220-240 V. If the mains voltage supply to your
machine is 110 V, connect a transformer of 110/220
V and 3000 W between the electrical connection.
Connect the product to
a grounded outlet
protected by a fuse complying with the values in
the "Technical Specifications" table".
3.5 Electrical Connection
3.6 Fitting between existing carbinets
The height of the dishwasher, 845 mm, has been
designed in order to allow the machine to be fitted
between existing cabinets of the same height in modern
fitted kitchens. The laminated top of the machine does
not require any particular care since it is heatproof,
scratchproof and stainproof.
