Installing your Dishwasher
Bringing it all together
Installing your Dishwasher
18
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Depending on where your electrical outlet is, you
may need to cut a hole in the opposite cabinet side.
1.
90 °
90 °
580mm580mm
820mm820mm
ectrical, drainElectrical, drain
d water supplyand water supply
lineline onnectionconnection
100100
Space between cabinet
Space between cabinet
bottom and floor
bottom and floor
600 mm(for 60cm model)
450 mm(for 45cm model)
8080
2. If dishwasher is installed at the corner of the cabinet,
there should be some space when the door is opened.
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
NOTE:
Please ensure that the gap between the top of
dishwasher
the cabinet is less than 5mm. And please align the
dishwasher to the cabinet.
a
b
b
3.7

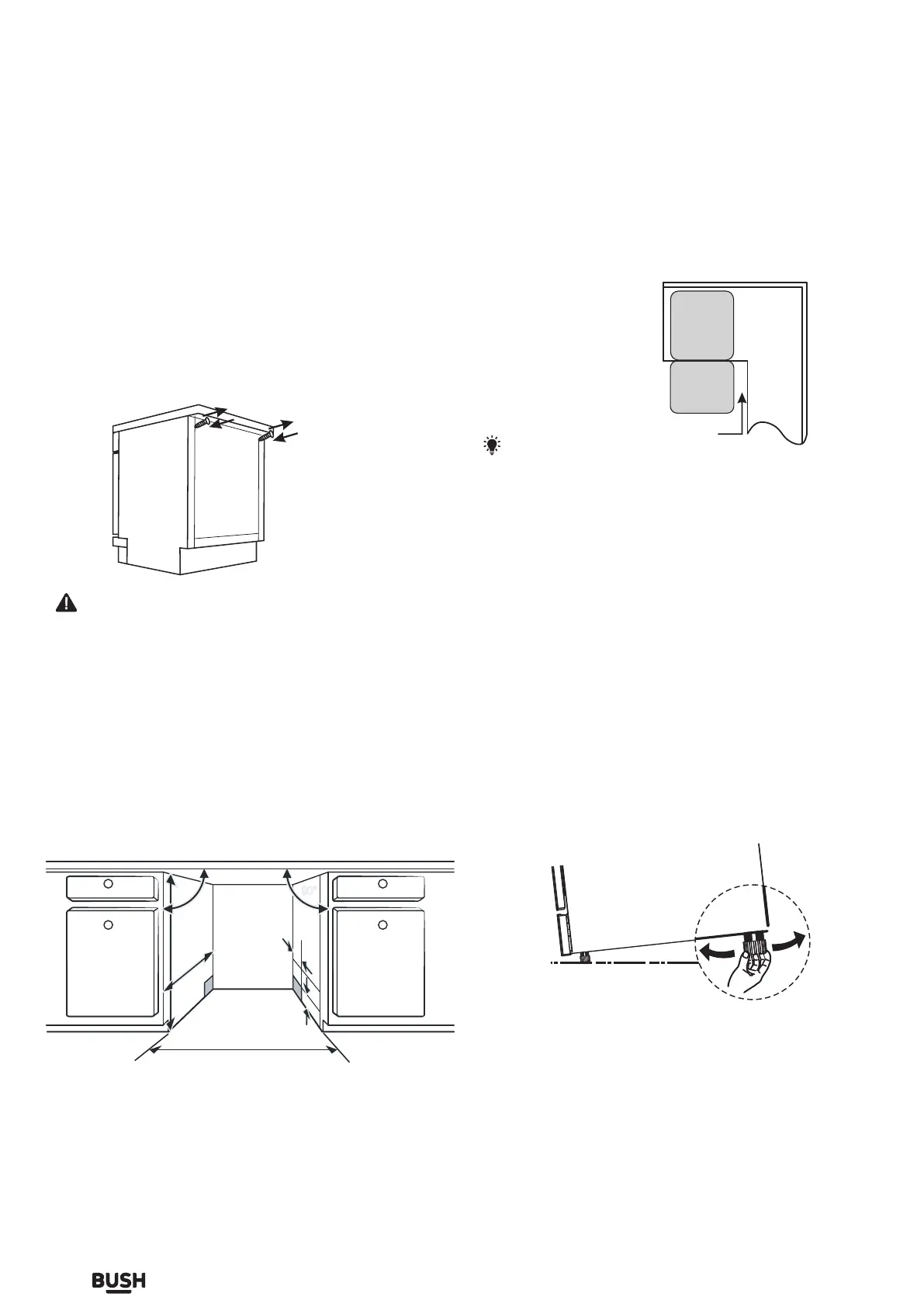

Fitting The Machine Undercounter
In most modern fitted kitchens there is only one
single work top under which cabinets and
electrical appliances are fitted. In this case remove
the work top of the dishwasher by unscrewing
the screws under the rear edge of the top (a).
Attention
After removing the work top, the screws must be screwed
again under the rear edge of the top (b).
a
d
Selecting the best location for the dishwasher
The installation position of the dishwasher should be near
the existing inlet and drain hose and power socket.
Illustrations of cabinet imensions and installation
position of the dishwasher.
3.8
Levelling the appliance
Dishwasher must be level for proper dish rack operation and
wash performance.
Place a spirit level on door and rack track inside the tub as1.
shown to check that the dishwasher is level.
2.Level the dishwasher by adjusting the
four levelling feet on
the base of the dishwasher.
When level the dishwasher, please pay attention not to let
the dishwasher tip over.
3.
