5
EN
If you have damaged or missing parts,
call the Customer Helpline: 0345 257 7271

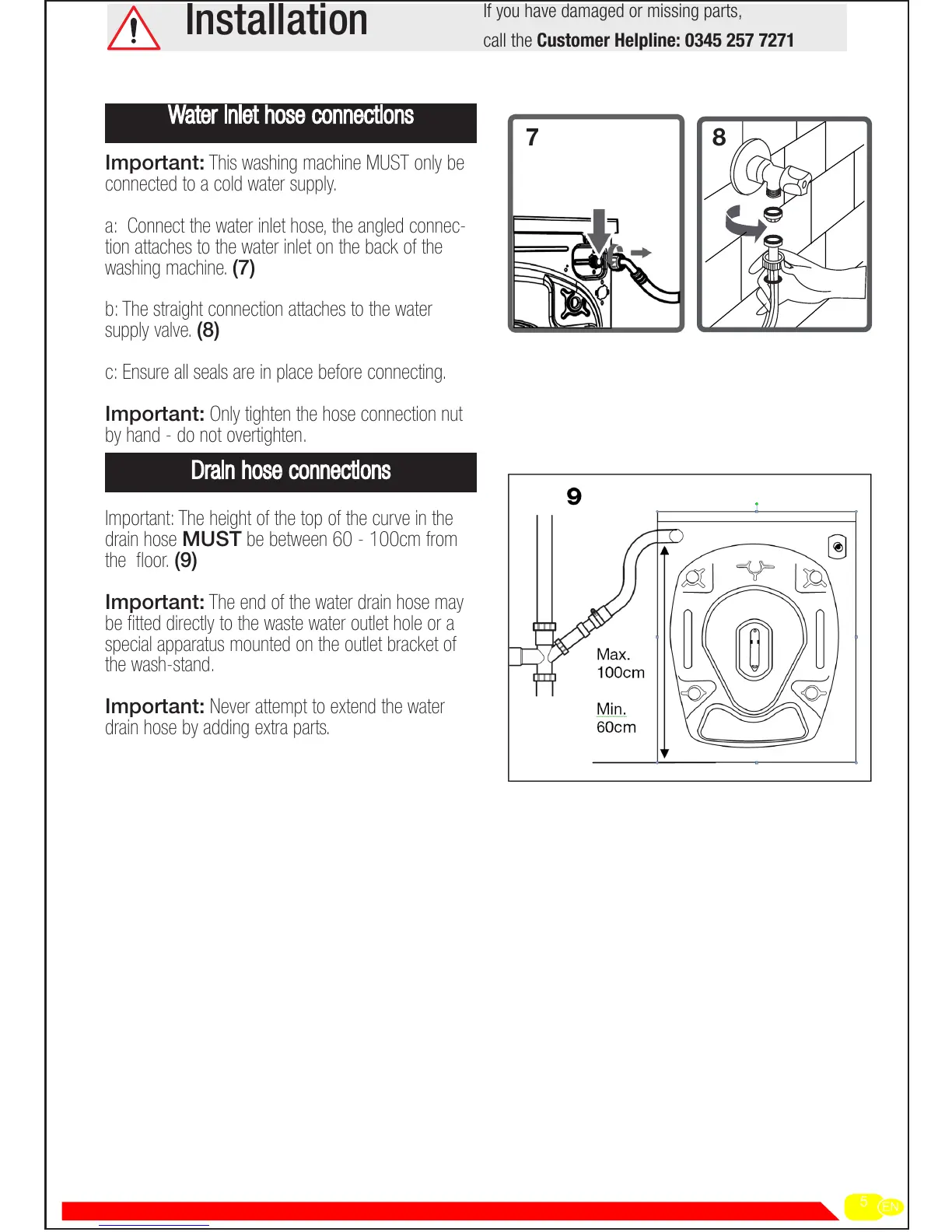

Important: This washing machine MUST only be
connected to a cold water supply.
a: Connect the water inlet hose, the angled connec-
tion attaches to the water inlet on the back of the
washing machine. (7)
b: The straight connection attaches to the water
supply valve. (8)
c: Ensure all seals are in place before connecting.
Important:
by hand - do not overtighten.
Important: The height of the top of the curve in the
drain hose MUST be between 60 - 100cm from
the floor. (9)
Important: The end of the water drain hose may
be fitted directly to the waste water outlet hole or a
special apparatus mounted on the outlet bracket of
the wash-stand.
Important: Never attempt to extend the water
drain hose by adding extra parts.
Installation
87
