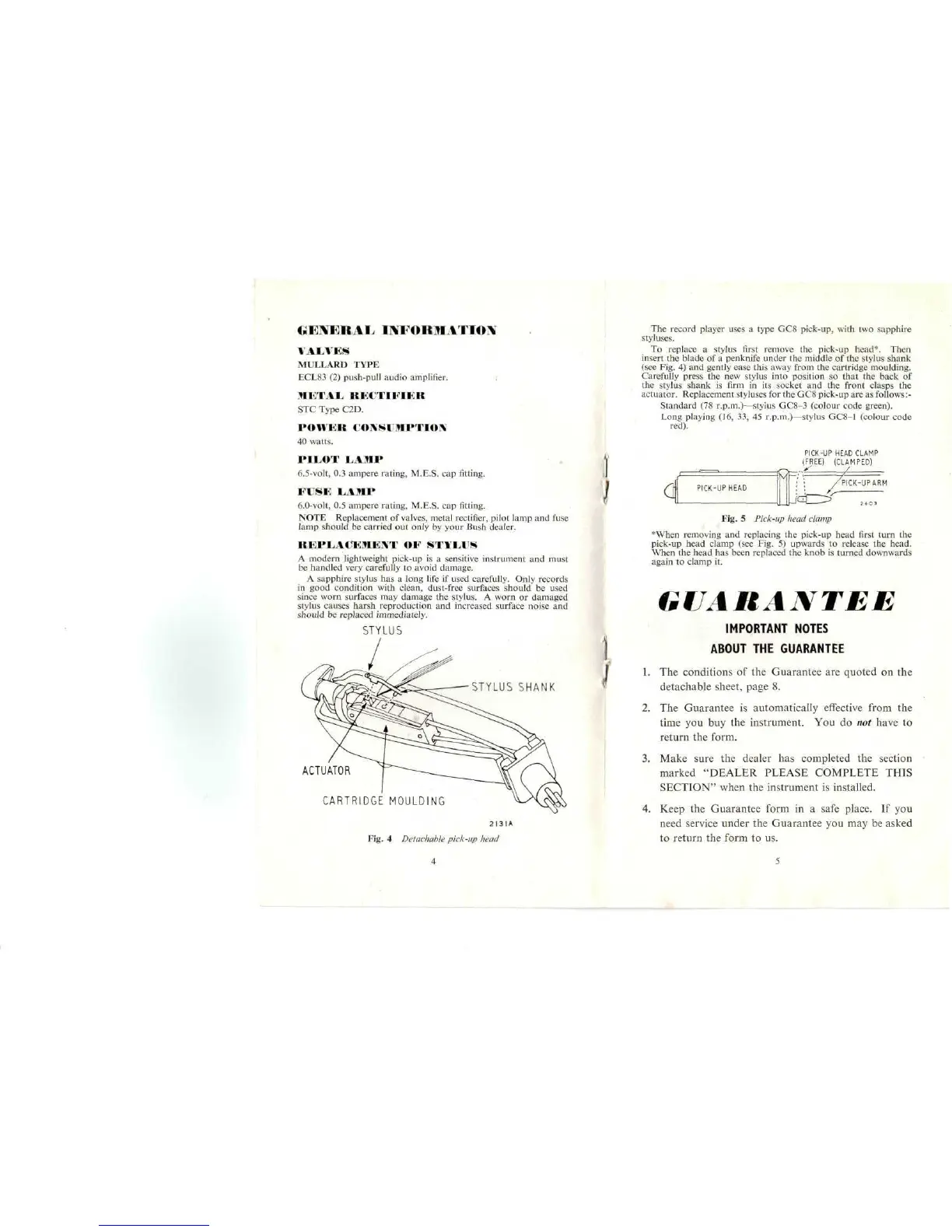

Bush SRP.31 - General Information; Valves; Replacement of Stylus; Guarantee

GENERAL. INFORMATION
VALVES
MULLARD TYPE
ECL83 (2) push-pull audio amplifier.
METAL, RECTIFIER
STC Type C2D.
POWER CONSUMPTION
40 watts.
PILOT LAMP
6.5-volt, 0.3 ampere rating, M.E.S. cap fitting.
FUSE LAMP
6.0-volt, 0.5 ampere rating, M.E.S. cap fitting.
NOTE Replacement of valves, metal rectifier, pilot lamp and fuse
lamp should be carried out only by your Bush dealer.
REPLACEMENT OF STYLUS
A modern lightweight pick-up is a sensitive instrument and must
be handled very carefully to avoid damage.
A sapphire stylus has a long life if used carefully. Only records
in good condition with clean, dust-free surfaces should be used
since worn surfaces may damage the stylus. A worn or damaged
stylus causes harsh reproduction and increased surface noise and
should be replaced immediately.
STYLUS
STYLUS SHANK
J
I
I
ACTUATOR
CARTRIDGE MOULDING
The record player uses a type GC8 pick-up, with two sapphire
styluses.
To replace a stylus first remove the pick-up head*. Then
insert the blade of a penknife under the middle of the stylus shank
(see Fig. 4) and gently ease this away from the cartridge moulding.
Carefully press the new stylus into position so that the back of
the stylus shank is firm in its socket and the front clasps the
actuator. Replacement styluses for the GC8 pick-up are as follows :-
Standard (78 r.p.m.)—stylus GC8-3 (colour code green).
Long playing (16, 33, 45 r.p.m.)—stylus GC8-1 (colour code
red).
cf
PICK-UP HEAD
0
fc
PICK-UP
(FREE)
H£
HEAD CLAMP
(CLAMPED)
— /
/PICK-UP ARM
2I3IA
Fig. 4 Detachable pick-up head
Fig. 5 Pick-up head clamp
*When removing and replacing the pick-up head first turn the
pick-up head clamp (see Fig. 5) upwards to release the head.
When the head has been replaced the knob is turned downwards
again to clamp it.
GUARANTEE
IMPORTANT NOTES
ABOUT THE GUARANTEE
1. The conditions of the Guarantee are quoted on the
detachable sheet, page 8.
2. The Guarantee is automatically effective from the
time you buy the instrument. You do not have to
return the form.
3. Make sure the dealer has completed the section
marked "DEALER PLEASE COMPLETE THIS
SECTION" when the instrument is installed.
4. Keep the Guarantee form in a safe place. If you
need service under the Guarantee you may be asked
to return the form to us.
