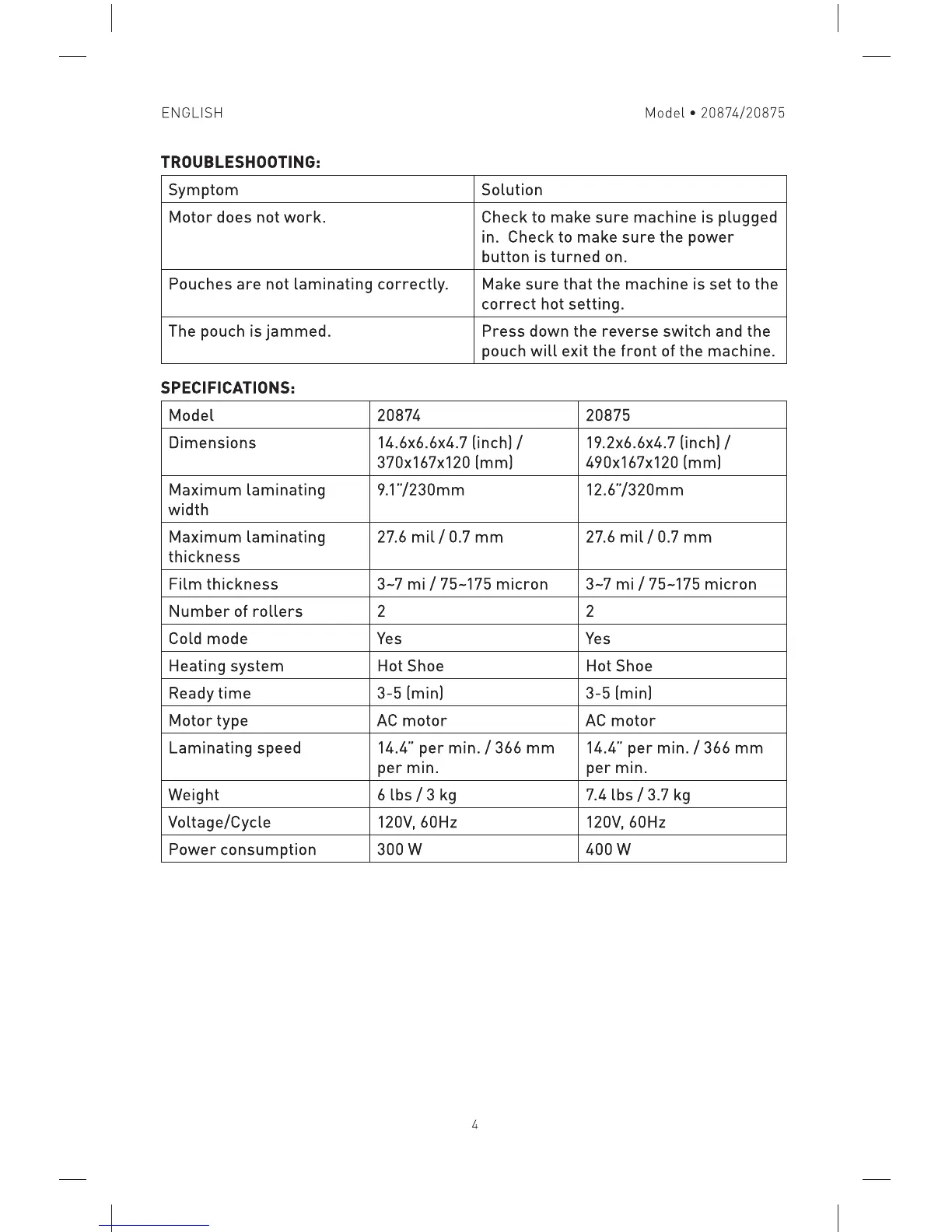

TROUBLESHOOTING:
Symptom Solution
Motor does not work. Check to make sure machine is plugged
in. Check to make sure the power
button is turned on.
Pouches are not laminating correctly. Make sure that the machine is set to the
correct hot setting.
The pouch is jammed. Press down the reverse switch and the
pouch will exit the front of the machine.
SPECIFICATIONS:
Model 20874 20875
Dimensions 14.6x6.6x4.7 (inch) /
370x167x120 (mm)
19.2x6.6x4.7 (inch) /
490x167x120 (mm)
Maximum laminating
width
9.1”/230mm 12.6”/320mm
Maximum laminating
thickness
27.6 mil / 0.7 mm 27.6 mil / 0.7 mm
Film thickness 3~7 mi / 75~175 micron 3~7 mi / 75~175 micron
Number of rollers 2 2
Cold mode Yes Yes
Heating system Hot Shoe Hot Shoe
Ready time 3-5 (min) 3-5 (min)
Motor type AC motor AC motor
Laminating speed 14.4” per min. / 366 mm
per min.
14.4” per min. / 366 mm
per min.
Weight 6 lbs / 3 kg 7.4 lbs / 3.7 kg
Voltage/Cycle 120V, 60Hz 120V, 60Hz
Power consumption 300 W 400 W
