4. Connect wires in order of a, b, c, d:
a. Connect the clamp of anode (red)
jump starting wire to anode
terminal (―+‖) of the depleted
battery.
b. Connect another clamp of anode
(red) starting wire to anode
terminal (―+‖) of the charging
battery.
c. Connect the clamp of cathode
(black) starting wire to cathode
terminal (―-‖) of the charging
battery.
d. Connect the another clamp of
cathode (black) starting wire to a
solid, fixed, unpainted metal
fixation point on the car with
depleted battery.

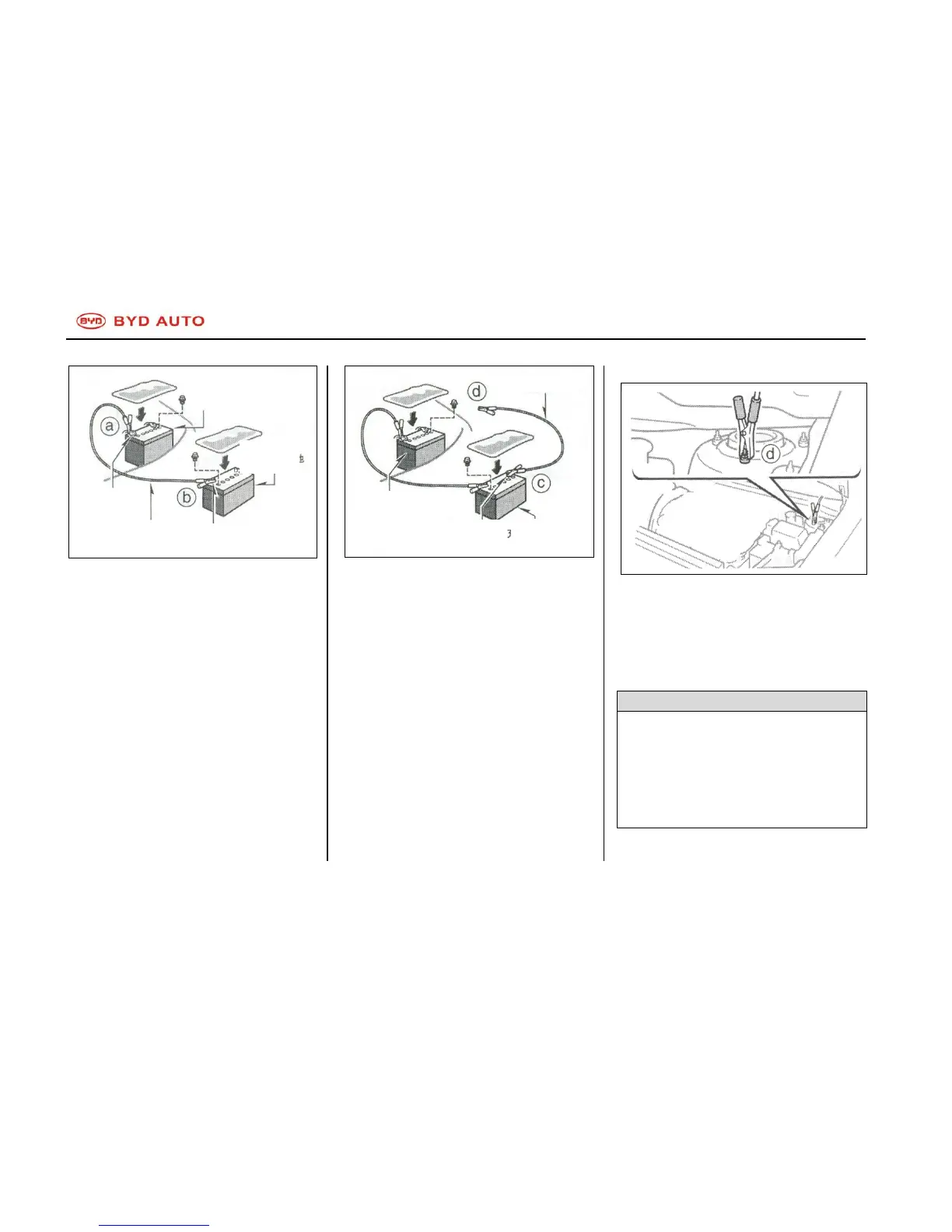

Joint point is shown in the figure
below:
Connection for Jump Starting
For jump starting connection, please
do not leave the starting wire within
action range of any moving part.
To avoid personal injury, while
connecting, please do not lean
against the battery or, by
accident, make the starting wire
or clamp touch any object except
the appointed battery terminal or
ground point.
